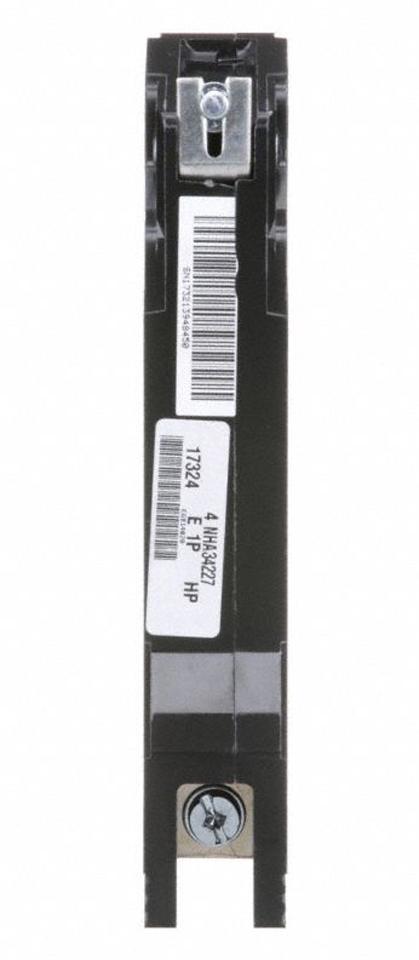

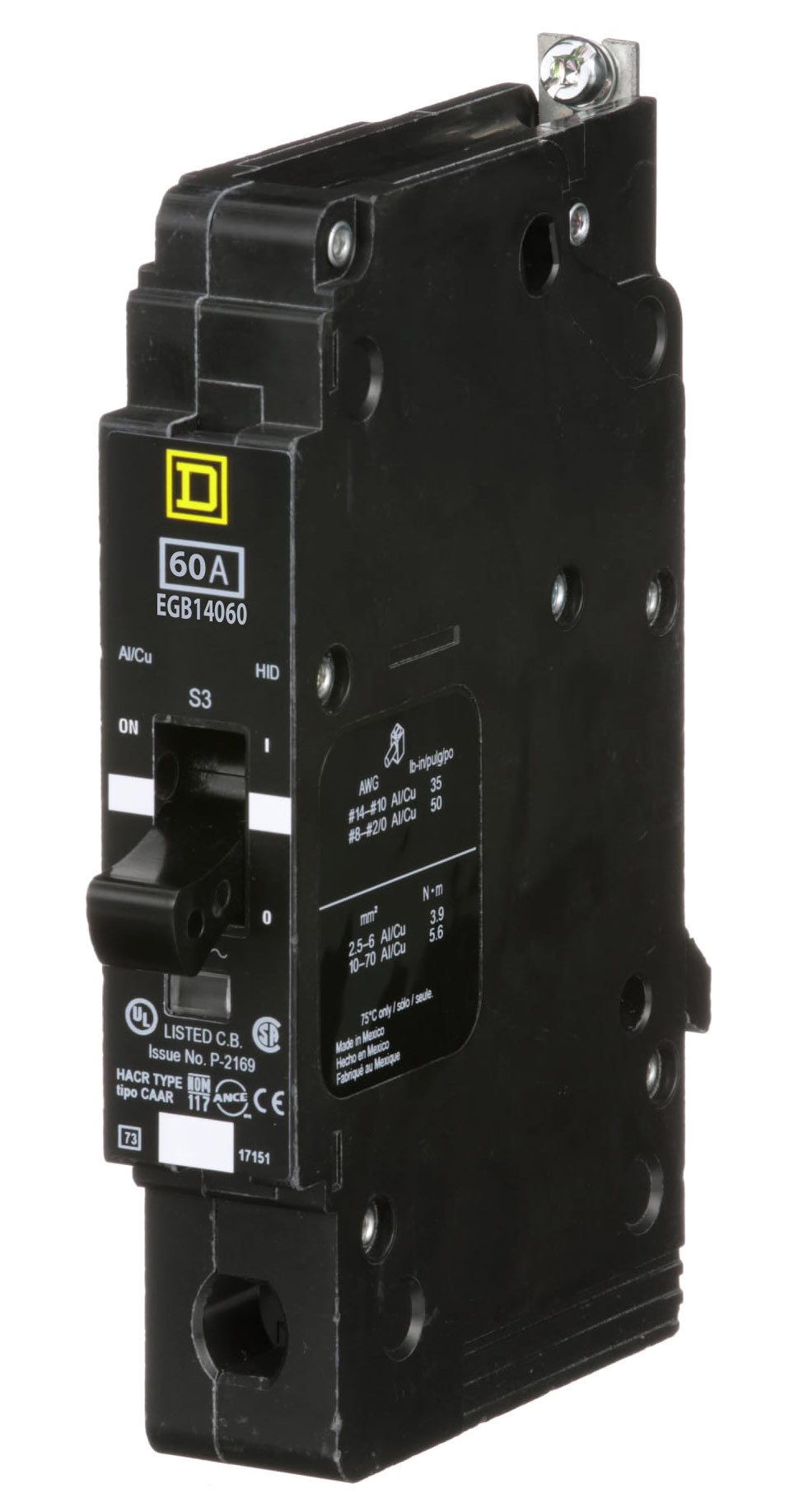

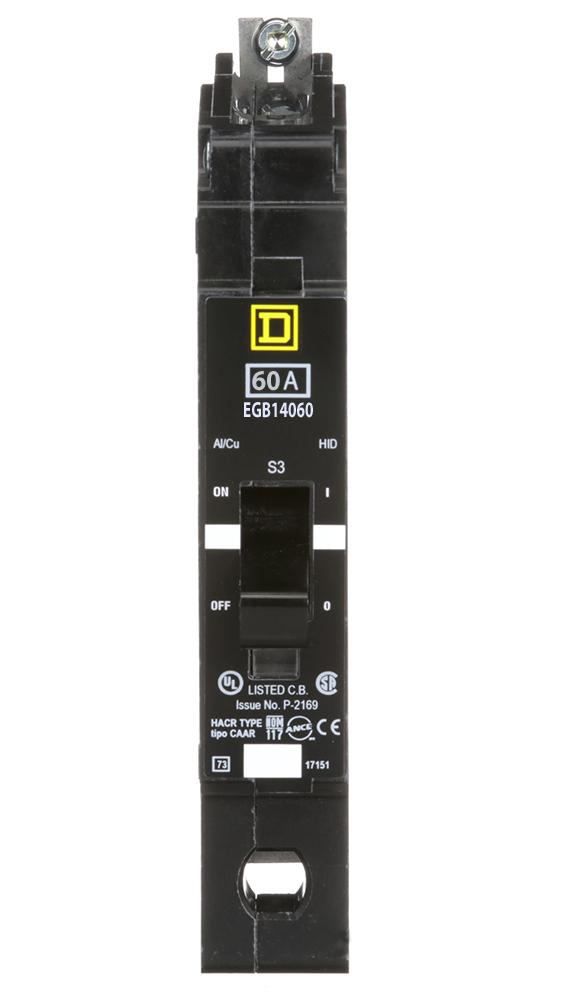

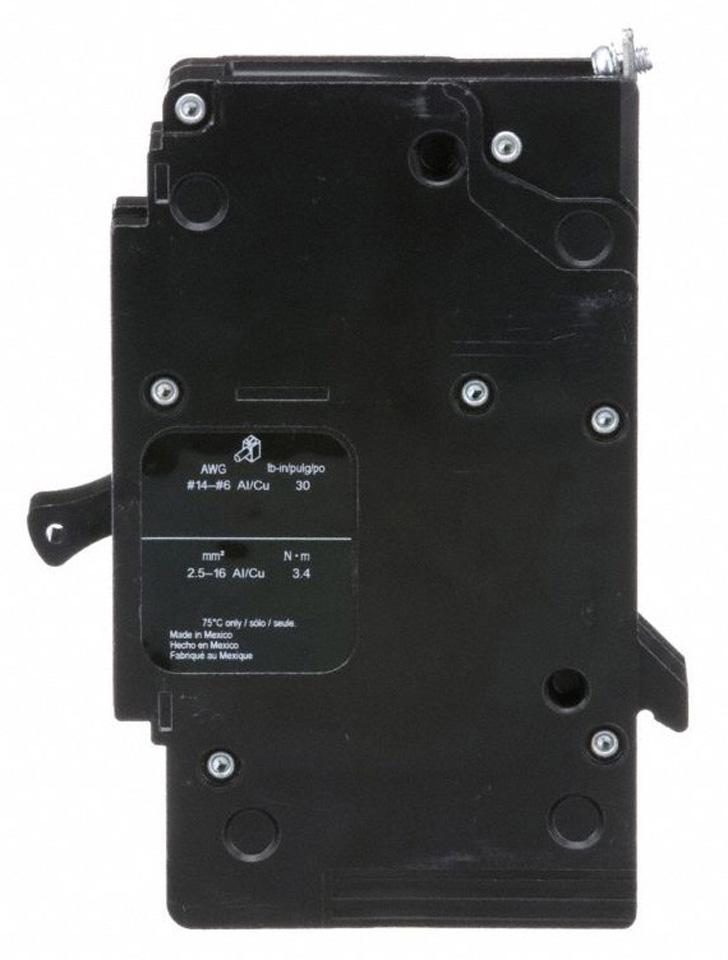

Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)
Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)

Square D EGB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole Bolt-On)

Square D
Price
Save $167.35
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EGB14060 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 60A current rating and a 277V AC voltage rating, housed in a compact, single-pole bolt-on configuration measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.279 lb. The breaker is cULus listed and provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions, capable of interrupting up to 35kA at 480V. It is engineered for operation in temperatures from -25°C to 70°C and is typically applied in NF panelboards for branch circuit protection, compatible with copper or aluminum conductors from AWG 14 to 2/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 60A
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Standards: cULus
  • Applications: Branch circuit protection in NF panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 14 to 2/0, Cu/Al
  • Panel Type: NF panelboard
  • Certification: cULus
  • Family: EGB Series
  • Country of Origin: Mexico
  • Weight: 1.279 lb


Product Identification
  • UPC: 785901128519
  • GTIN: 00785901128519
