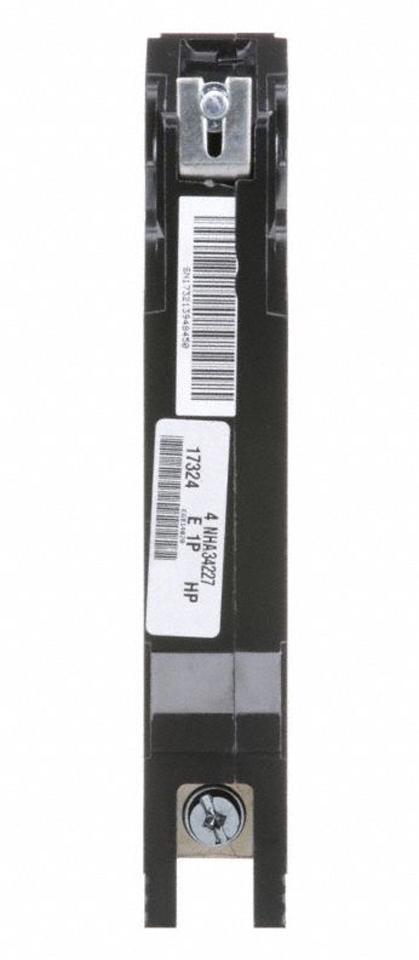

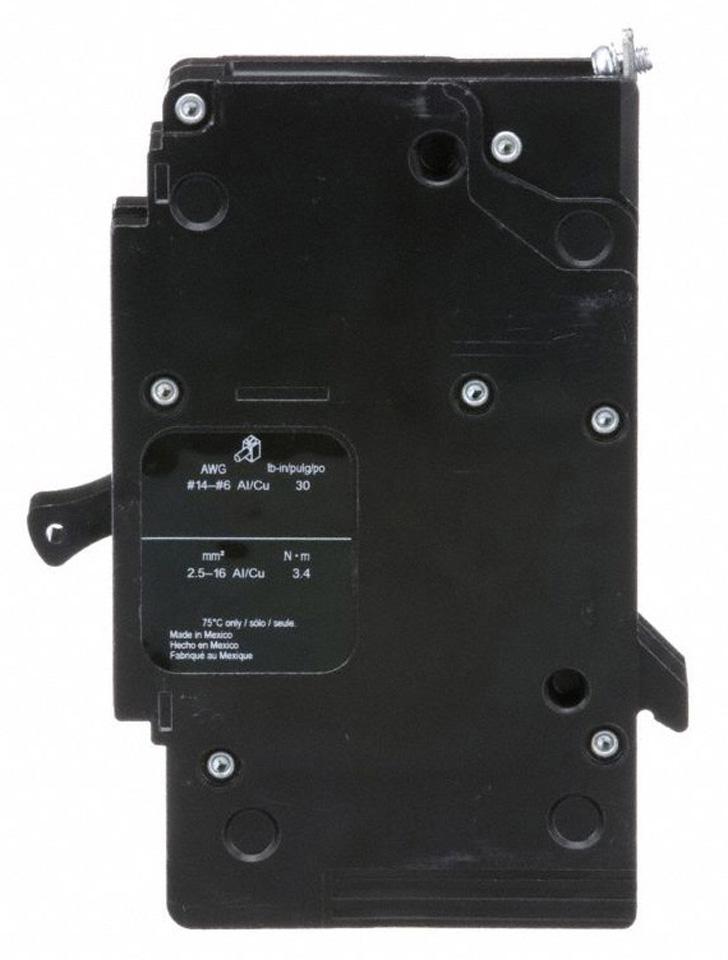

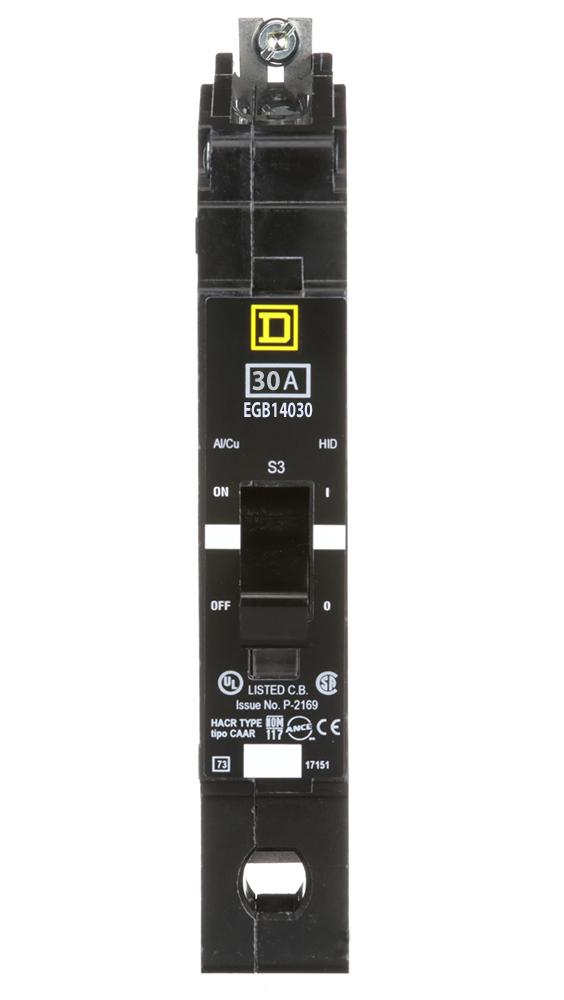

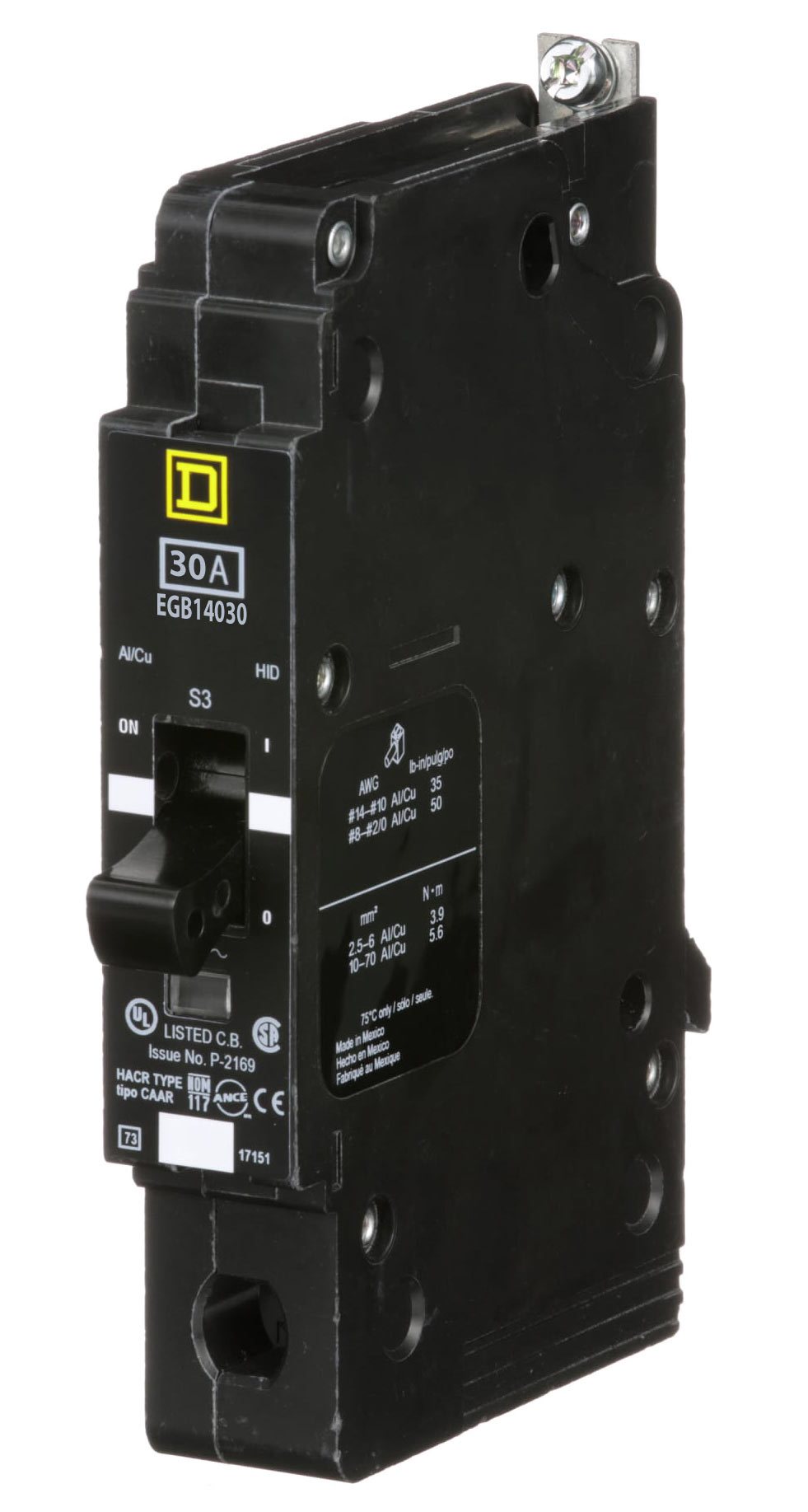

Square D EGB14030 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 30A current rating and a 277V voltage rating, housed within a compact, single-pole bolt-on configuration measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.37 lb. This thermal magnetic breaker is cULus certified for safety and offers an interrupting capacity of 35kA at 480V, with an operational temperature range of -25 to 70 °C. It is engineered for installation in NF panelboards, accommodating wire sizes from 6 to 12 AWG for aluminum and 6 to 14 AWG for copper conductors using lug terminals.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, E-Frame/G Frame Size
  • Voltage Rating: 277V AC
  • Current Rating: 30A
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Standards: cULus
  • Applications: Industrial and Commercial Electrical Distribution, NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: G; E-Frame
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • MCM Size: Min. 12 AWG (Al), 14 AWG (Cu); Max. 6 AWG (Cu/Al)
  • Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
  • Certification: cULus
  • Terminal Connection: Lug
  • Standards: cULus
  • Manufacturer: Schneider Electric
  • Family: EGB Series
  • Country of Origin: Mexico
  • Weight: 1.37 lb


Product Identification
  • UPC: 078590131109
  • GTIN: 00785901311096
