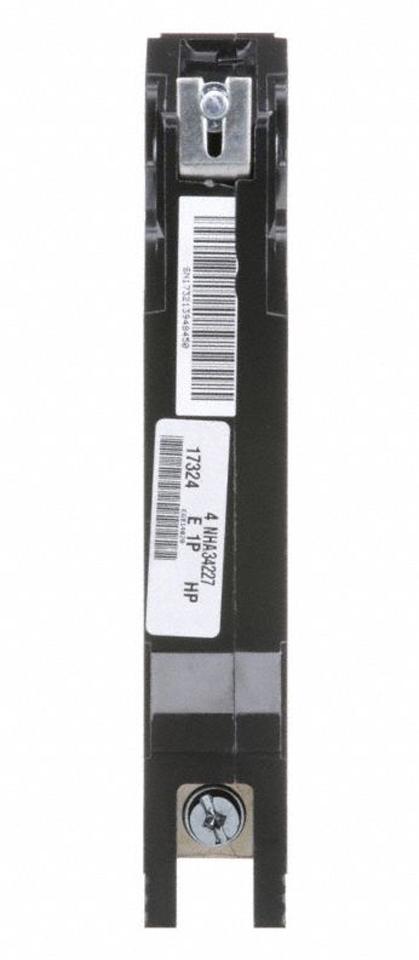

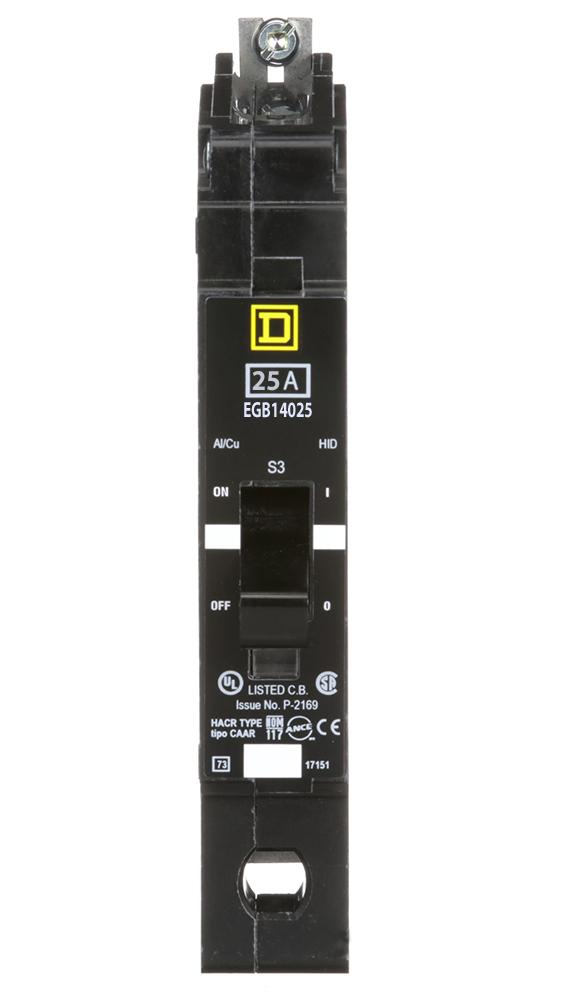

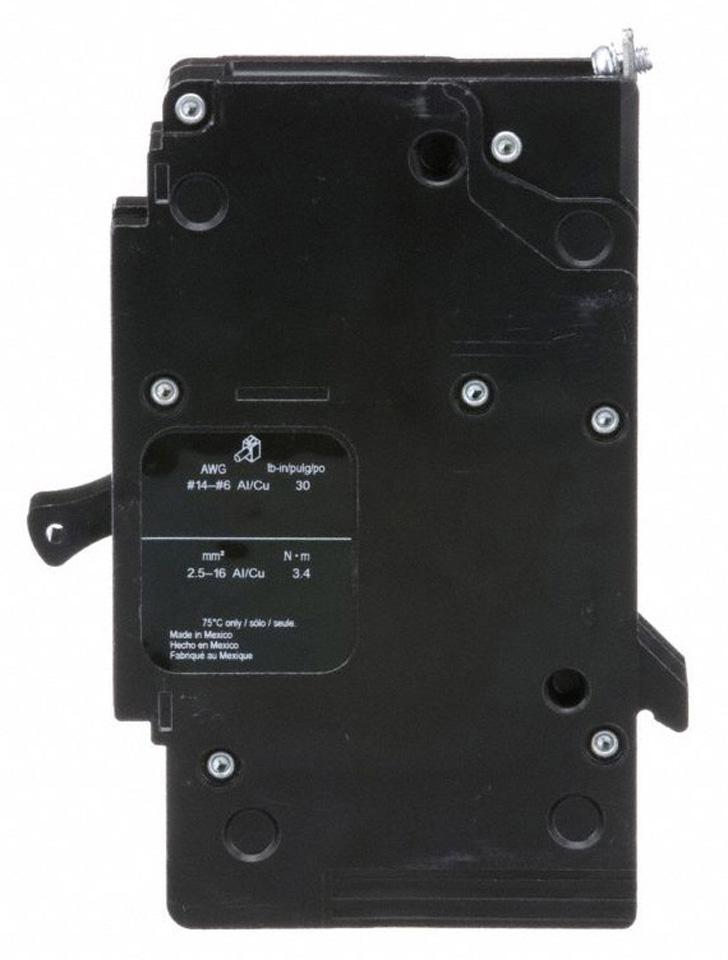

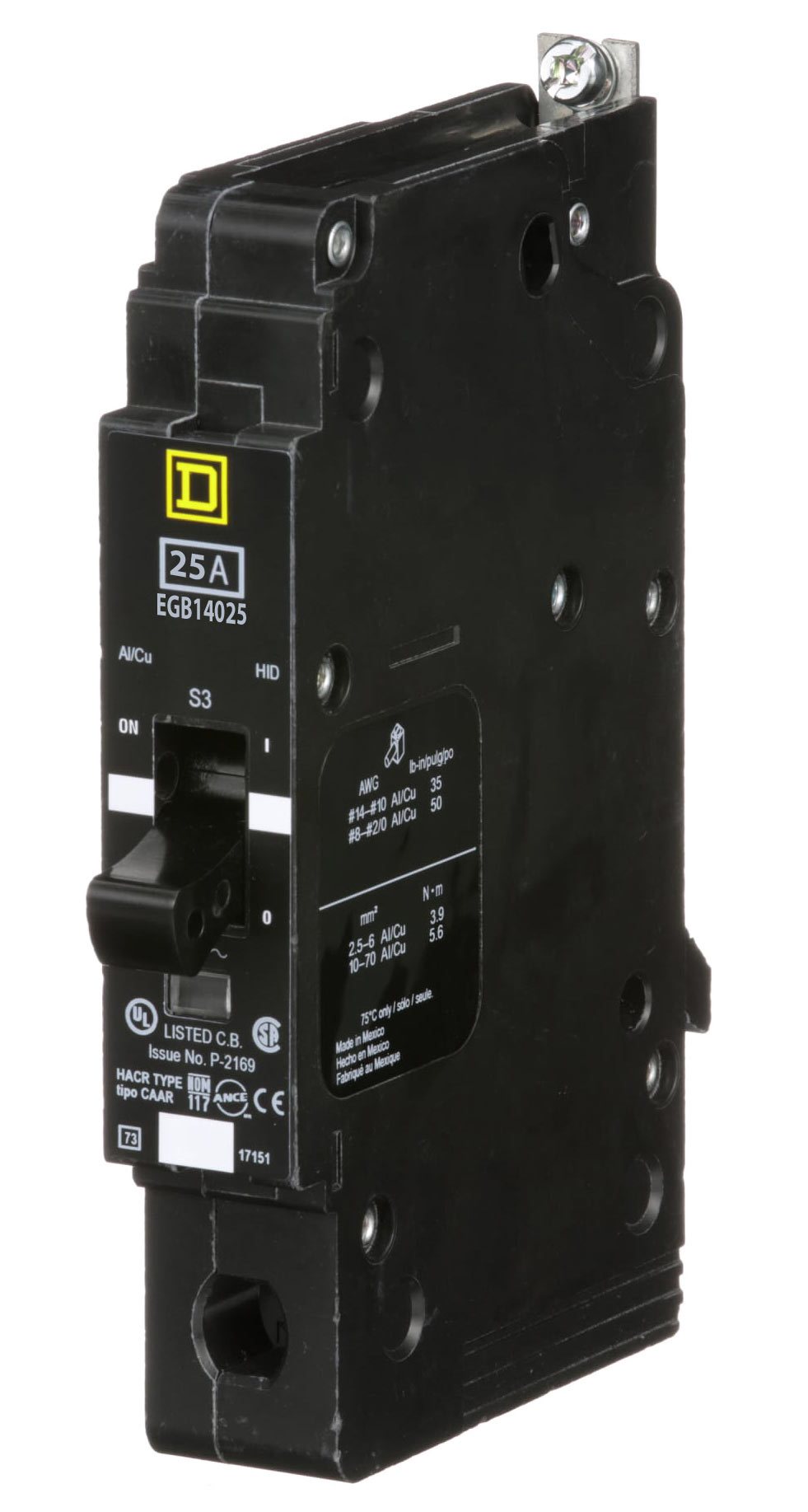

Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)
Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)

Square D EGB14025 - Molded Case Circuit Breaker 25A 277V (35kA AIC)

Square D
Price
Save $151.51
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D EGB14025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 25A current rating and a 277V voltage rating, housed in a compact, single-pole bolt-on configuration measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.35 lb. The breaker is cULus certified and operates on a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, ensuring protection across an operating temperature range of -25 to 70 °C. Its 35kA interrupting capacity at 480V and compatibility with AWG 14 to 6 copper/aluminum conductors make it suitable for installation in NF-style panelboards for lighting and appliance branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 25A
  • Dimensions: 5.66 in (143.76 mm) H x 0.98 in (24.89 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus Certified
  • Applications: Industrial & Commercial Branch Circuit Protection for NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: NF panelboard
  • Breaker Type: EGB
  • Wire Size: AWG 14 to AWG 6, AWG 12 to AWG 6, Cu/Al
  • Certification: cULus
  • Family: EGB Series
  • Country of Origin: Mexico
  • Weight: 1.35 lb


Product Identification
  • UPC: 785901335177
  • GTIN: 00785901335177
