Square D
Price
Save $178.21
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

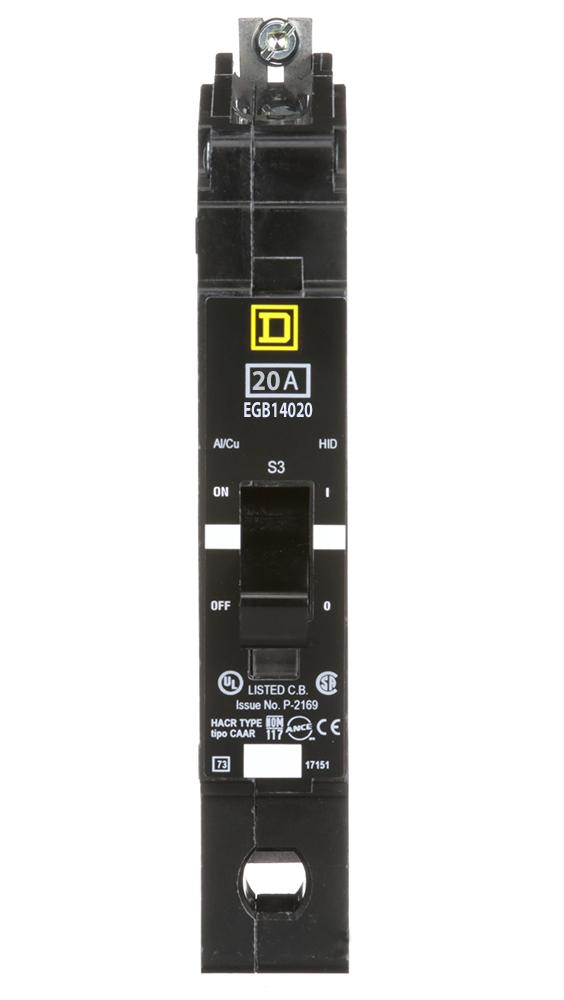

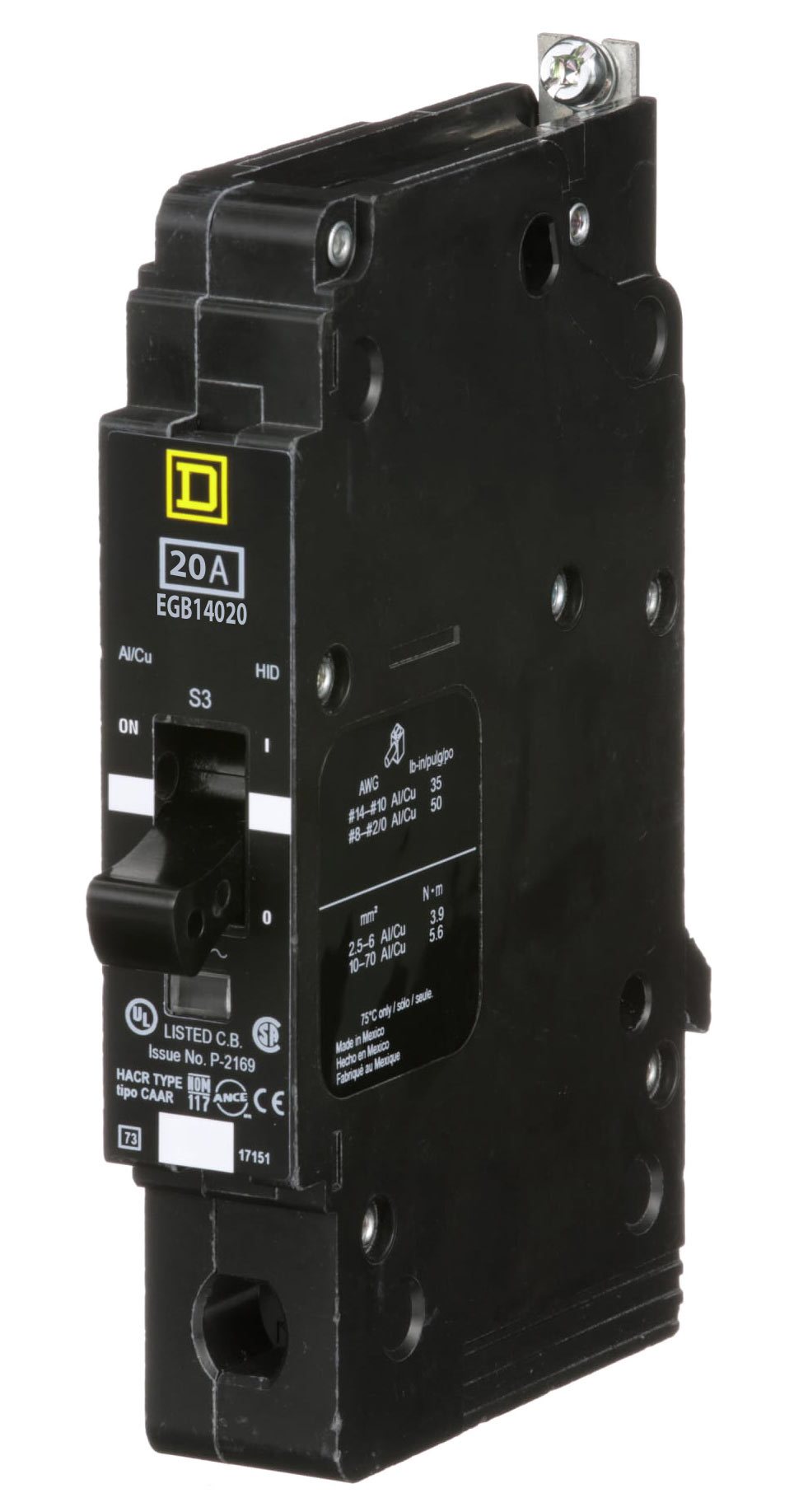

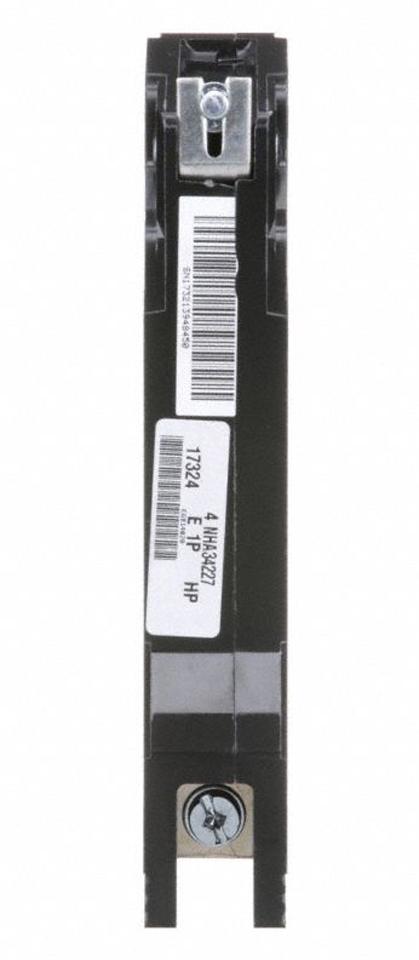

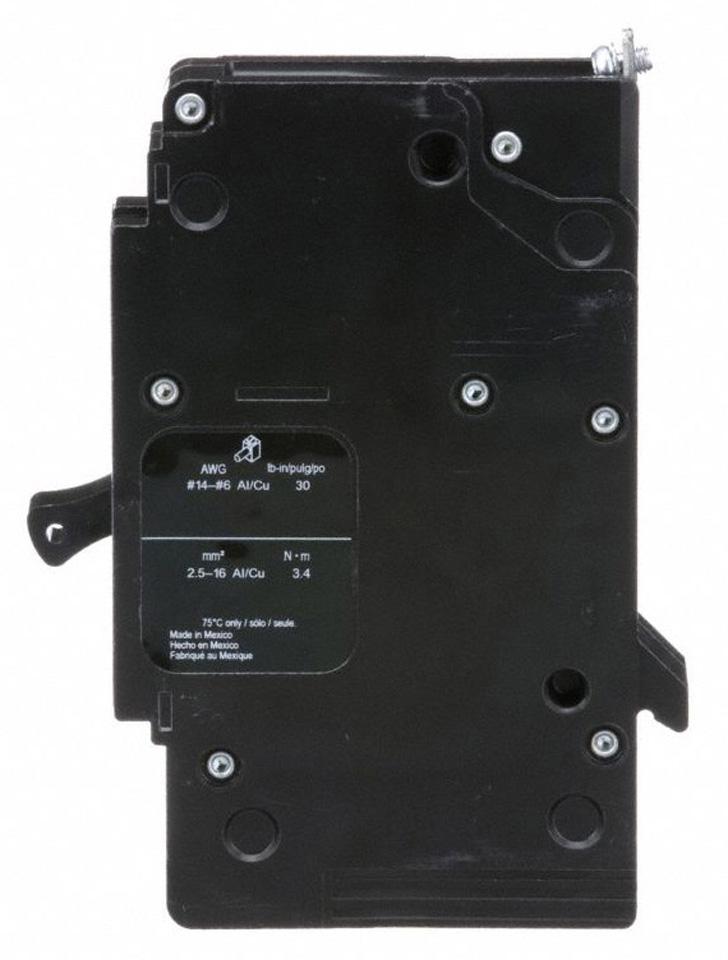

Square D EGB14020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 277V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact E-Frame/G frame size, measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.35 lb, and utilizes a thermal magnetic trip mechanism for combined long-time and instantaneous (LI) protection. It complies with cULus standards and is certified for use in NF panelboards with a bolt-on connection. This breaker is typically applied in lighting and appliance branch circuits, offering an interrupting capacity of 35kA at 480V and operating within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, EGB Series
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 5.66 in (143.76 mm) H x 0.98 in (24.89 mm) W x 4.05 in (102.87 mm) D
  • Weight: 1.35 lb
  • Standards & Certification: cULus
  • Applications: Industrial and commercial branch circuit protection for lighting and appliances in NF panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: G; E-Frame
  • Panel Type: NF panelboard
  • Breaker Type: Molded Case
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG (Cu/Al)
  • Wire Size: AWG 14 to AWG 6, AWG 12 to AWG 6, Copper/Aluminum
  • Terminal Connection: Lug
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901072973
  • GTIN: 00785901072973
