Square D
Price
Save $171.93
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

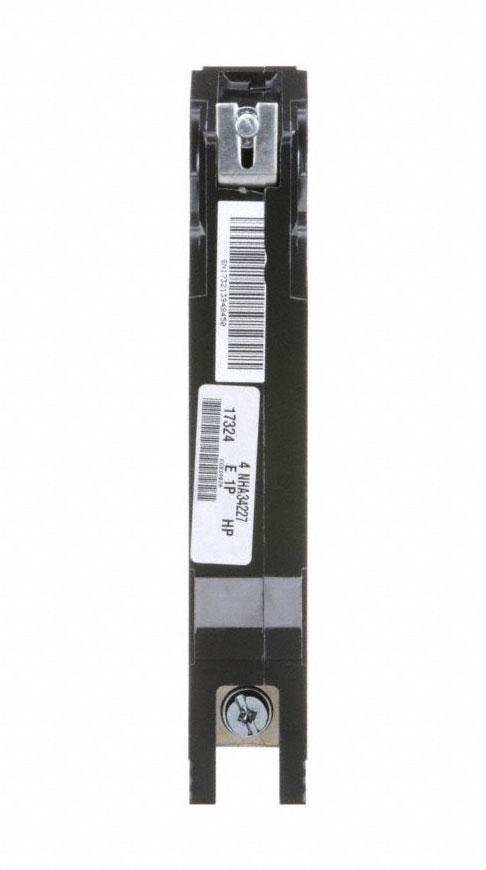

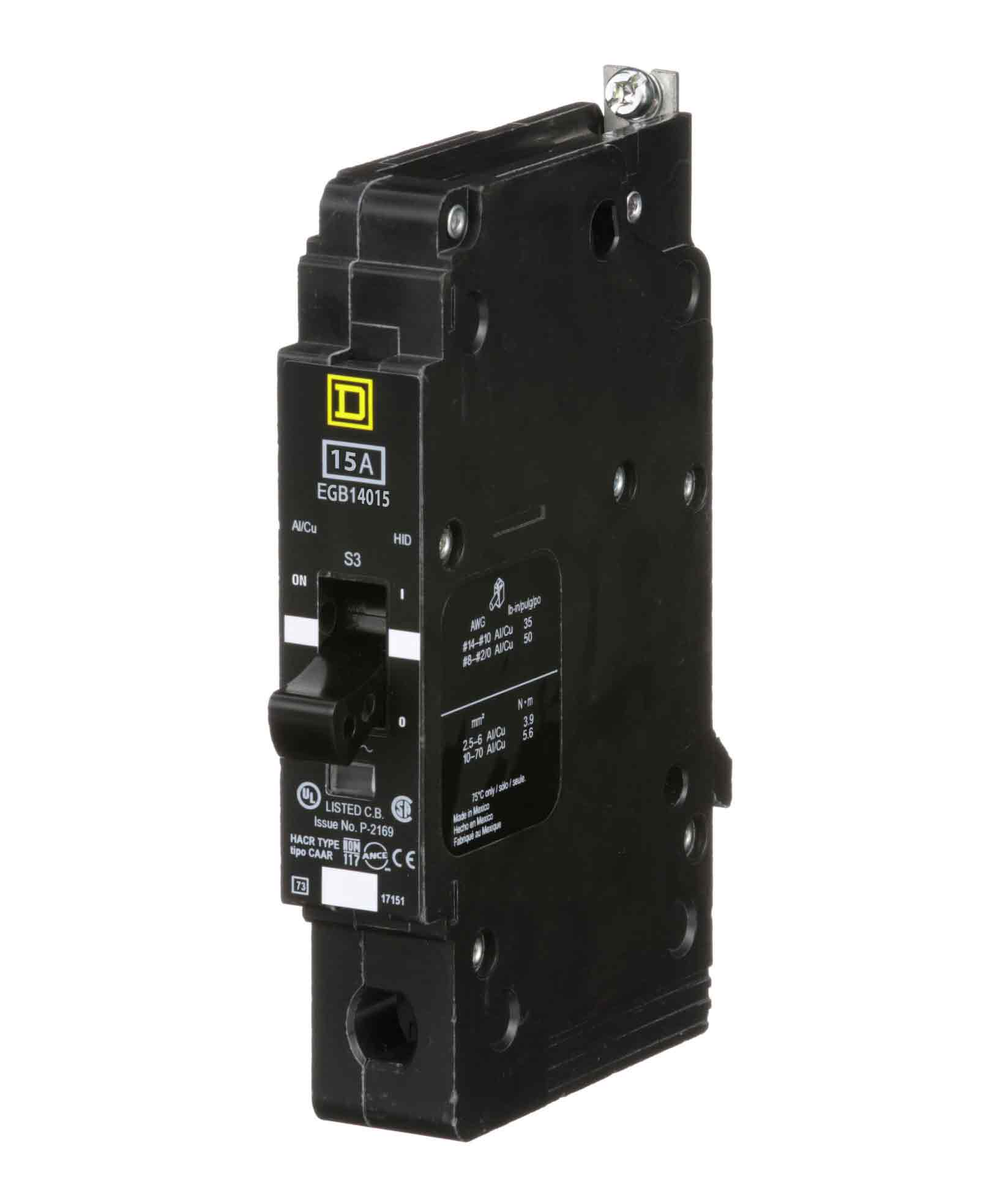

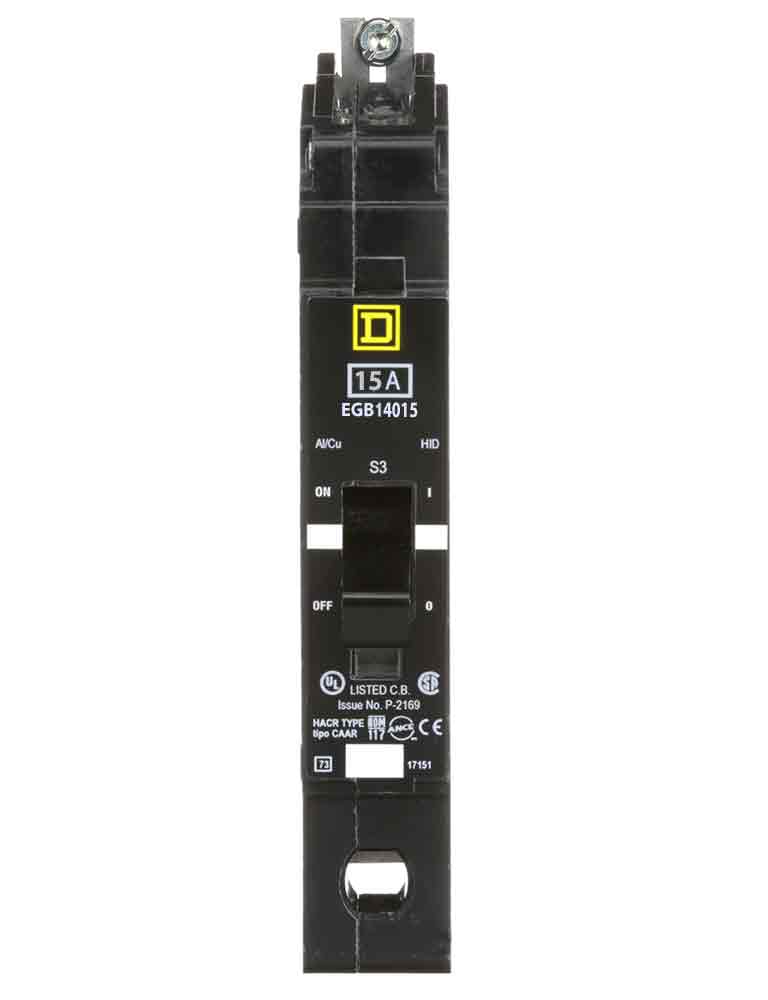

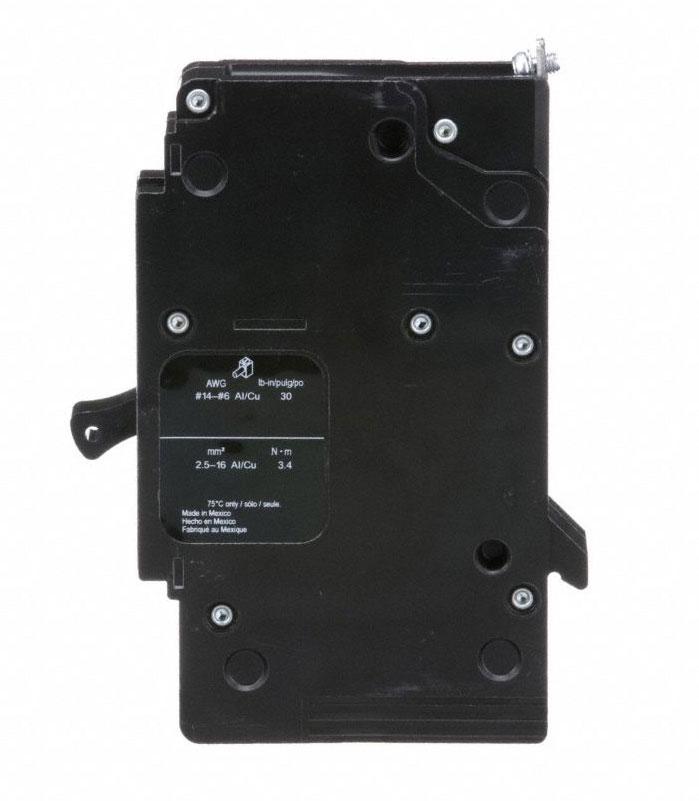

Square D EGB14015 is a molded case circuit breaker designed for providing reliable thermal-magnetic protection against overloads and short circuits in single-phase applications. It is rated for 15A at 277V AC and features a 125A frame with a 35kA interrupting capacity at 480V, housed in a compact bolt-on unit measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.4 lb. This cULus-listed breaker is constructed for NF panelboards and operates reliably across a temperature range of -25 to 70 °C. Its lug terminals accommodate copper or aluminum conductors from AWG 6 to 14, making it suitable for commercial and light industrial electrical distribution systems.

Key Features & Specifications
  • Type: Molded Case, Standard, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Frame Size: 125A/EGB
  • Poles: 1
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Wire Size: AWG 14 to 6 (Cu), AWG 12 to 6 (Al)
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Weight: 1.4 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Panel Type: NF Panelboard
  • Standards & Certification: cULus
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901324980
  • GTIN: 00785901324980
  • Family: EGB Series
