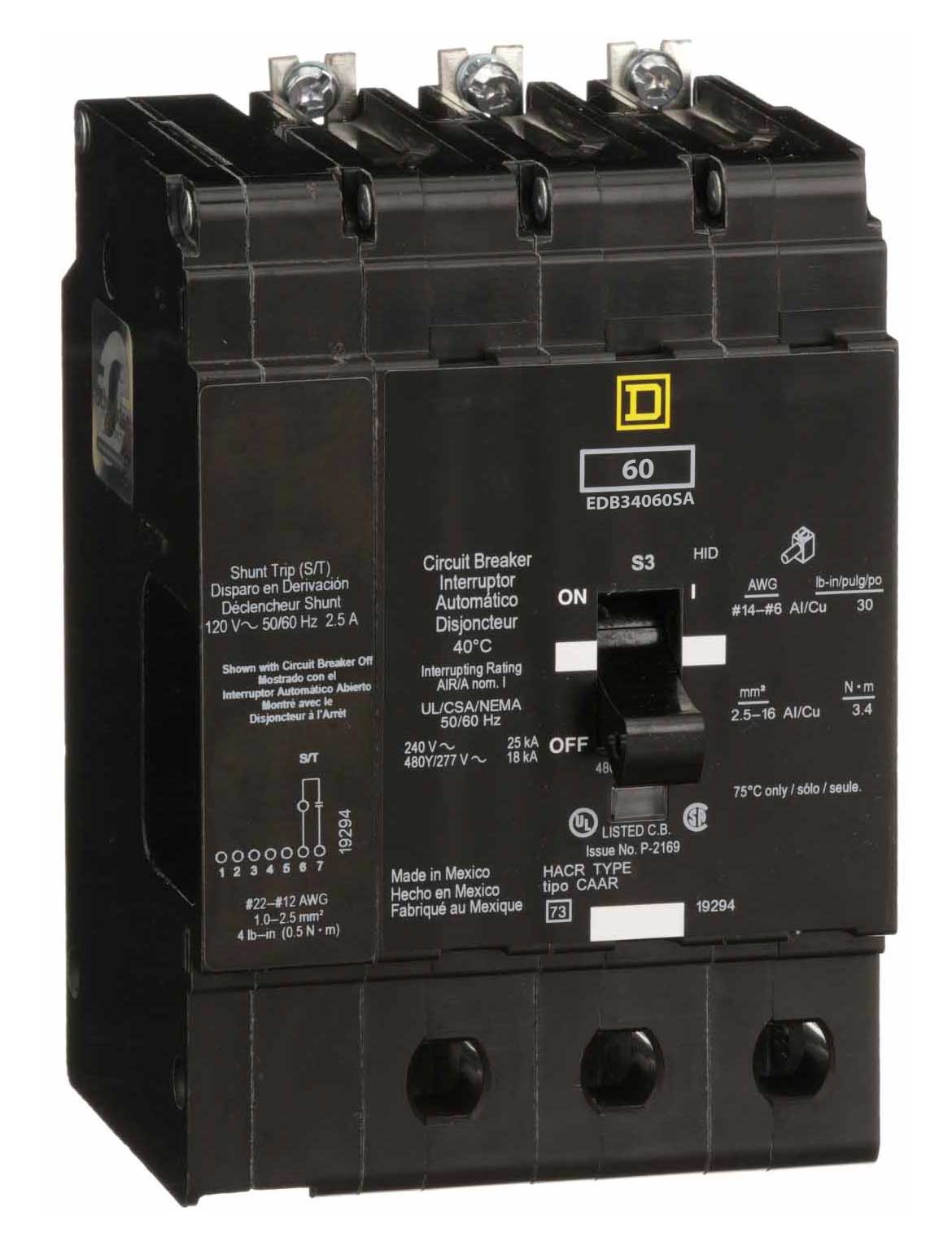

Square D EDB34060SA - 3-Pole 60A Circuit Breaker (18kA AIC)
Square D EDB34060SA - 3-Pole 60A Circuit Breaker (18kA AIC)

Square D EDB34060SA - 3-Pole 60A Circuit Breaker (18kA AIC)

Square D
Price
Save $441.59
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
The Square D EDB34060SA is a three-pole molded case circuit breaker designed for overcurrent protection in three-phase industrial power distribution systems. It features a 60A current rating and a 480Y/277V AC voltage rating, housed within a compact 125A frame with dimensions of 143.76 mm H x 99.57 mm W x 102.87 mm D and a weight of 4.21 lb. This thermal-magnetic trip unit breaker provides both long-time and instantaneous protection, is rated for 18kA interrupting capacity at 480V, and complies with cULus and IEC standards for use in Square D NF panelboards. Its bolt-on connection with lug terminals accommodates wire sizes from AWG 12 to 2/0 aluminum or AWG 14 to 2/0 copper and includes an integrated 120V shunt trip mechanism for remote circuit opening.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker with Thermal-Magnetic Trip and Shunt Trip
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 60A
  • Frame Size: 125A/EDB
  • Poles: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Bolt-On, Lug Terminal
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Protection: Thermal Magnetic (Long Time & Instantaneous Trip)
  • Phase: 3
  • Standards & Certification: cULus, IEC
  • Panel Type: Square D NF Panelboards
  • Dimensions: 143.76 mm H x 99.57 mm W x 102.87 mm D (5.66 in x 3.92 in x 4.05 in)
  • Weight: 4.21 lb
  • Temp Rating: 40 °C (104 °F)
  • Breaker Type: Shunt Trip
  • Coil Voltage: 120V (Shunt Trip)
  • Country of Origin: Mexico
  • Family: EDB Series


Product Identification
  • UPC: 785901129769
  • GTIN: 00785901129769
