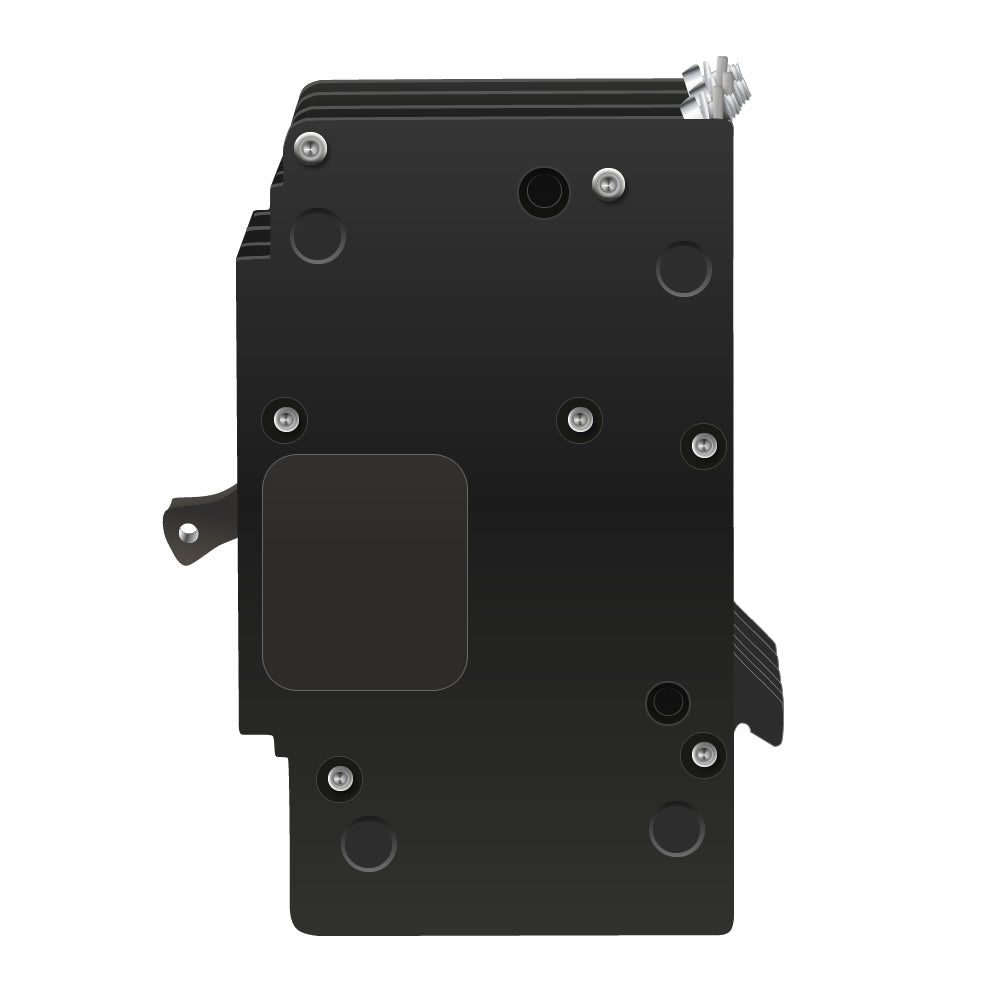

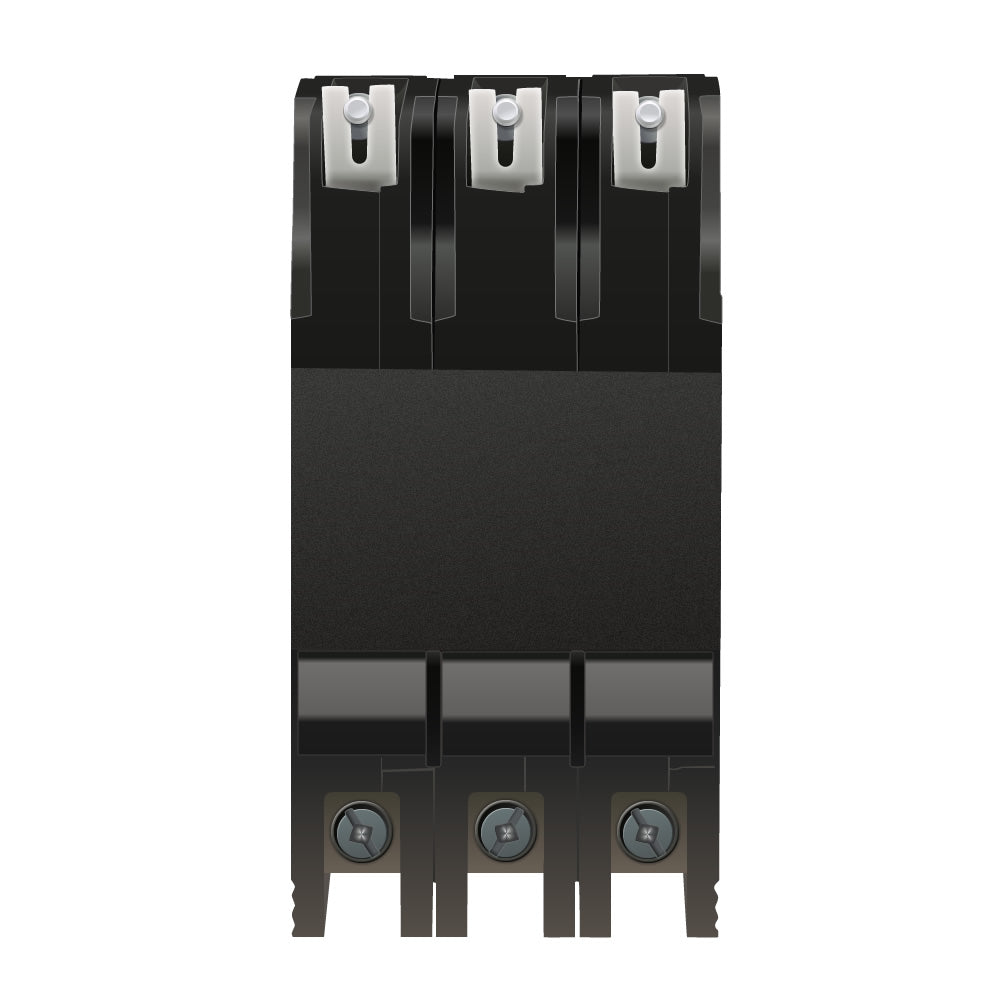

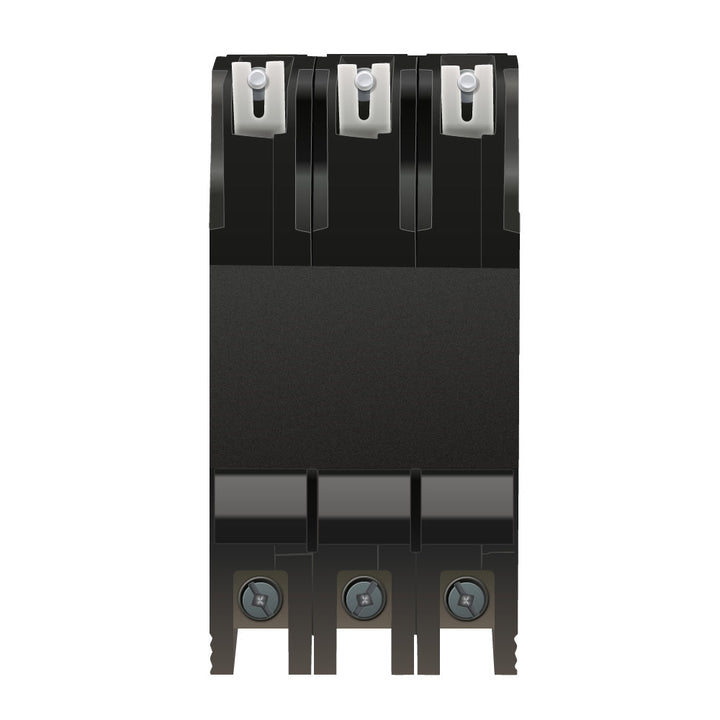

Square D EDB34035 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 35A current rating and a 480Y/277V AC voltage rating, housed within a compact 125A frame with dimensions of 143.76 mm H x 74.68 mm W x 102.87 mm D and a weight of 3.501 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers an interrupting capacity of 18kA at 480V. It is certified to cULus and IEC standards for safety and performance, ensuring compatibility with NF panelboards via its bolt-on connection and lug terminals. Typical applications include protecting feeders and branch circuits in commercial and industrial facilities, supporting wire sizes from AWG 12 to 2/0 for aluminum and AWG 14 to 2/0 for copper, with an operational temperature rating of 40°C.

Key Features & Specifications
  • Type: Three-pole, molded case, thermal-magnetic circuit breaker with bolt-on connection
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 35A
  • Dimensions: 143.76 mm H x 74.68 mm W x 102.87 mm D (5.66 in x 2.94 in x 4.05 in)
  • Standards: cULus, IEC
  • Applications: Feeder and branch circuit protection in industrial and commercial NF panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-pole
  • Temp Rating: 40 °C (104 °F)
  • Phase: 3
  • AIC Rating: 18kA at 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/EDB
  • Panel Type: NF panelboard
  • Breaker Type: Standard
  • MCM Size: Min. 12 AWG (Al), 14 AWG (Cu); Max. 6 AWG
  • Terminal Connection: Lug
  • Wire Size: AWG 12 to AWG 2/0 (Aluminum), AWG 14 to AWG 2/0 (Copper)
  • Certification: cULus, IEC
  • Weight: 3.501 lb


Product Identification
  • UPC: 785901875277
  • GTIN: 00785901875277
