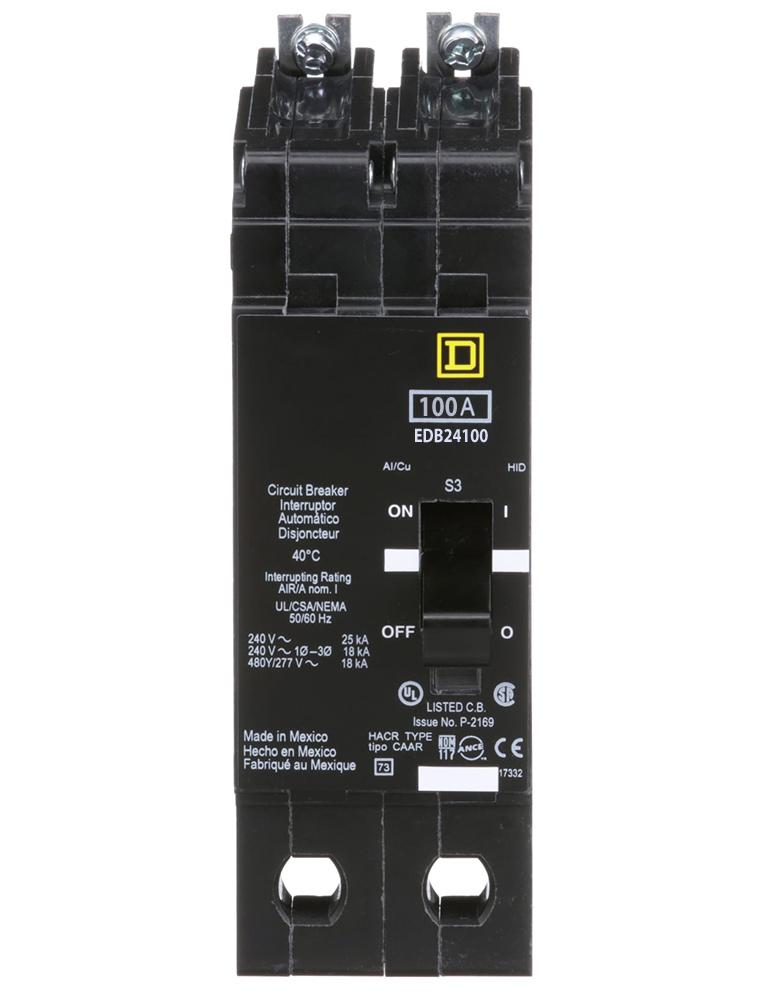

The Square D EDB24100 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for single-phase branch circuits in industrial and commercial electrical systems. It features a 100A continuous current rating and a 480Y/277V AC voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.54 lb. This thermal-magnetic breaker, with an 18kA interrupting rating at 480V, is engineered for compliance with cULus and IEC standards and is typically installed in NF-style panelboards to protect feeders and branch circuits using copper or aluminum conductors from AWG 14 to 2/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip (LI)
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 100A
  • Frame Size: 125A/EDB
  • Poles: 2
  • AIC Rating: 18kA @ 480V AC
  • Connection: Bolt-On, Lug Terminal
  • Phase: 1
  • Wire Size: AWG 12 to 2/0 (Aluminum), AWG 14 to 2/0 (Copper)
  • Dimensions: 5.66 in (143.76 mm) H x 1.96 in (49.78 mm) W x 4.05 in (102.87 mm) D
  • Weight: 2.54 lb
  • Temp Rating: 104 °F (40 °C)
  • Standards & Certification: cULus, IEC
  • Panel Type: NF Panelboard
  • Breaker Type: Standard
  • Functions: Long-Time and Instantaneous Trip (LI)


Product Identification
  • UPC: 785901072928
  • GTIN: 00785901072928
