Square D EDB24090 - Molded Case Circuit Breaker 90A 480V 2-Pole
Square D EDB24090 - Molded Case Circuit Breaker 90A 480V 2-Pole

Square D EDB24090 - Molded Case Circuit Breaker 90A 480V 2-Pole

Square D
Price
Save $855.42
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

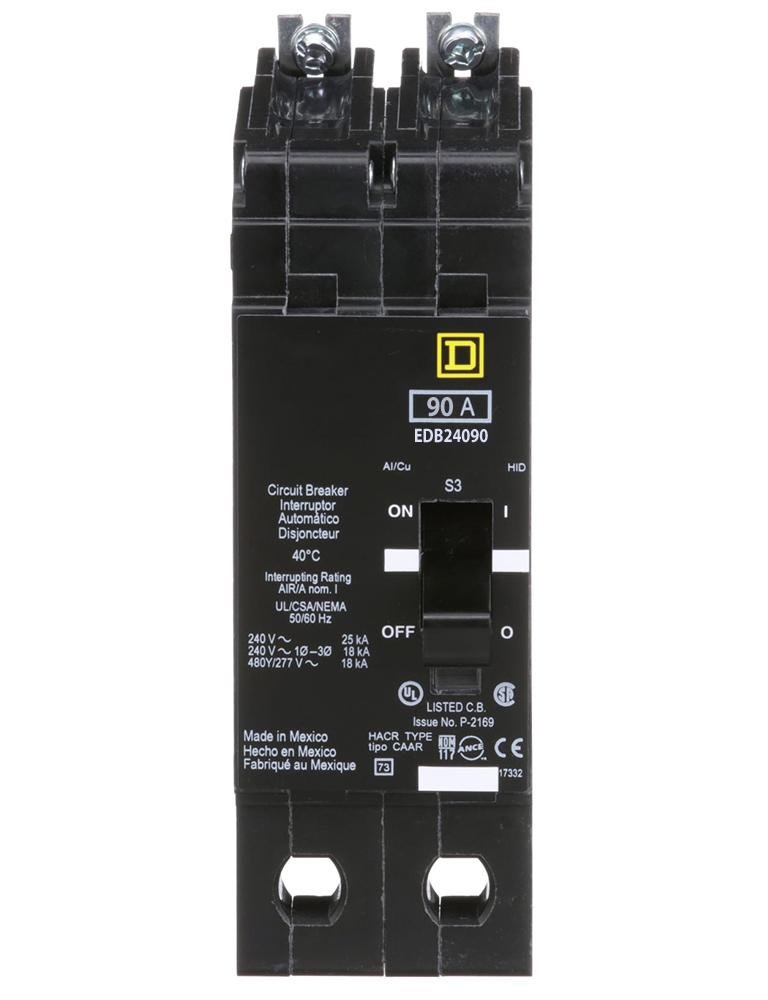

Square D EDB24090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 90A current rating and a 480Y/277V voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 49.78 mm W x 102.87 mm D and weighing 2.45 lb. The breaker is certified to cULus and IEC standards and utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection. It is engineered for installation in NF panelboards, supporting a wide wire range from 12 AWG aluminum to 2/0 AWG copper and offering an interrupting capacity of 18kA at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480Y/277V AC
  • Current Rating: 90A
  • Frame Size: 125A/EDB
  • Poles: 2
  • Connection: Bolt-On, Lug Terminal
  • AIC Rating: 18kA @ 480V
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Wire Size: 12 AWG to 2/0 AWG (Aluminum), 14 AWG to 2/0 AWG (Copper)
  • Panel Type: NF Panelboard
  • Standards & Certification: cULus, IEC
  • Operating Temperature: 40 °C (104 °F) Max
  • Dimensions: 143.76 mm H x 49.78 mm W x 102.87 mm D (5.66 in x 1.96 in x 4.05 in)
  • Weight: 2.45 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901311065
  • GTIN: 00785901311065
