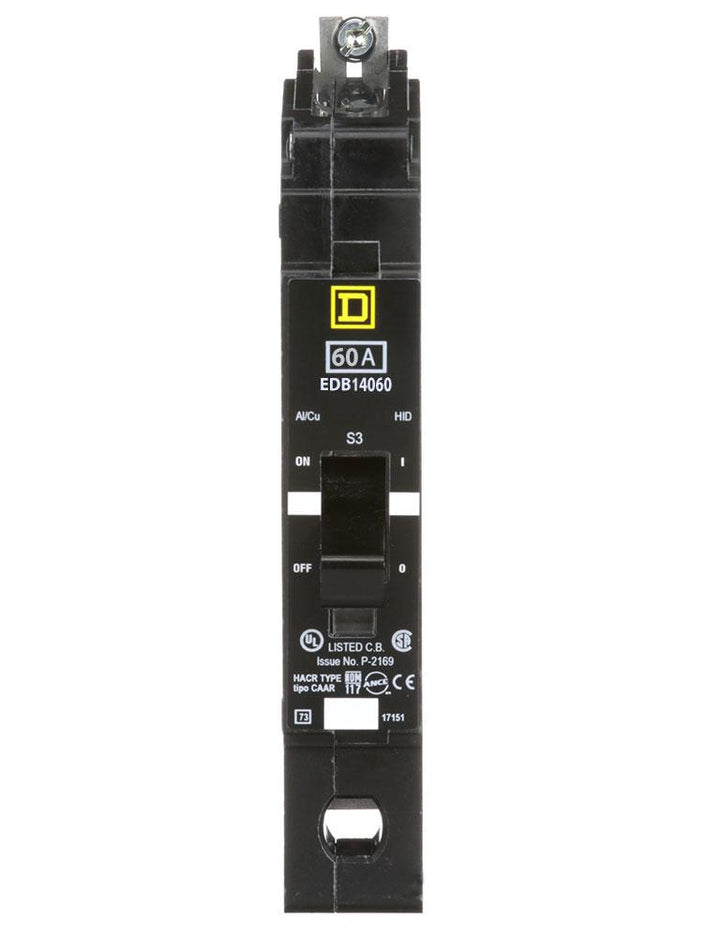

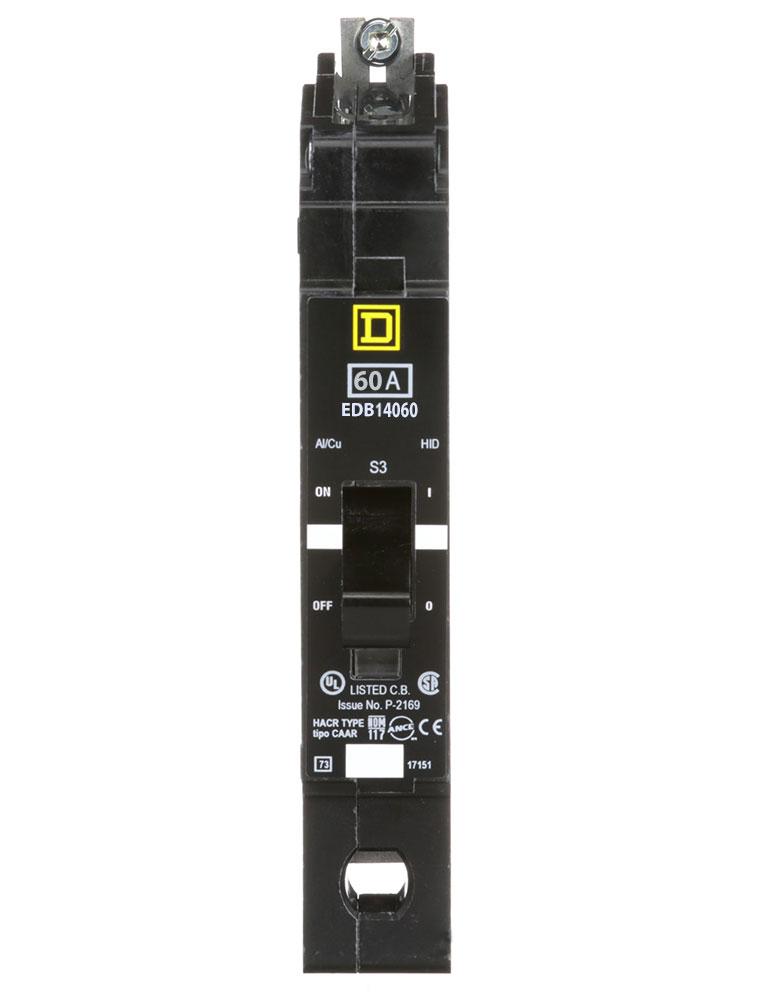

Square D EDB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole)
Square D EDB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole)

Square D EDB14060 - Molded Case Circuit Breaker 60A 277V (1-Pole)

Square D
Price
Save $86.48
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EDB14060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 277V voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.319 lb. This thermal magnetic breaker is cULus and IEC certified, ensuring compliance with key industry safety standards, and is typically applied in single-phase NF panelboards for lighting and appliance branch circuits.

Key Features & Specifications
  • Type: Molded Case, Standard, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 277V AC
  • Current Rating: 60A
  • Frame Size: 125A/EDB
  • AIC Rating: 18kA @ 480V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-On, Lug Terminal
  • Wire Size: Accepts 14 AWG to 2/0 AWG (Copper) or 12 AWG to 2/0 AWG (Aluminum)
  • Standards & Certification: cULus, IEC
  • Panel Type: NF Panelboard
  • Operating Temperature: 40 °C (104 °F)
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Weight: 1.319 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901326434
  • GTIN: 00785901326434
