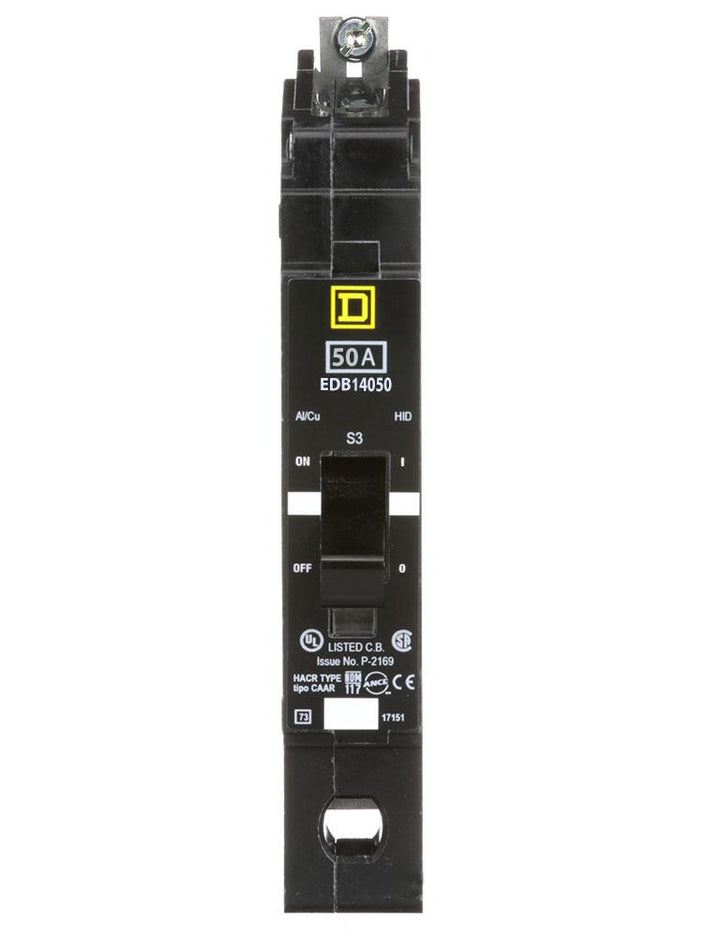

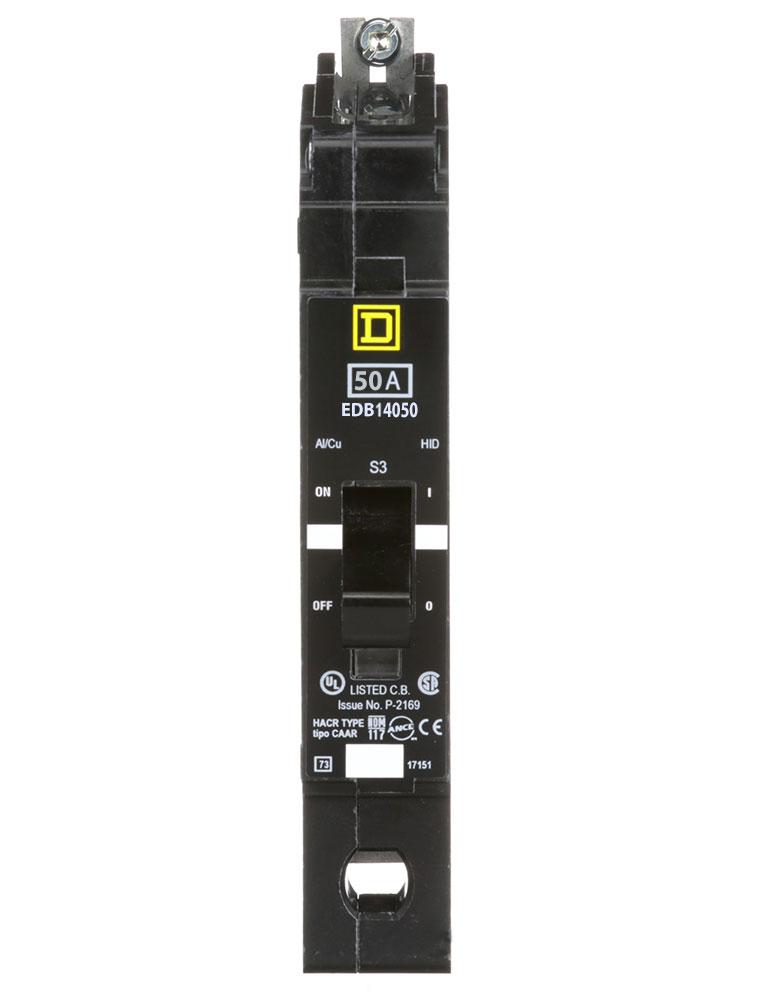

Square D EDB14050 - Molded Case Circuit Breaker 50A 1P
Square D EDB14050 - Molded Case Circuit Breaker 50A 1P

Square D EDB14050 - Molded Case Circuit Breaker 50A 1P

Square D
Price
Save $86.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EDB14050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 50A current rating and a 277V voltage rating, housed within a compact, single-pole bolt-on configuration measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.338 lb. This thermal magnetic breaker is cULus and IEC certified, ensuring compliance with key industry safety standards for use in NF panelboards and similar applications where dependable circuit protection is required.

Key Features & Specifications
  • Type: Molded Case, Standard, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 277V AC
  • Current Rating: 50A
  • Frame Size: 125A/EDB
  • Poles: 1
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • AIC Rating: 18kA @ 480V
  • Phase: 1
  • Wire Size: Accepts AWG 14 to 2/0 (Copper) or AWG 12 to 2/0 (Aluminum)
  • MCM Size: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Dimensions: 5.66 in (143.76 mm) H x 0.98 in (24.89 mm) W x 4.05 in (102.87 mm) D
  • Weight: 1.338 lb
  • Temp Rating: 104°F (40°C)
  • Panel Type: NF Panelboard
  • Standards & Certification: cULus, IEC
  • Family: EDB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901311003
  • GTIN: 00785901311003
