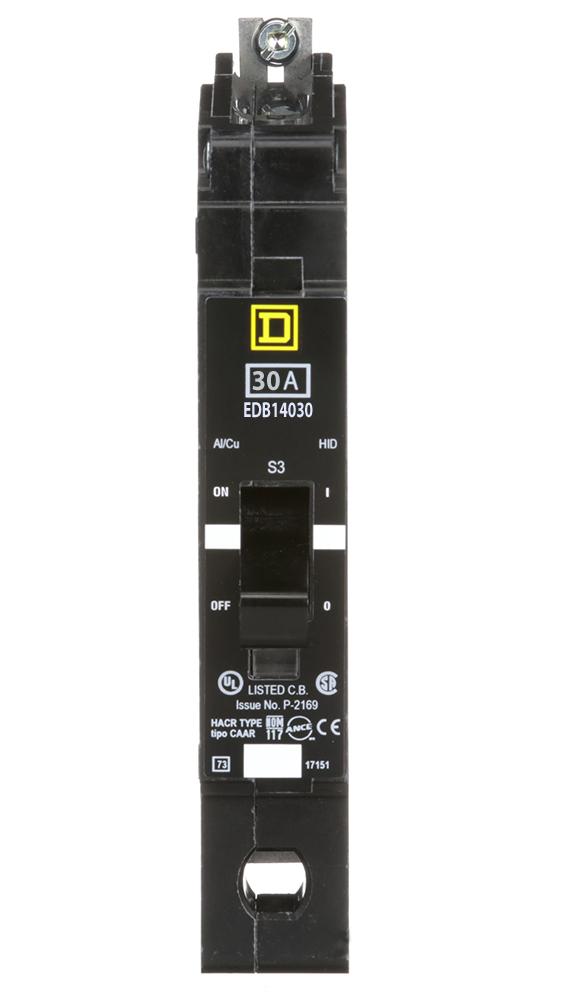

Square D EDB14030 - Molded Case Circuit Breaker 30A 277V (1-Pole)
Square D EDB14030 - Molded Case Circuit Breaker 30A 277V (1-Pole)

Square D EDB14030 - Molded Case Circuit Breaker 30A 277V (1-Pole)

Square D
Price
Save $95.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EDB14030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 30A current rating and a 277V voltage rating, housed within a compact, bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.37 lb. This thermal magnetic breaker is cULus and IEC certified, ensuring compliance with key industry safety standards for use in NF panelboards and similar single-phase applications.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 277V AC
  • Current Rating: 30A
  • Dimensions: 5.66 in (143.76 mm) H x 0.98 in (24.89 mm) W x 4.05 in (102.87 mm) D
  • Standards & Certification: cULus, IEC
  • Applications: NF Panelboards, Industrial & Commercial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: 104 °F (40 °C)
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/EDB
  • Trip Type: Thermal Magnetic
  • Panel Type: NF panelboard
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
  • Family: EDB Series
  • Country of Origin: Mexico
  • Weight: 1.37 lb


Product Identification
  • UPC: 785901878933
  • GTIN: 00785901878933
