Square D EDB14025 - Molded Case Circuit Breaker 25A 1P (18kA AIC)
Square D EDB14025 - Molded Case Circuit Breaker 25A 1P (18kA AIC)

Square D EDB14025 - Molded Case Circuit Breaker 25A 1P (18kA AIC)

Square D
Price
Save $80.55
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

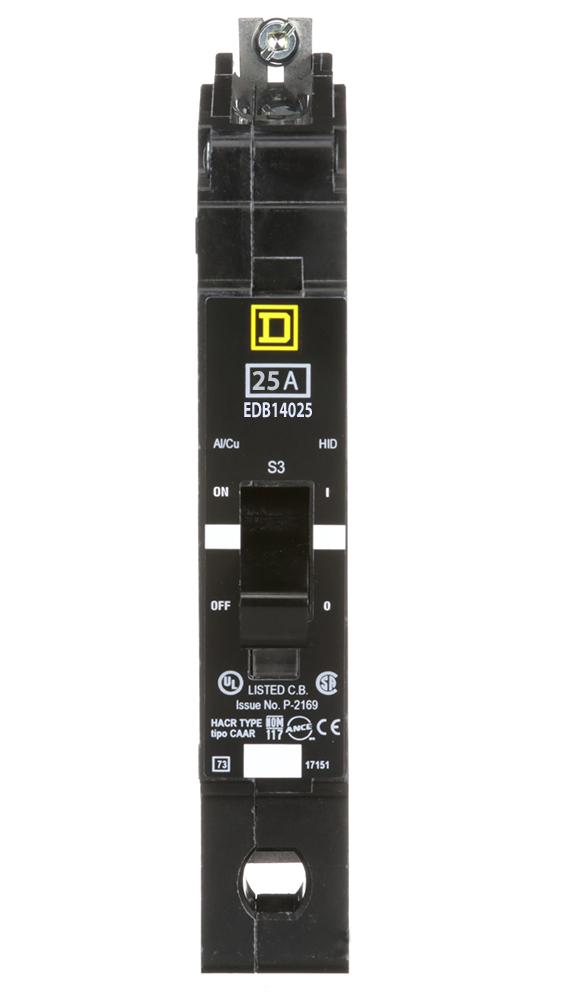

Square D EDB14025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 25A current rating and a 277V voltage rating, housed within a compact, single-pole bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.36 lb. This thermal magnetic breaker is certified to cULus and IEC standards, offering an interrupting capacity of 18kA at 480V for robust fault protection. Its typical applications include lighting and appliance branch circuits within NF-style panelboards, operating effectively in ambient temperatures up to 40°C (104°F) and accommodating copper or aluminum conductors from AWG 6 to AWG 14.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 25A
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Standards: cULus, IEC
  • Applications: Lighting and Appliance Branch Circuits, NF Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On, Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 125A/EDB
  • Panel Type: NF Panelboard
  • Breaker Type: Standard
  • Temp Rating: 40 °C (104 °F)
  • MCM Size: Wire Size 6 AWG (Max), 12 AWG Al / 14 AWG Cu (Min)
  • Wire Size: AWG 14 to AWG 6 (Cu), AWG 12 to AWG 6 (Al)
  • Certification: cULus, IEC
  • Mounting: Panel Mount
  • Enclosure: Molded Case
  • Family: EDB Series


Product Identification
  • UPC: 785901072904
  • GTIN: 00785901072904
