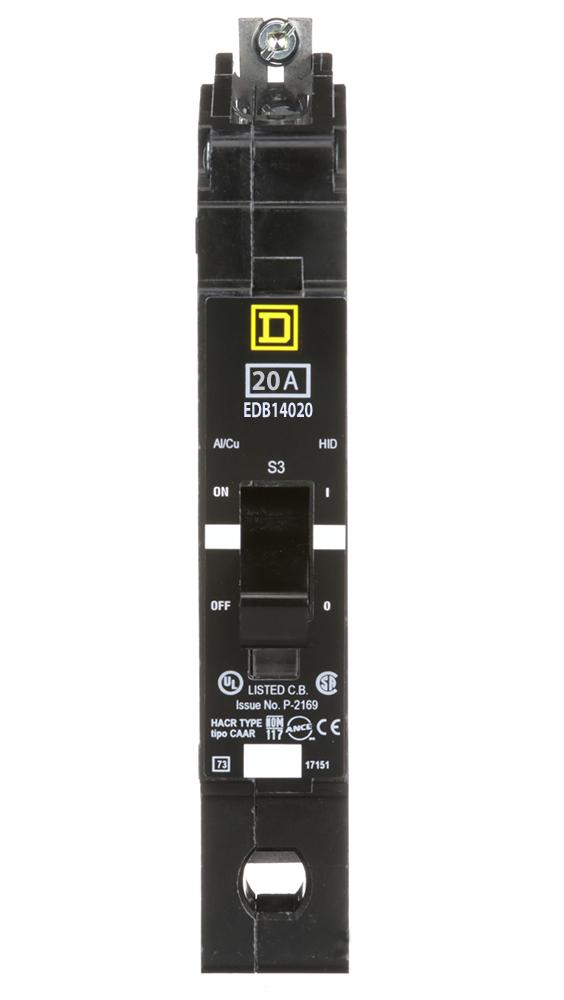

Square D EDB14020 - Molded Case Circuit Breaker 20A 1P 277V

Price
Regular price $48.63
Regular price $150.00 Sale price $48.63
Save $101.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

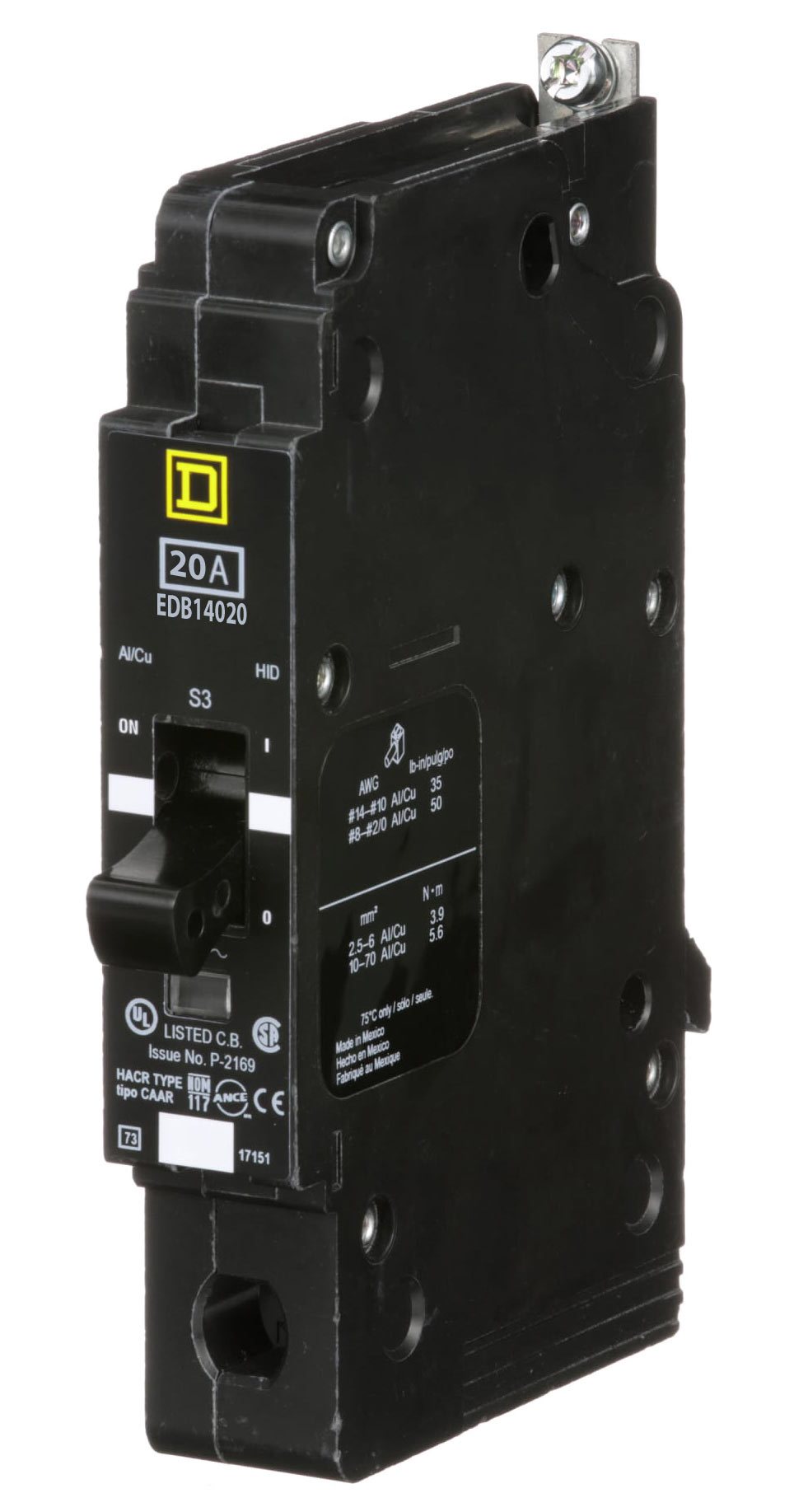

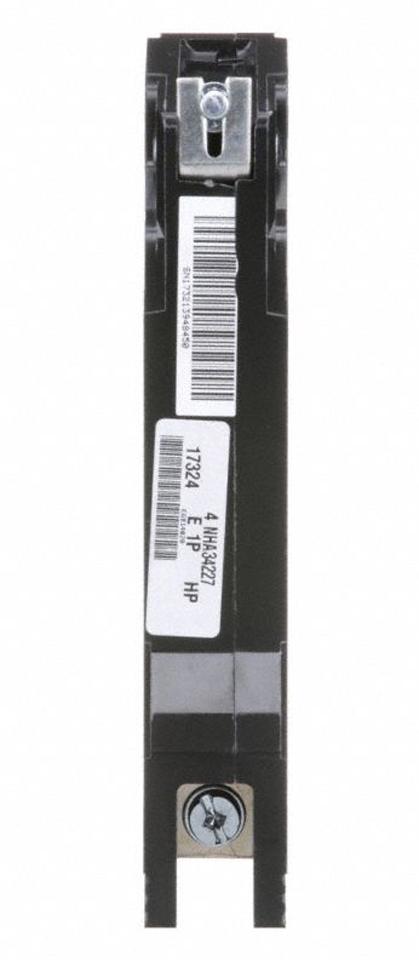

Square D EDB14020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 277V AC voltage rating, housed within a compact, single-pole bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.35 lb. The breaker is constructed for NF panelboards, utilizing a thermal-magnetic trip unit for long-time and instantaneous protection, and is certified to cULus and IEC standards for safety and interoperability. Its 18kA interrupting rating at 480V and lug terminals compatible with 12-6 AWG aluminum or 14-6 AWG copper wire make it suitable for lighting and appliance branch circuits in commercial buildings.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Frame Size: 125A/EDB
  • Poles: 1
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • AIC Rating: 18kA @ 480V
  • Phase: 1
  • Functions: Long Time and Instantaneous Trip

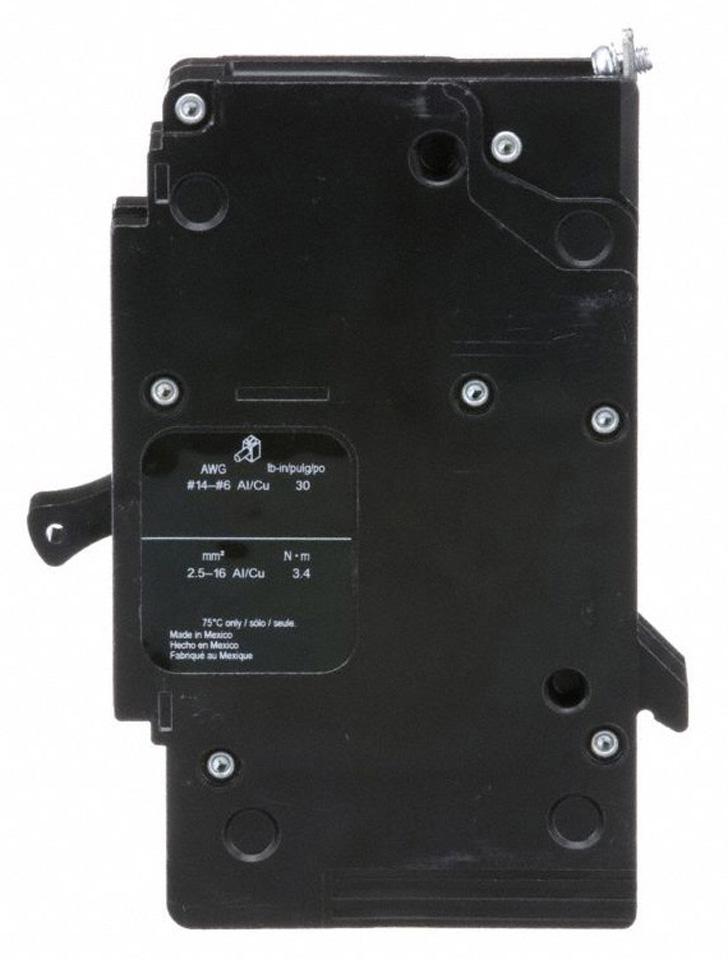

  • Wire Size: 12-6 AWG (Aluminum), 14-6 AWG (Copper)
  • Panel Type: NF Panelboard
  • Breaker Type: Standard
  • Standards & Certification: cULus, IEC
  • Temp Rating: 40 °C (104 °F)
  • Dimensions: 143.76 mm H x 24.89 mm W x 102.87 mm D (5.66 in x 0.98 in x 4.05 in)
  • Weight: 1.35 lb
  • Family: EDB Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901878902
  • GTIN: 00785901878902
