Square D EDB14015EPD - Molded Case Circuit Breaker 15A 277V (18kA AIC)
Square D EDB14015EPD - Molded Case Circuit Breaker 15A 277V (18kA AIC)

Square D EDB14015EPD - Molded Case Circuit Breaker 15A 277V (18kA AIC)

Square D
Price
Save $1,074.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

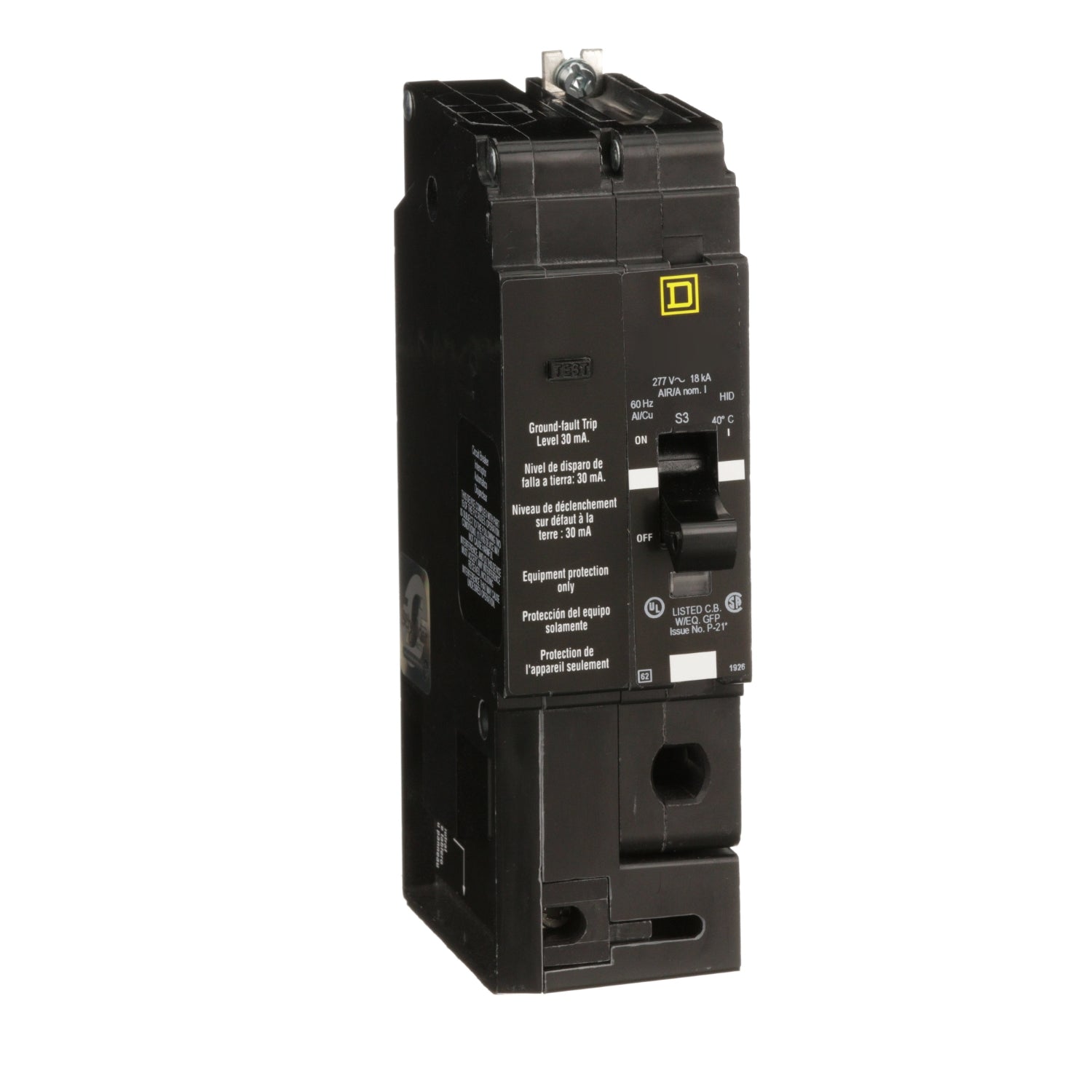

Square D EDB14015EPD is a molded case circuit breaker designed for ground fault equipment protection in industrial and commercial electrical systems. It provides a 15A current rating and 277V voltage rating with thermal-magnetic protection featuring long-time and instantaneous (LI) trip functions. The breaker features a compact 125A/EDB frame with dimensions of 168.66 mm H x 49.78 mm W x 102.87 mm D, a bolt-on connection with lug terminals, and accepts copper or aluminum wire from 14-6 AWG (Cu) or 12-4 AWG (Al). It meets cULus and IEC standards with an 18kA interrupting rating at 480V and is rated for operation in environments up to 40°C (104°F). This single-pole breaker is typically installed in NF panelboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Equipment Protection, Thermal Magnetic Trip with LI (Long-time and Instantaneous) Functions
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Frame Size: 125A/EDB
  • Poles: 1
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Wire Size: 14 to 6 AWG (Copper), 12 to 4 AWG (Aluminum)
  • Panel Type: NF Panelboard
  • Protection: Thermal Magnetic
  • Standards & Certification: cULus, IEC
  • Dimensions: 168.66 mm x 49.78 mm x 102.87 mm (H x W x D) / 6.64 in x 1.96 in x 4.05 in
  • Weight: 2.11 lb
  • Operating Temperature: 40°C (104°F) Maximum
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901932758
  • GTIN: 00785901932758
