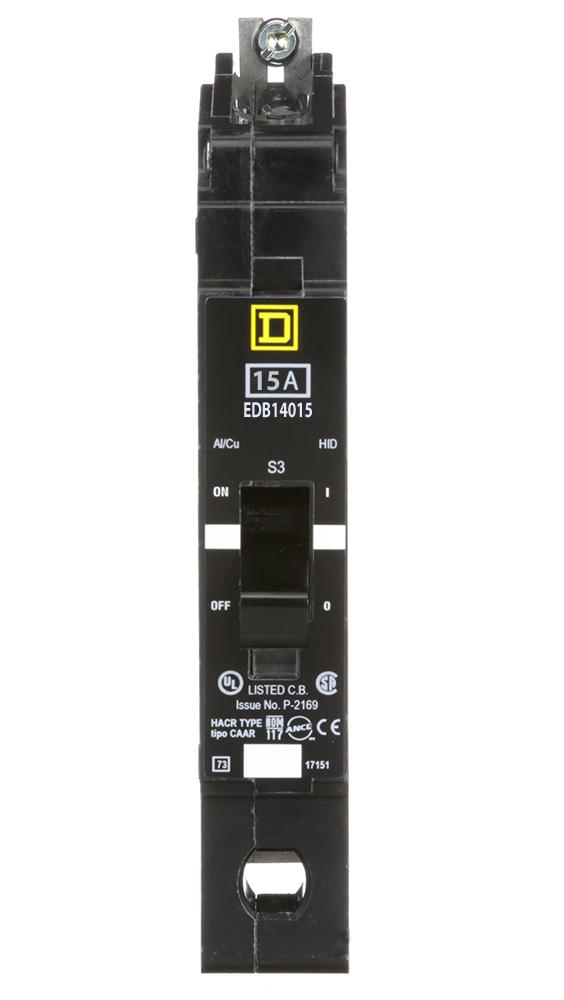

Square D EDB14015 - Molded Case Circuit Breaker 15A 1P (18kA AIC)
Square D EDB14015 - Molded Case Circuit Breaker 15A 1P (18kA AIC)

Square D EDB14015 - Molded Case Circuit Breaker 15A 1P (18kA AIC)

Square D
Price
Save $90.48
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D EDB14015 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 277V voltage rating, housed within a compact, single-pole bolt-on design measuring 143.76 mm H x 24.89 mm W x 102.87 mm D and weighing 1.32 lb. This thermal magnetic breaker, part of the EDB Series, complies with cULus and IEC standards and offers an interrupting capacity of 18kA at 480V. It is engineered for use in NF panelboards, providing long-time and instantaneous trip (LI) protection for branch circuits, and accepts copper or aluminum wire from AWG 6 to AWG 14.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Dimensions: 5.66 in (143.76 mm) H x 0.98 in (24.89 mm) W x 4.05 in (102.87 mm) D
  • Standards: cULus, IEC
  • Applications: Branch circuit protection in industrial/commercial NF panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single Unit
  • Temp Rating: 104 °F (40 °C)
  • Phase: 1
  • Amperage: 15A
  • AIC rating: 18kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/EDB
  • Trip Type: Thermal Magnetic
  • Panel Type: NF panelboard
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Wire Size: AWG 14 to AWG 6, AWG 12 to AWG 6, Copper/Aluminum
  • Certification: cULus, IEC
  • Mounting: Panel Mount
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single Phase
  • Compatible Frames: EDB Series
  • Installation Type: Fixed
  • Breaker Frame: EDB
  • Operating Temperature Maximum Celsius: 40 °C
  • Enclosure: Molded Case
  • Wire: Copper or Aluminum
  • Nema Rating: Not Specified
  • Circuit Breaker Mounting Style: Bolt-On
  • Standards: cULus, IEC
  • Country of Origin: Mexico
  • Weight: 1.32 lb


Product Identification
  • UPC: 785901878896
  • GTIN: 00785901878896
