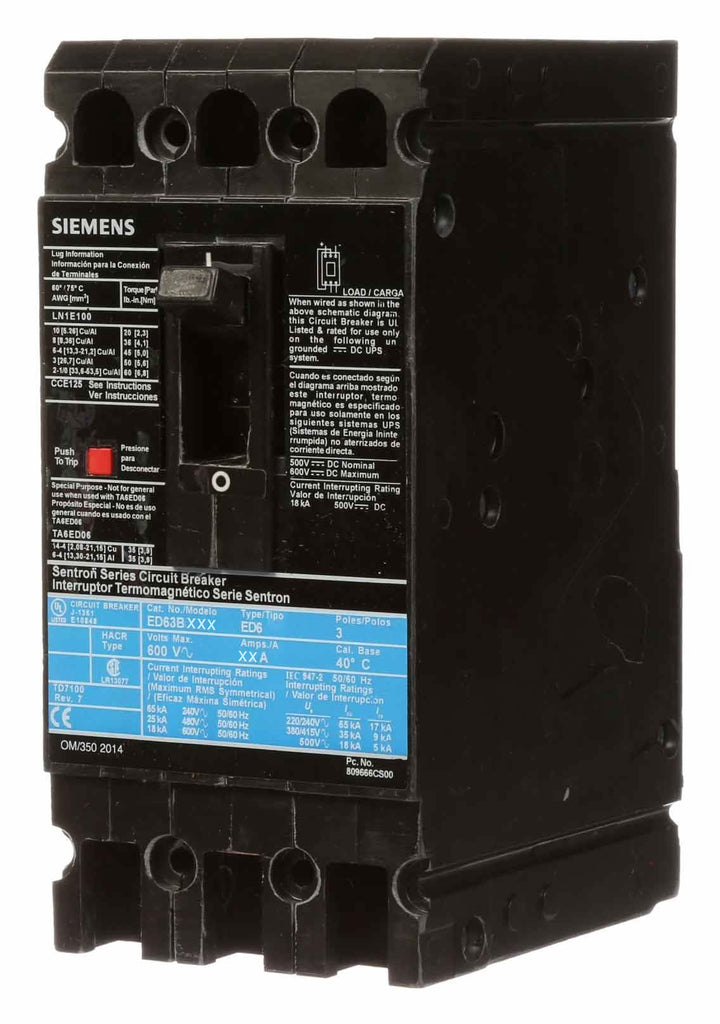

Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P
Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens ED63B100 - Molded Case Circuit Breaker 100A 600V 3P

Siemens
Price
Save $3,235.92
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

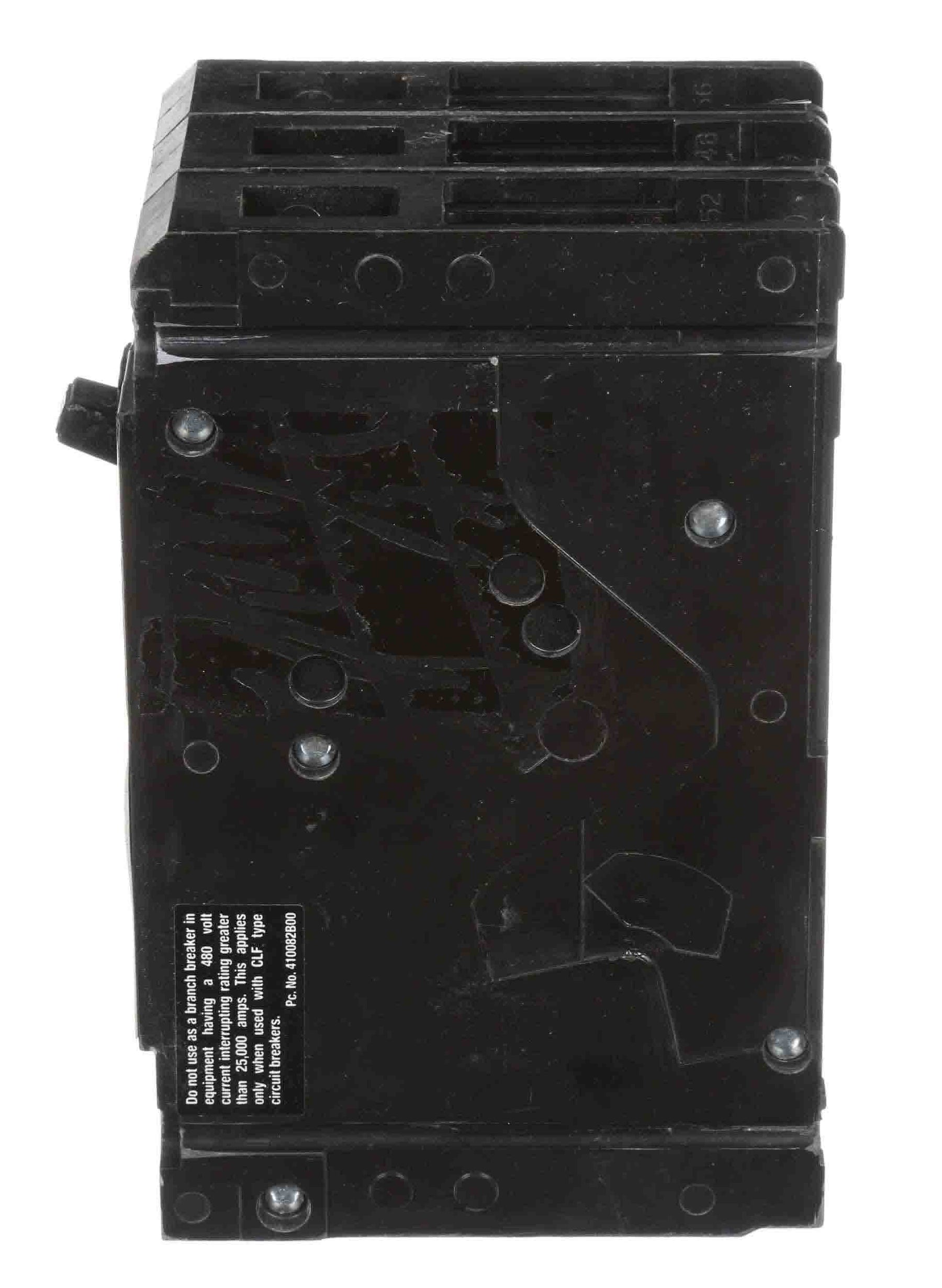

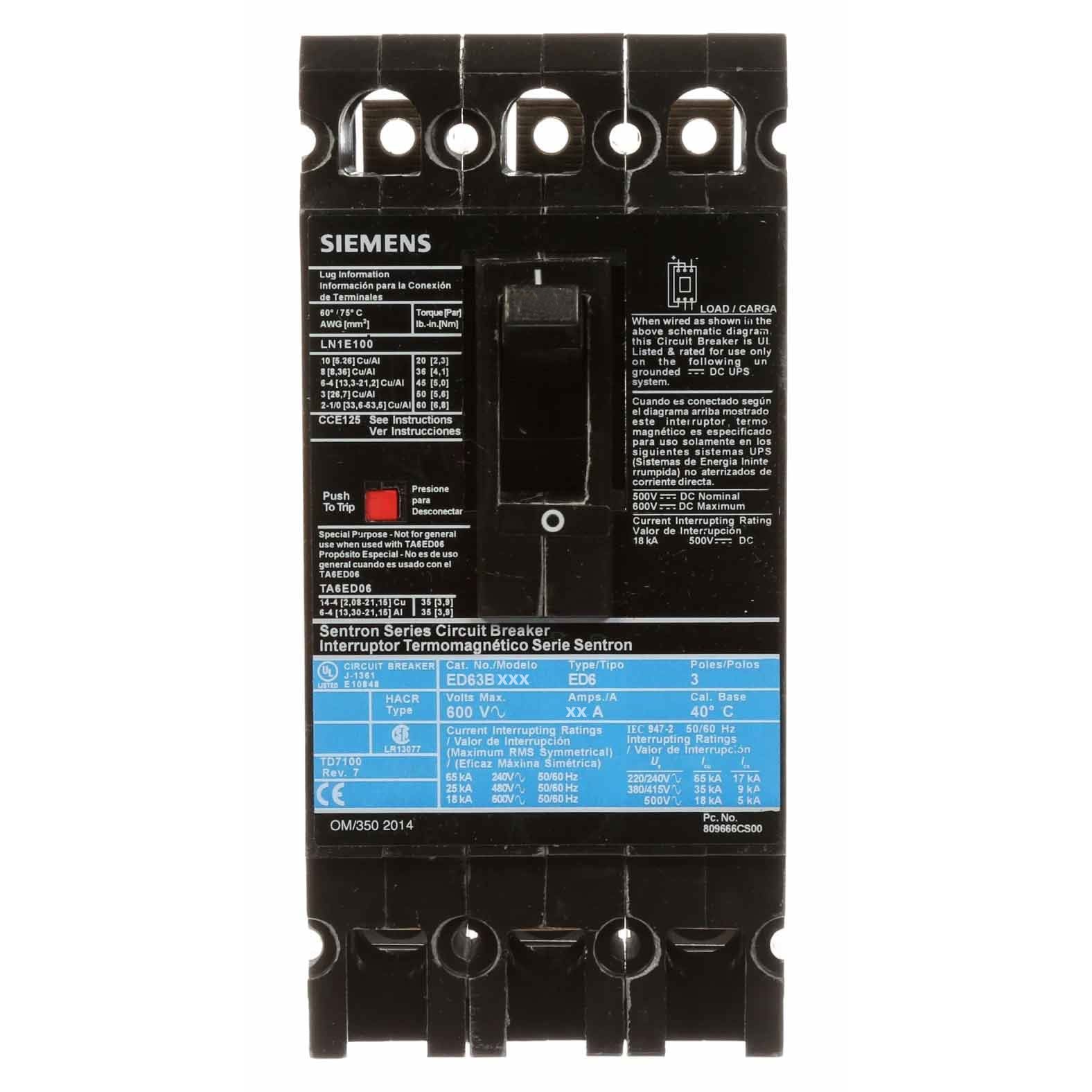

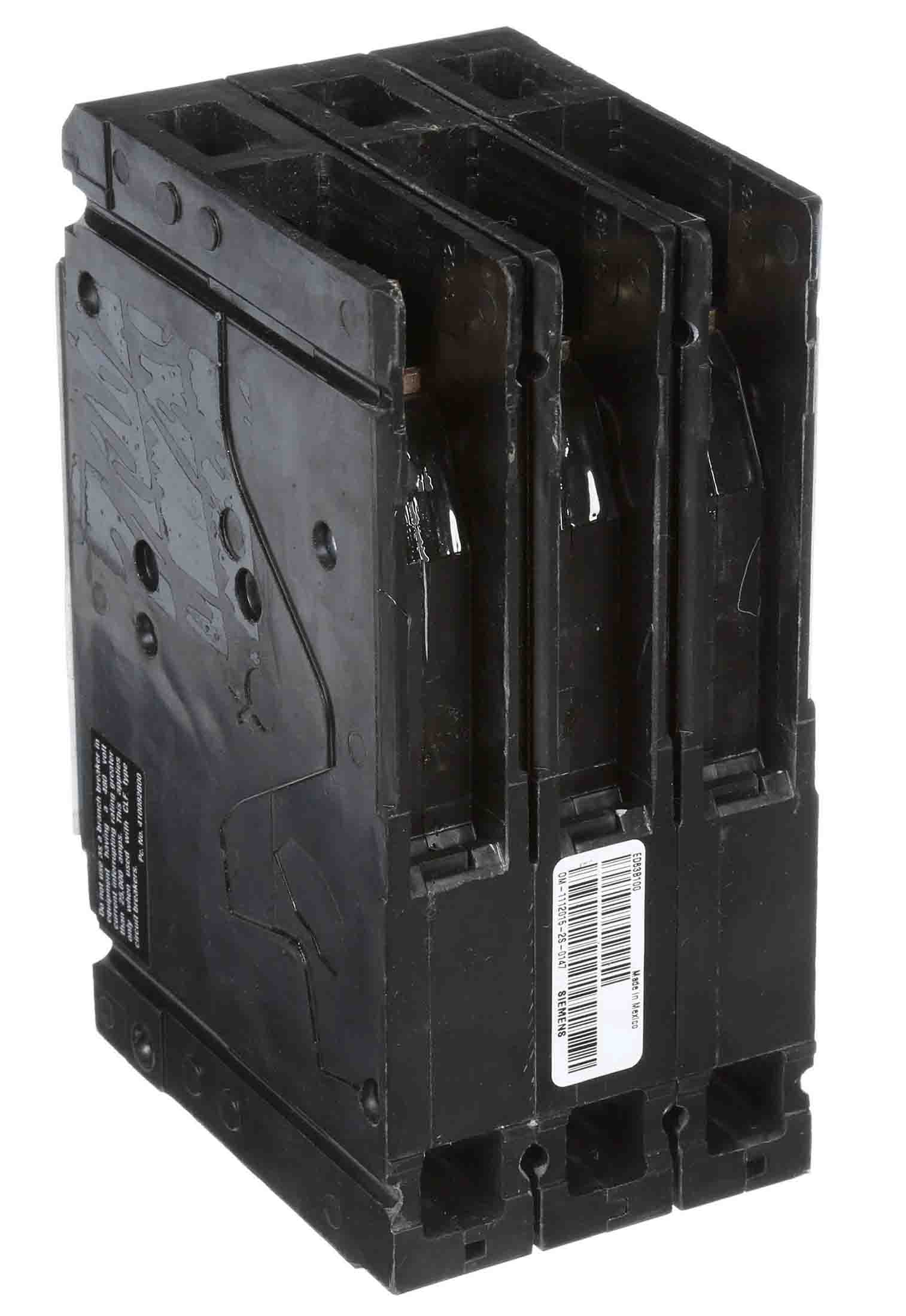

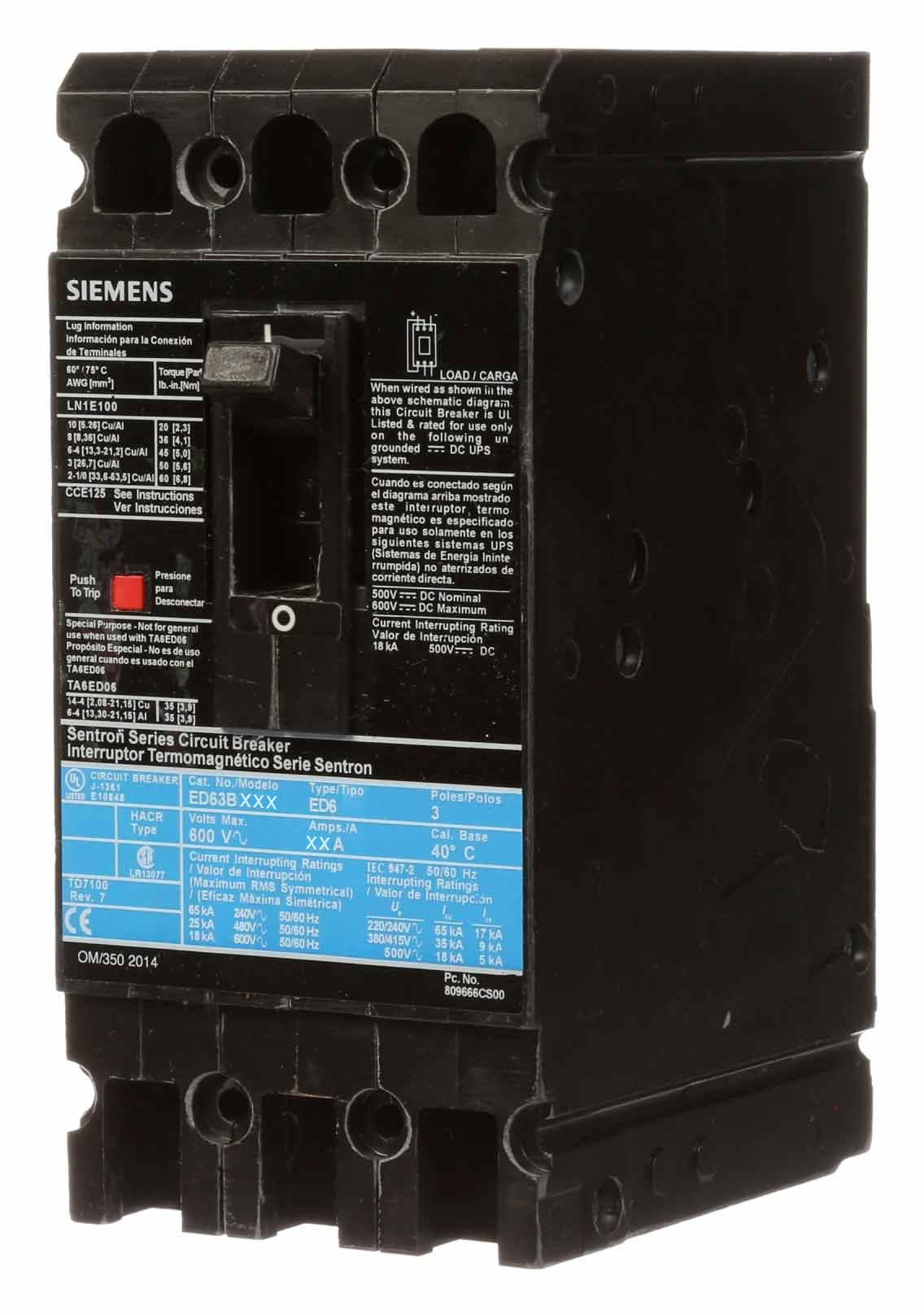

Siemens ED63B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A continuous current rating and a 600V AC voltage rating, housed within a compact ED frame with bolt-on connections and dimensions of 6.693" x 5.906" x 3.101" (170mm x 150mm x 78.8mm) and a weight of 3.704 lb. The breaker's thermal-magnetic protection mechanism provides both long-time and instantaneous trip functions, is certified to UL and IEC standards, and operates effectively within a temperature range of -25°C to 70°C. Its 25kA interrupting rating at 480V AC makes it suitable for a wide range of commercial and industrial applications, including panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: ED Frame
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 25kA @ 480V AC
  • Phase: 3
  • Wire Size: AWG 10 to AWG 1/0, Copper/Aluminum
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693" x 5.906" x 3.101" (170mm x 150mm x 78.8mm)
  • Weight: 3.704 lb
  • Standards: UL Listed, IEC Certified
  • Functions: Long Time and Instantaneous Trip
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209787
  • GTIN: 00783643209787
