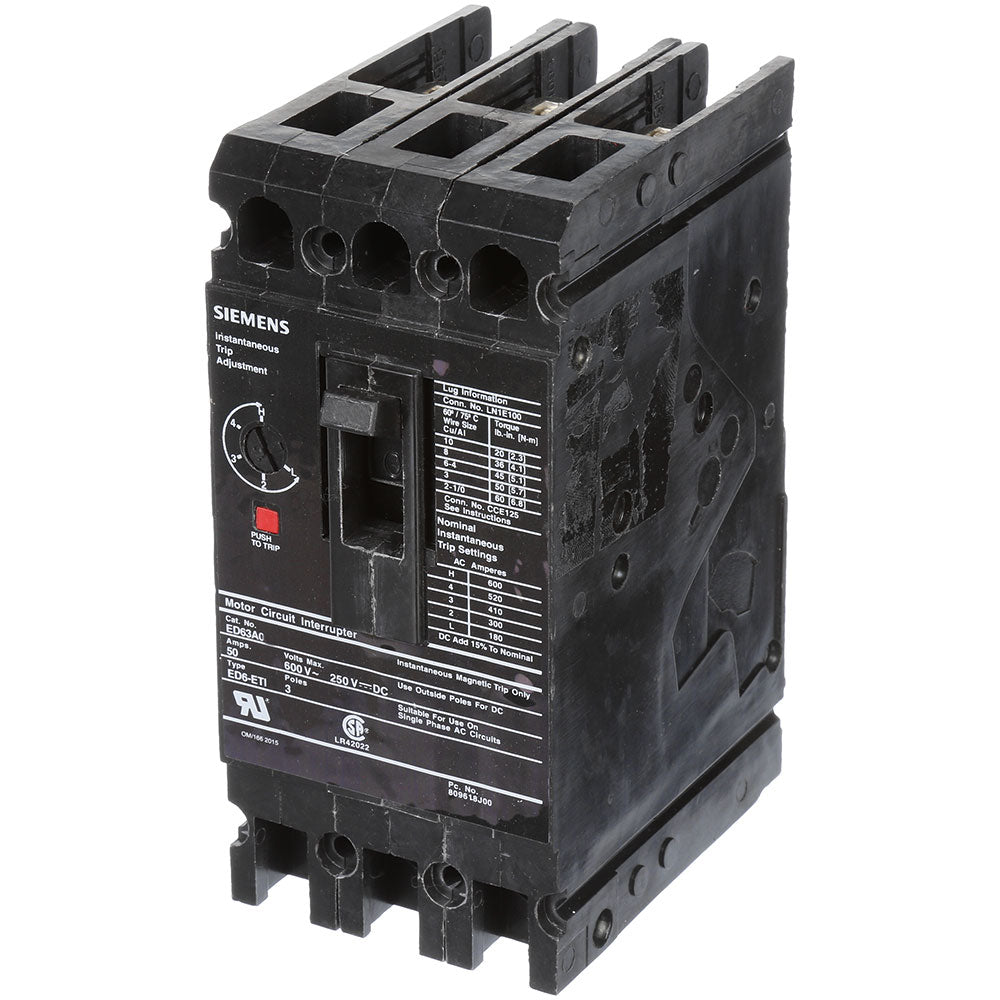

Siemens ED63A125 - Molded Case Circuit Breaker 125A 600V 3P
Siemens ED63A125 - Molded Case Circuit Breaker 125A 600V 3P

Siemens ED63A125 - Molded Case Circuit Breaker 125A 600V 3P

Siemens
Price
Save $7,116.89
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63A125 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection against short-circuit faults in three-phase electrical systems. It features a 125A current rating and a 600V AC voltage rating, housed within a compact ED frame with bolt-on connections and physical dimensions of 6.693" x 5.906" x 3.971" (170mm x 150mm x 101mm). The device is IEC certified and UL listed, with an interrupting capacity of 25kA at 480V AC and an operational temperature range of -25°C to 70°C (-13°F to 158°F). It is typically applied in industrial panelboards and switchboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection (Instantaneous Trip)
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 6.693 in x 5.906 in x 3.971 in (170 mm x 150 mm x 101 mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial branch circuit protection in panelboards and switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Instantaneous (I)
  • Frame Size: ED Frame
  • Weight: 0.379 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210882
  • GTIN: 00783643210882
