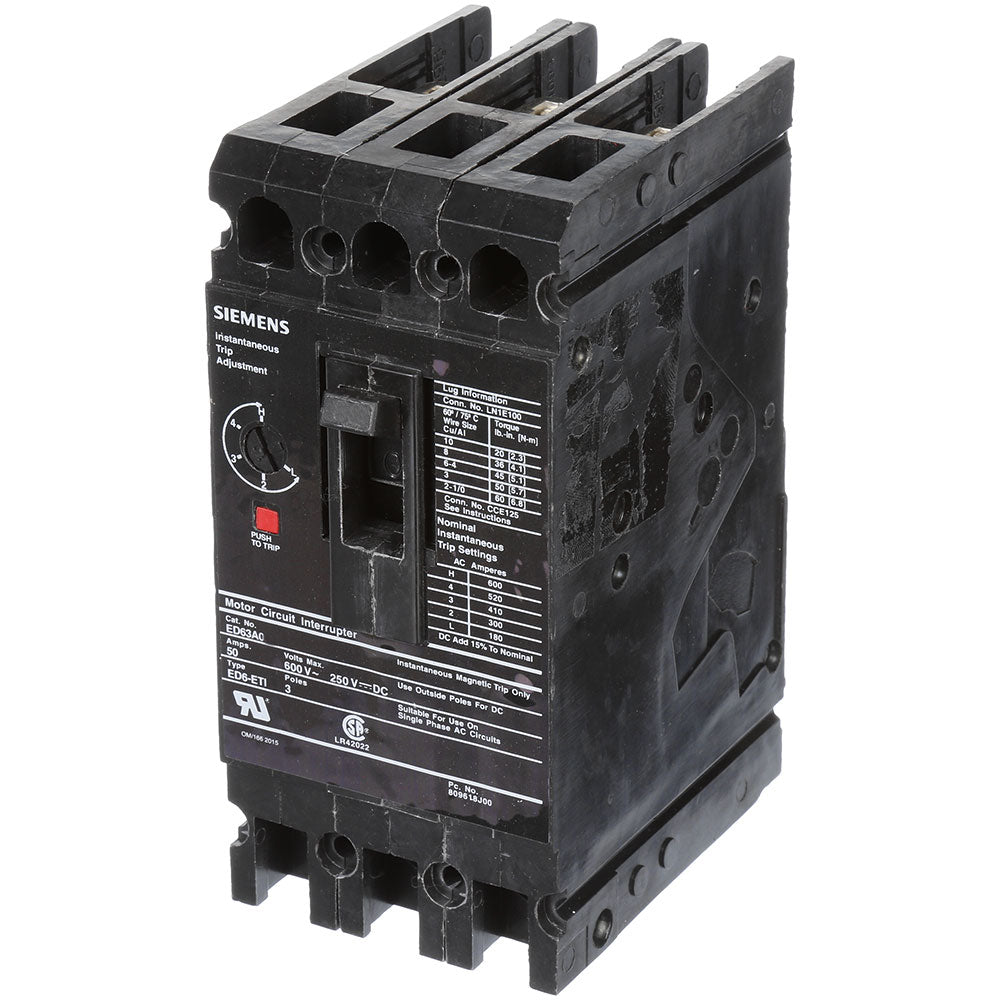

Siemens ED63A050 - Molded Case Circuit Breaker 50A 600V 3P
Siemens ED63A050 - Molded Case Circuit Breaker 50A 600V 3P

Siemens ED63A050 - Molded Case Circuit Breaker 50A 600V 3P

Siemens
Price
Save $3,316.73
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens ED63A050 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact ED Frame measuring 6.693" x 5.906" x 3.967" and weighing 0.348 lb. This bolt-on, three-pole breaker is IEC certified and UL listed, with an interrupting capacity of 25kA at 480V AC and an operational temperature range of -25°C to 70°C. It is engineered for reliable performance in panelboards and switchboards, accepting copper or aluminum conductors from AWG 10 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, ED Frame, Magnetic-Only Protection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 6.693" H x 5.906" W x 3.967" D (170mm x 150mm x 100.8mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial panelboards and switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Instantaneous Trip
  • Frame Size: ED Frame
  • Wire Size: AWG 10 to AWG 1/0 (Copper or Aluminum)
  • Certification: IEC Certified, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210851
  • GTIN: 00783643210851
