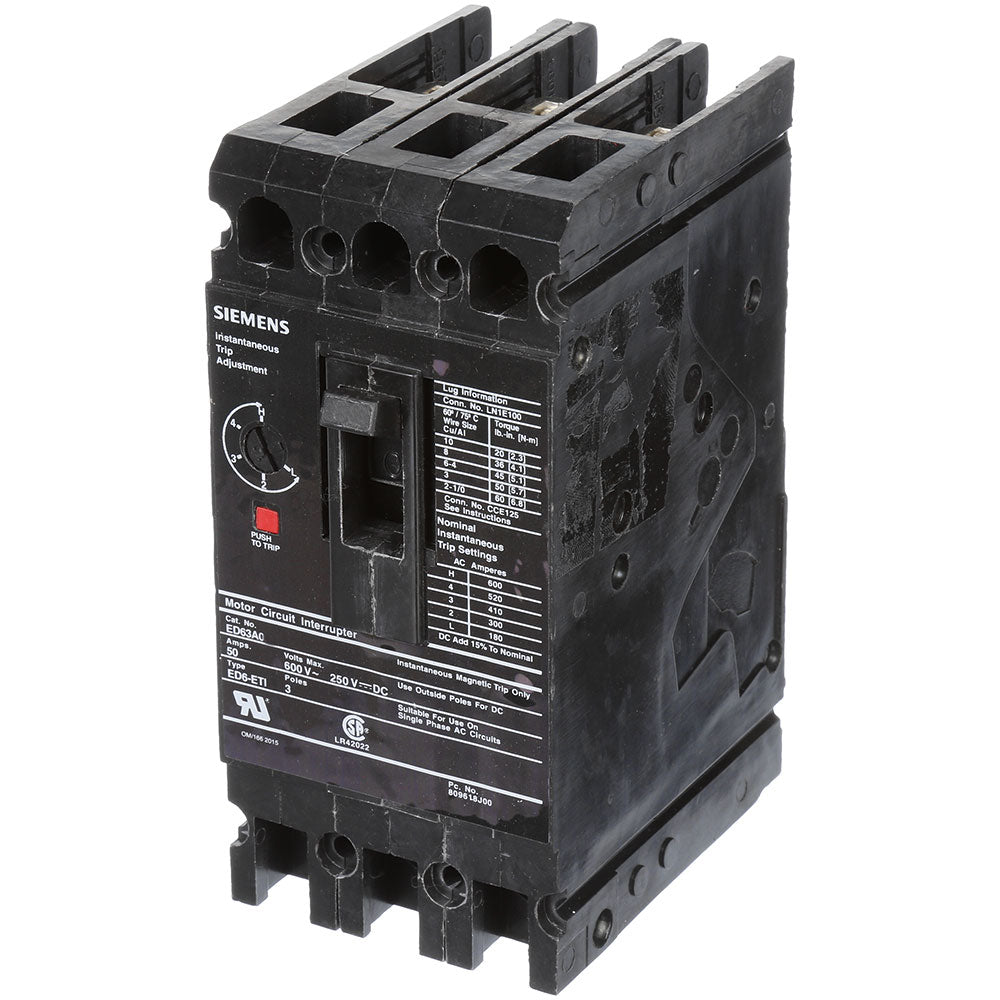

Siemens ED63A040 - Molded Case Circuit Breaker 40A 600V 3P
Siemens ED63A040 - Molded Case Circuit Breaker 40A 600V 3P

Siemens ED63A040 - Molded Case Circuit Breaker 40A 600V 3P

Siemens
Price
Save $2,399.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63A040 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection against short-circuit faults in three-phase electrical systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 170mm x 150mm x 101mm (6.693" x 5.906" x 3.965") and weighing 0.34 lb. The breaker is IEC certified and UL listed, ensuring compliance with international and North American safety standards, and is rated for operation in temperatures from -25°C to 70°C. Its 25kA interrupting capacity at 480V and bolt-on connection for AWG 10 to 1/0 copper or aluminum wire make it suitable for industrial panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, ED Frame, Magnetic-Only Protection (Instantaneous Trip)
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 170mm x 150mm x 101mm (6.693" x 5.906" x 3.965")
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial panelboards, switchboards, motor control centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 40A
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic (Instantaneous)
  • Functions: Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 10 to AWG 1/0 (Copper or Aluminum)
  • Certification: IEC, UL
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643214958
  • GTIN: 00783643214958
