Siemens ED63A010 - Molded Case Breaker 10A 600V 3-Pole
Siemens ED63A010 - Molded Case Breaker 10A 600V 3-Pole

Siemens ED63A010 - Molded Case Breaker 10A 600V 3-Pole

Siemens
Price
Save $2,428.53
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

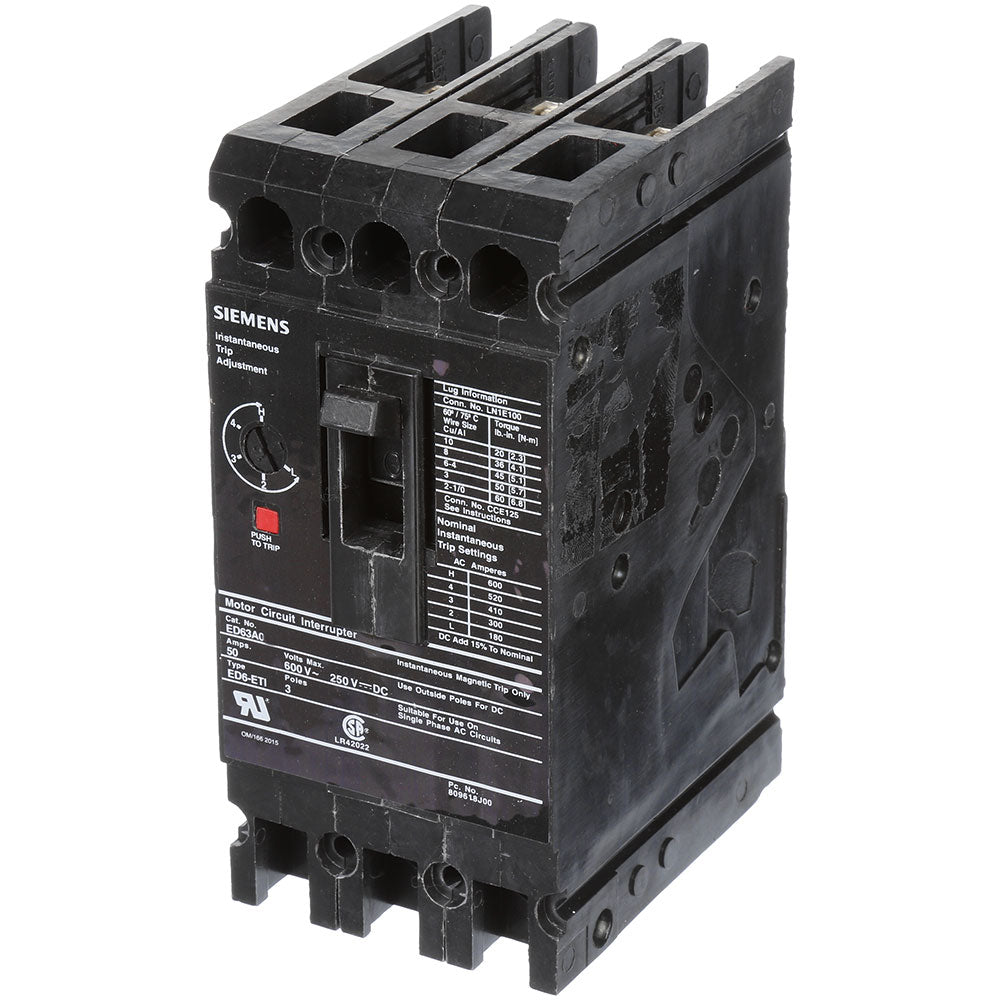

Siemens ED63A010 is a molded case circuit breaker from the Sentron Series designed to provide instantaneous magnetic-only protection for three-phase industrial circuits. It features a 10A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 6.693" x 5.906" x 3.959" and weighing 3.801 lb. This bolt-on, three-pole breaker is IEC certified and UL listed, with an interrupting capacity of 25kA at 480V and an operational temperature range of -25°C to 70°C. It is engineered for reliable branch circuit protection in commercial and industrial panelboards, compatible with copper wire sizes AWG 14 to 10 and aluminum wire sizes AWG 12 to 10.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 10A
  • Dimensions: 6.693" H x 5.906" W x 3.959" D (170mm x 150mm x 100.5mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial Panelboards, Commercial Electrical Distribution, Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Unit Dimensions Apply
  • Phase: 3-Phase
  • Voltage: 600V AC
  • Amperage: 10A
  • AIC rating: 25kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Magnetic
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Certification: IEC, UL
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 3.801 lb (1.724 kg)


Product Identification
  • UPC: 783643210820
  • GTIN: 00783643210820
