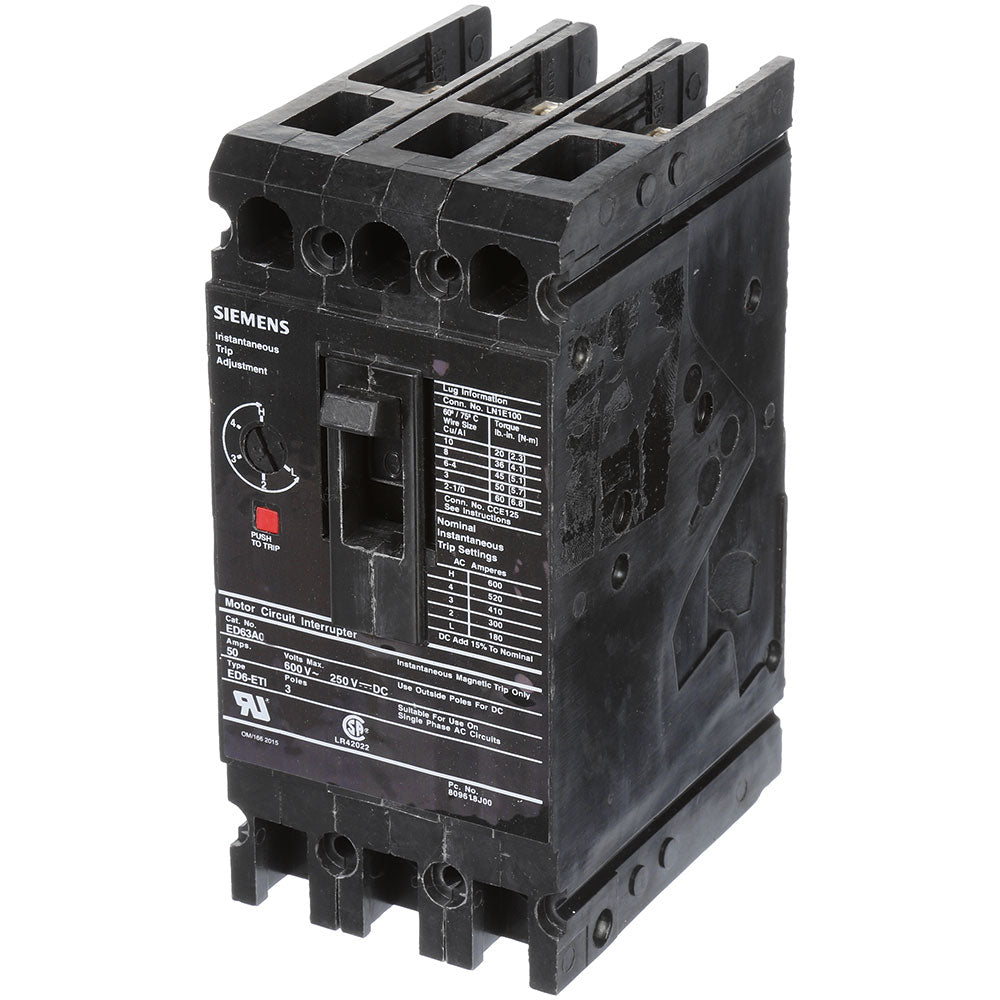

Siemens ED63A005 - Molded Case Circuit Breaker (5A, 600V AC)
Siemens ED63A005 - Molded Case Circuit Breaker (5A, 600V AC)

Siemens ED63A005 - Molded Case Circuit Breaker (5A, 600V AC)

Siemens
Price
Save $2,756.10
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Siemens ED63A005 is a molded case circuit breaker from the Sentron Series designed to provide instantaneous magnetic-only protection for three-phase electrical circuits. It features a 5A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 6.693" x 5.906" x 3.957" and weighing 3.79 lb with a bolt-on connection. This breaker is UL Listed and IEC Certified, offering a 25kA interrupting capacity at 480V and is rated for operation from -25°C to 70°C. It is engineered for industrial applications requiring reliable branch circuit protection, compatible with copper wire sizes from AWG 14 to 10 and aluminum from AWG 12 to 10.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 5A
  • Dimensions: 6.693" H x 5.906" W x 3.957" D (170mm x 150mm x 100.5mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Magnetic Only
  • Functions: Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 14 to AWG 10 (Cu), AWG 12 to AWG 10 (Al)
  • AIC Rating: 25kA @ 480V AC
  • Weight: 3.79 lb (1.72 kg)
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210813
  • GTIN: 00783643210813
