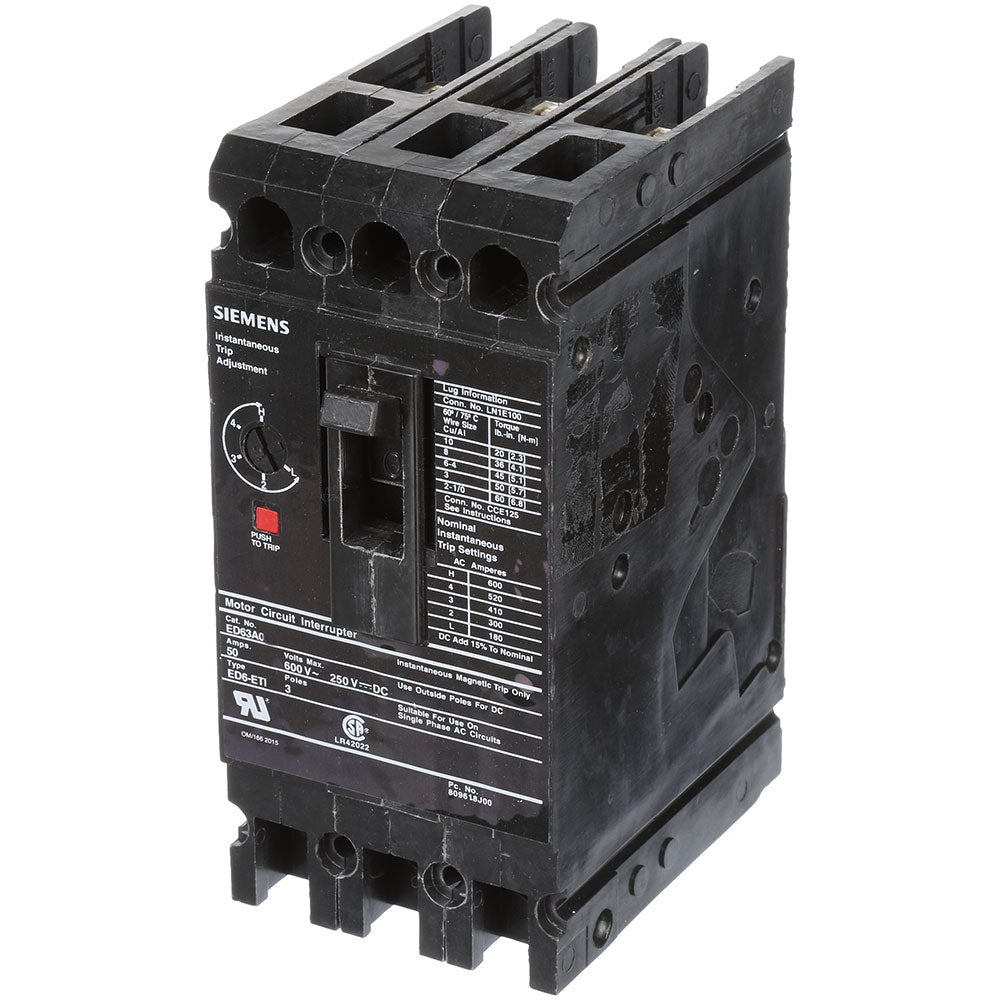

Siemens ED63A001 - Molded Case Breaker 1A 600V 3P (25kA AIC)
Siemens ED63A001 - Molded Case Breaker 1A 600V 3P (25kA AIC)

Siemens ED63A001 - Molded Case Breaker 1A 600V 3P (25kA AIC)

Siemens
Price
Save $2,762.27
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63A001 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection in three-phase industrial power distribution systems. It features a 1A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 170mm x 150mm x 100mm (6.693" x 5.906" x 3.951") and weighing 3.869 lb. The breaker is IEC certified and UL listed, ensuring compliance with international safety standards, and is engineered for reliable operation in environments with temperatures ranging from -25°C to 70°C. Its 25kA interrupting rating at 480V and bolt-on connection for copper (AWG 14-10) or aluminum (AWG 12-10) conductors make it suitable for protecting control circuits, motor feeders, and other critical loads where precise, instantaneous trip response is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, ED Frame, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 1A
  • Dimensions: 170mm x 150mm x 100mm (6.693" x 5.906" x 3.951")
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial control circuits, motor protection, three-phase power distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Magnetic Only
  • Functions: Instantaneous
  • Frame Size: ED Frame
  • Trip Type: Magnetic Instantaneous
  • AIC Rating: 25kA @ 480V AC
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3.869 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210783
  • GTIN: 00783643210783
