Siemens
Price
Save $2,284.73
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

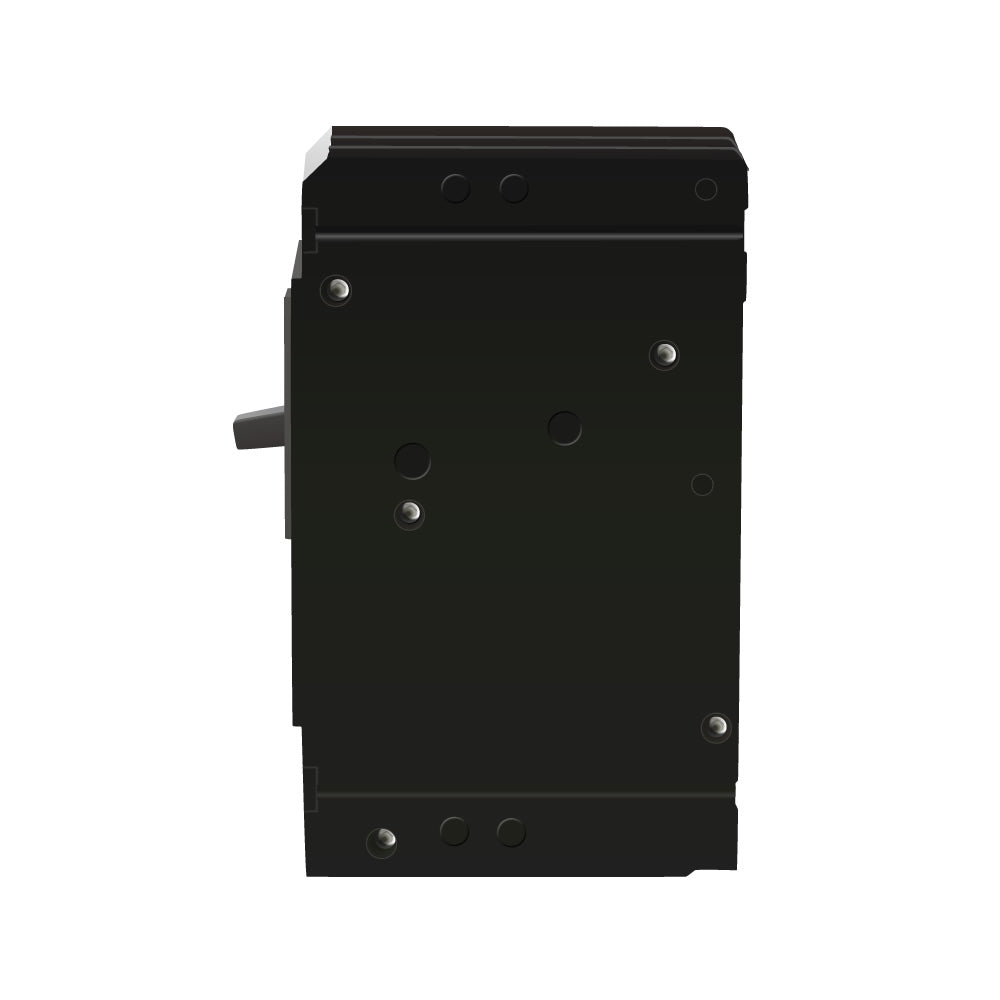

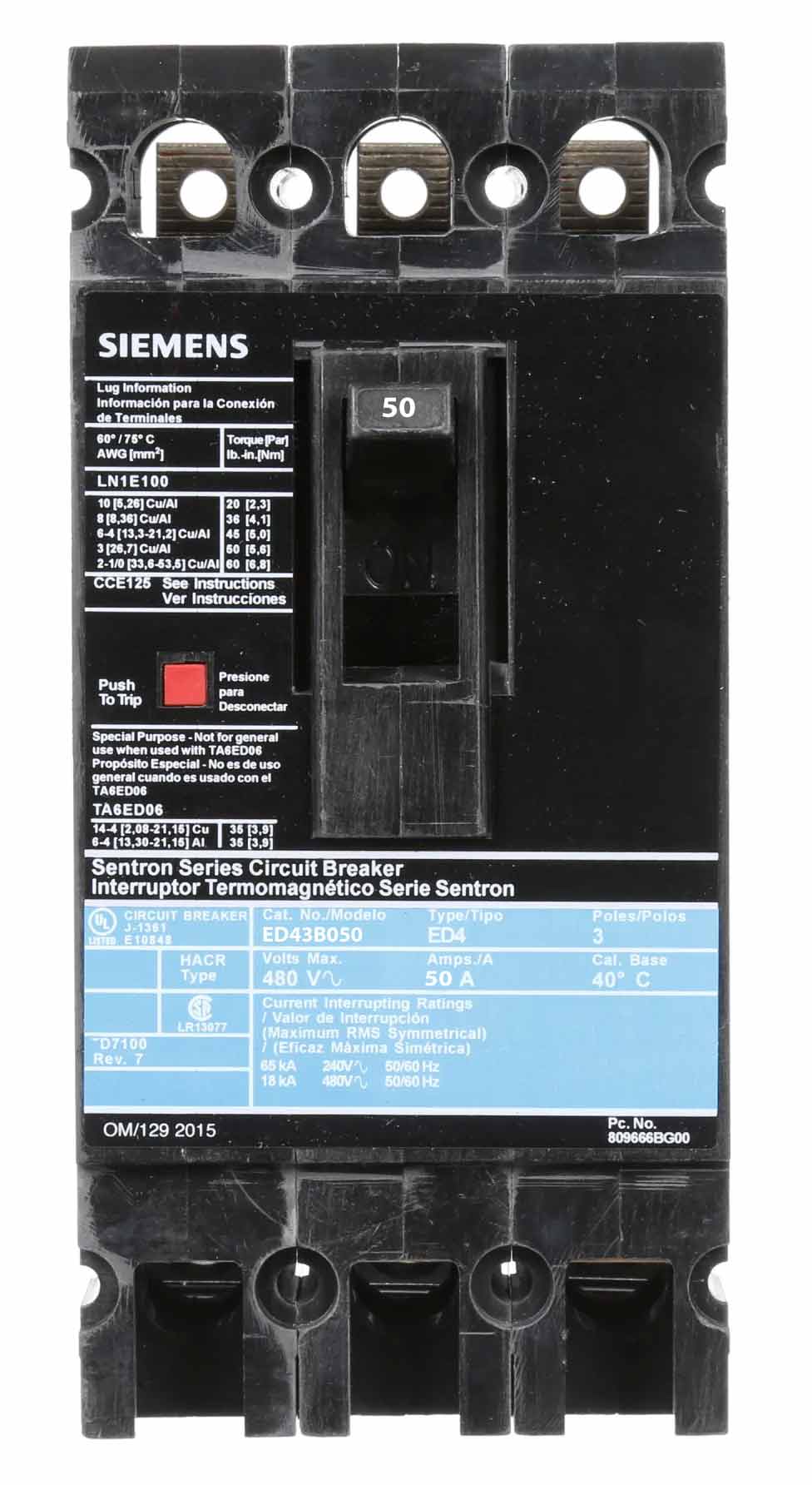

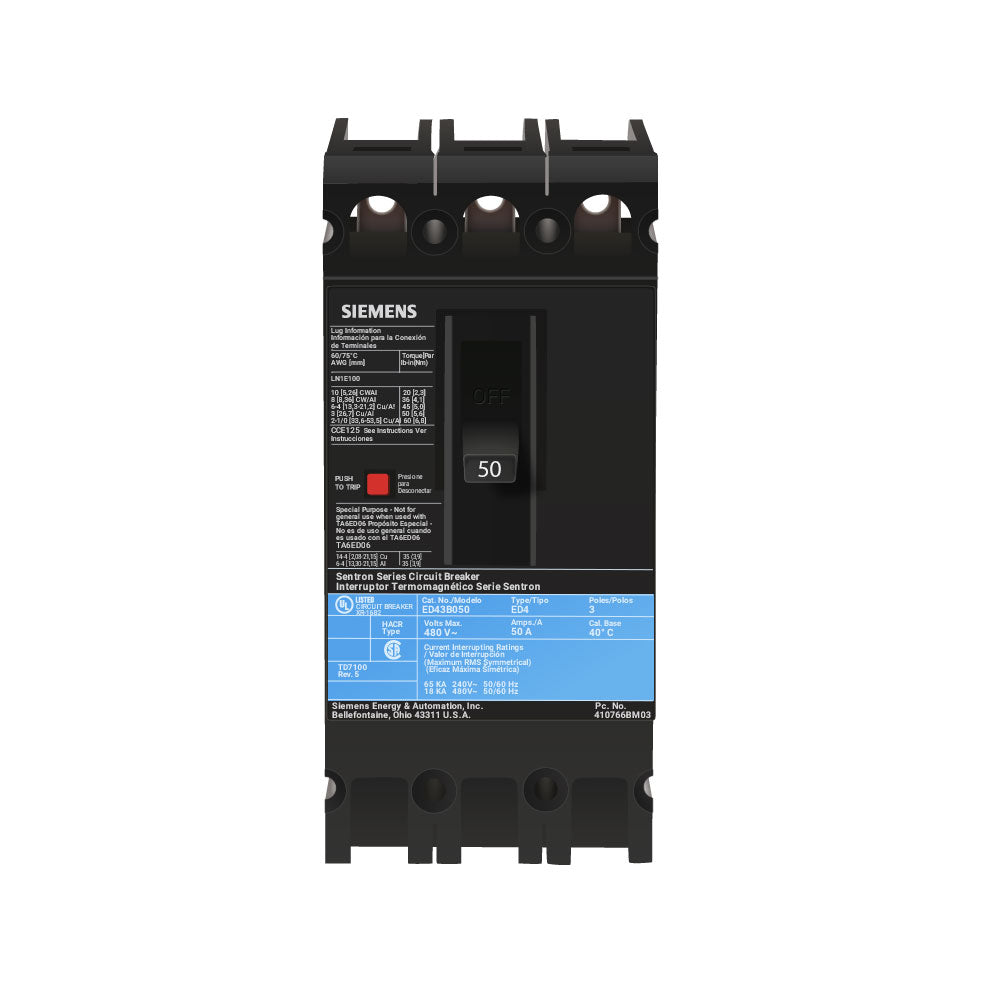

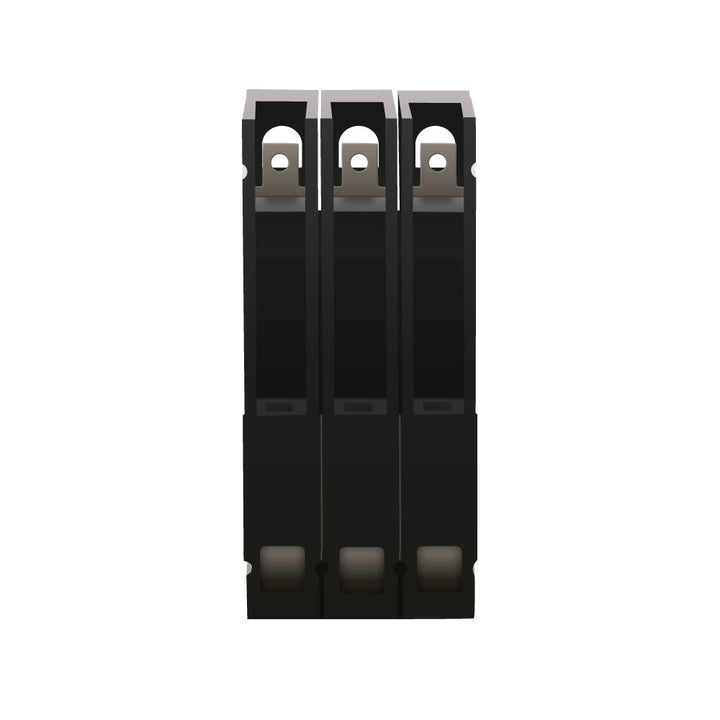

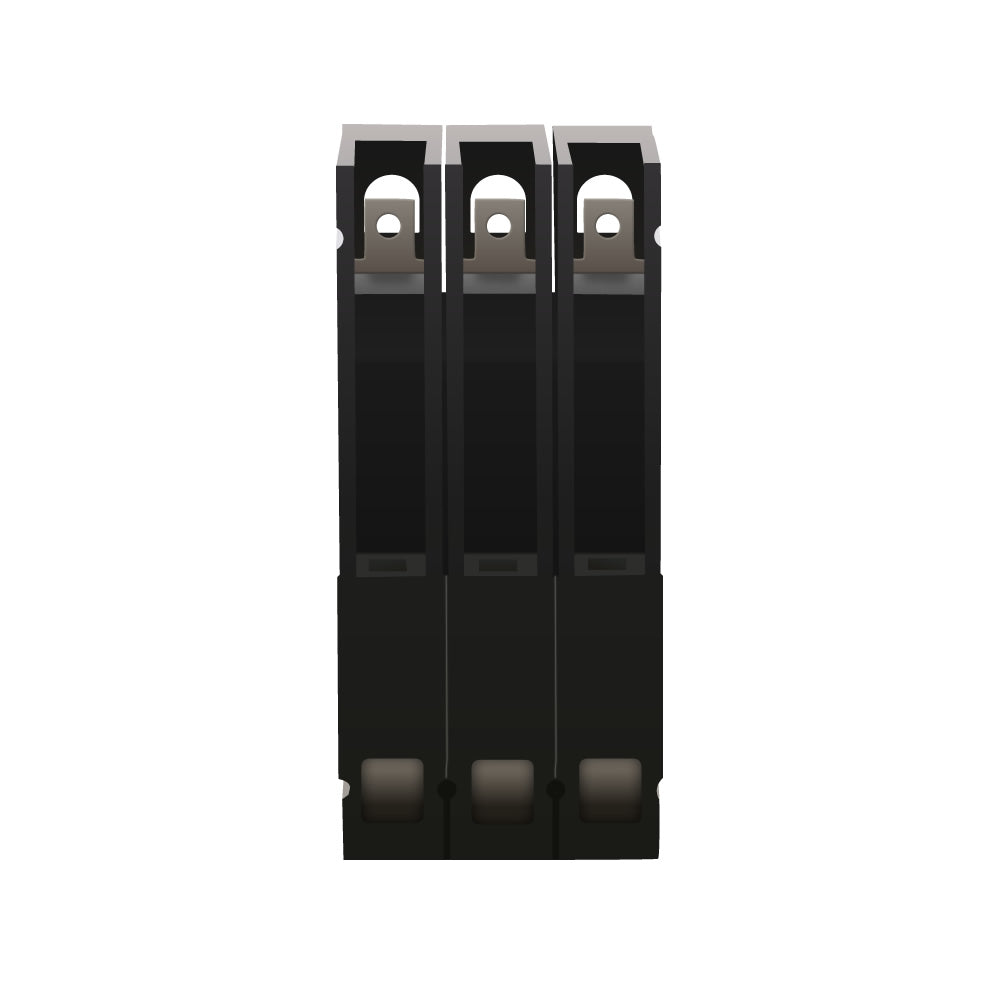

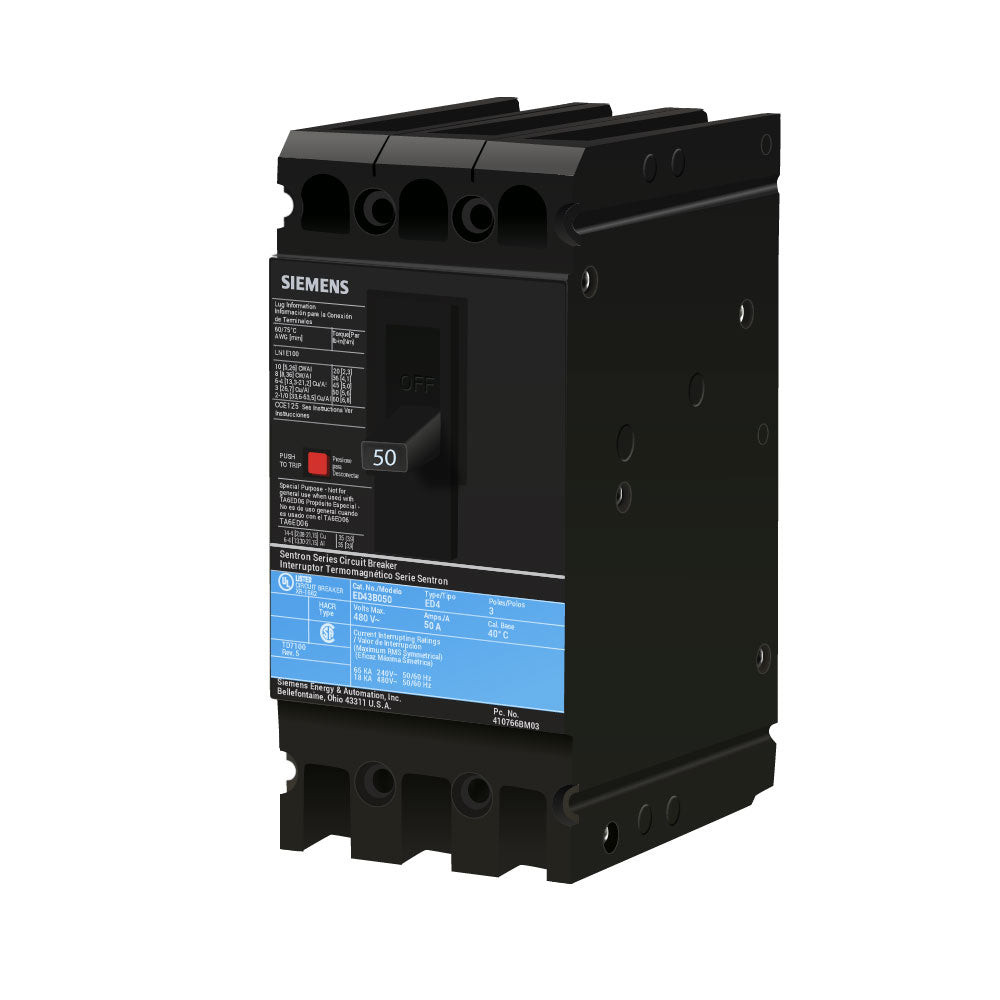

Siemens ED43B050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame measuring 6.693" x 5.906" x 3.952" and weighing 3.691 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is UL Listed and HACR rated for safety compliance, and is typically applied in SB switchboards and Sentron panelboards for industrial and commercial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Load Side Lug, Lug In Panelboard
  • Wire Size: 10 AWG to 1/0 AWG (Cu/Al)
  • Phase Connection: ABC
  • Standards/Certification: UL Listed, HACR Rated
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693" H x 5.906" W x 3.952" D
  • Weight: 3.691 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209435
  • GTIN: 00783643209435
