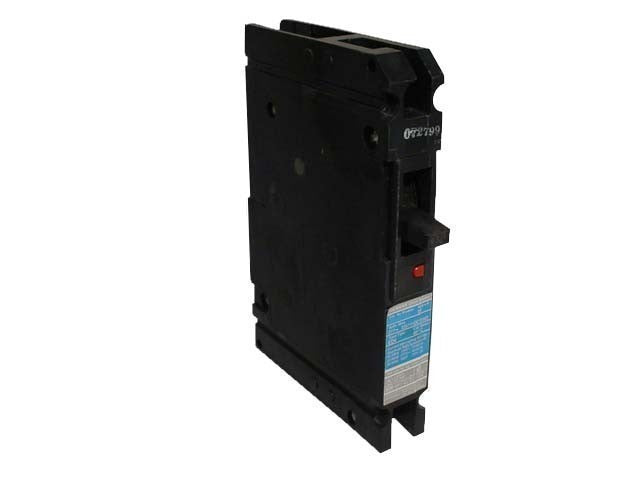

Siemens ED41B015 - Molded Case Circuit Breaker, 15A 1-Pole
Siemens ED41B015 - Molded Case Circuit Breaker, 15A 1-Pole

Siemens ED41B015 - Molded Case Circuit Breaker, 15A 1-Pole

Siemens
Price
Save $568.44
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED41B015 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It provides a 15A current rating and 120V AC voltage rating for single-phase applications, housed within a compact 125A/ED frame measuring 0.787" x 4.724" x 5.906" (20mm x 120mm x 150mm) and weighing 1.329 lb. The breaker is IEC certified and UL listed, ensuring compliance with international safety standards, and is engineered for integration into SB switchboards and Sentron panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Frame Size: 125A/ED
  • Poles: 1
  • AIC Rating: 65kA @ 120V
  • Connection: Bolt-On, Load Side Lug Terminal
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Phase: 1, Phase Connection: Any
  • Wire Size: AWG 14 to AWG 10, AWG 12 to AWG 10, Copper/Aluminum
  • MCM Size: Min. 6 AWG, Max. 1/0 AWG
  • Standards & Certification: IEC Certified, UL Listed
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 0.787" x 4.724" x 5.906" (20mm x 120mm x 150mm)
  • Weight: 1.329 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643214668
  • GTIN: 00783643214668
