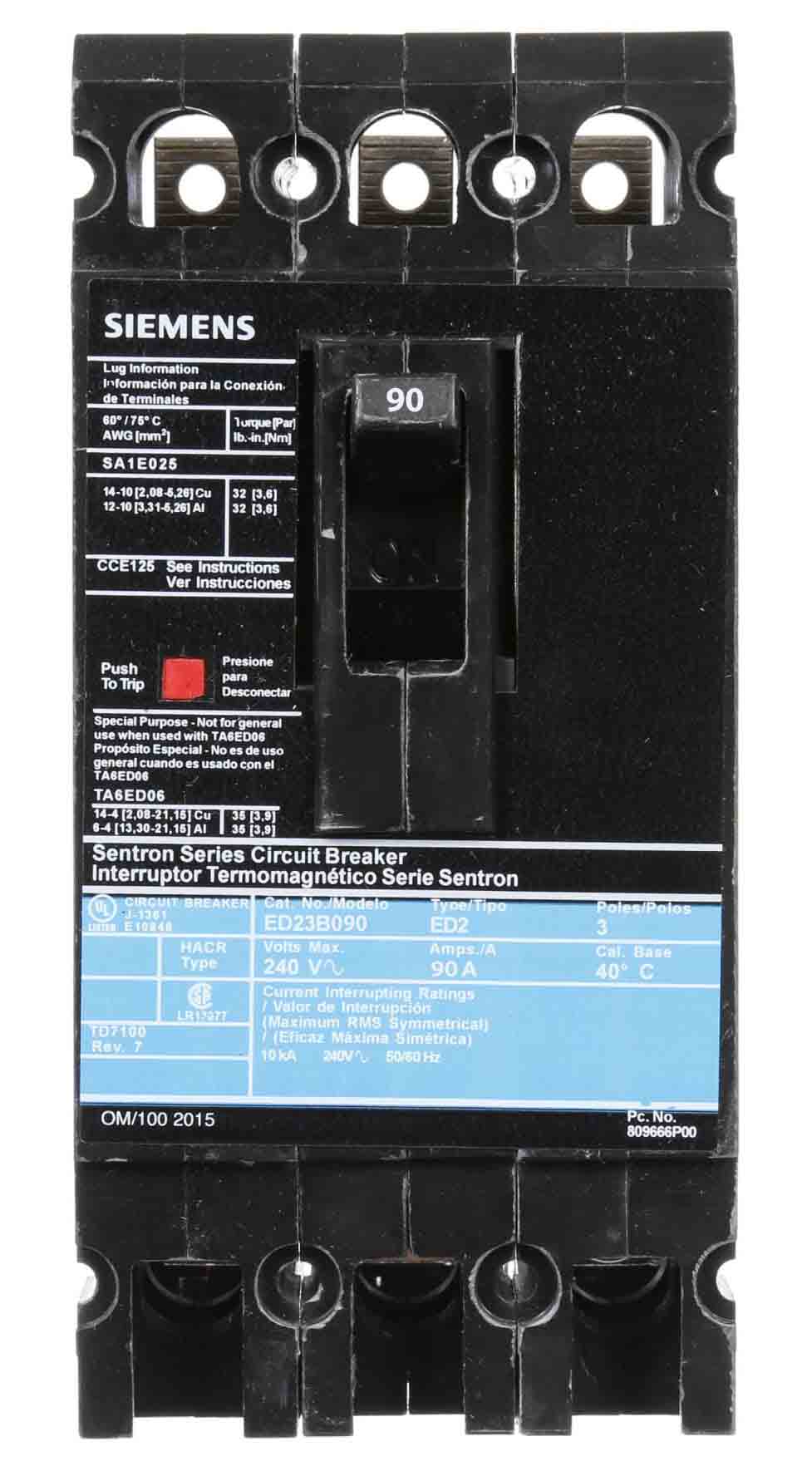

Siemens ED23B090 - Molded Case Circuit Breaker 90A 3P (10kA AIC)
Siemens ED23B090 - Molded Case Circuit Breaker 90A 3P (10kA AIC)

Siemens ED23B090 - Molded Case Circuit Breaker 90A 3P (10kA AIC)

Siemens
Price
Save $788.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED23B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 90A current rating and a 240V AC voltage rating, housed within a compact 3" x 6.34" frame with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection functions. This UL Listed and HACR Rated breaker is constructed for durability and is compatible with SB switchboards and Sentron panelboards via its load-side lug connection. It is engineered for industrial and commercial applications requiring a 10kA interrupting capacity at 240V, supporting wire sizes from 10 to 1/0 AWG for aluminum or copper conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Phase: 3
  • Phase Connection: ABC
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Lug In Panelboard
  • Terminal Connection: Load Side Lug
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • MCM Size: Min. 10 AWG, Max. 1/0 AWG
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Standards/Certification: HACR Rated, UL Listed
  • Dimensions: 3 in x 6.34 in
  • Weight: 3.801 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209077
  • GTIN: 00783643209077
