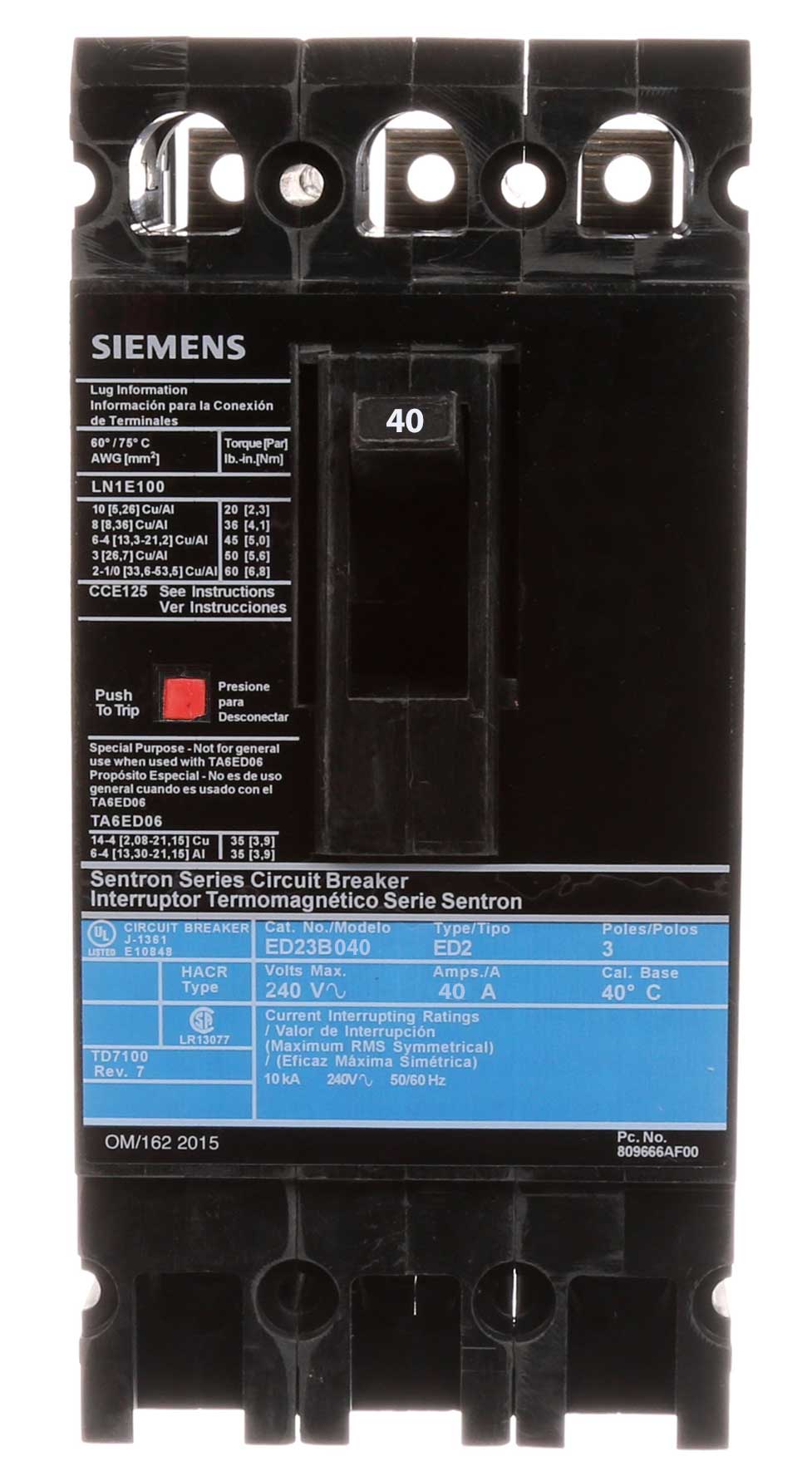

Siemens ED23B040 - Molded Case Circuit Breaker, 40A 3P 240V
Siemens ED23B040 - Molded Case Circuit Breaker, 40A 3P 240V

Siemens ED23B040 - Molded Case Circuit Breaker, 40A 3P 240V

Siemens
Price
Save $1,303.48
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens ED23B040 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 40A current rating and a 240V AC voltage rating, housed within a compact 3" x 6.34" (76.2 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous protection. This breaker is UL Listed and HACR rated for compliance, and it is engineered for installation in Sentron panelboards and SB switchboards using a load-side lug connection for conductors from 10 AWG to 1/0 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Load Side Lug, Lug in Panelboard
  • Phase Connection: 3-Phase (ABC)
  • Wire Size: 10 AWG to 1/0 AWG (Copper/Aluminum)
  • Protection Functions: Long Time and Instantaneous Trip
  • Dimensions: 3 in x 6.34 in (76.2 mm x 161 mm)
  • Weight: 3.699 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, HACR Rated
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209015
  • GTIN: 00783643209015
