Eaton Bussmann ECSR2 - RK5 Fuse 2A 600V (200kA AIC)

Bussmann
Price
Save $-31.76
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

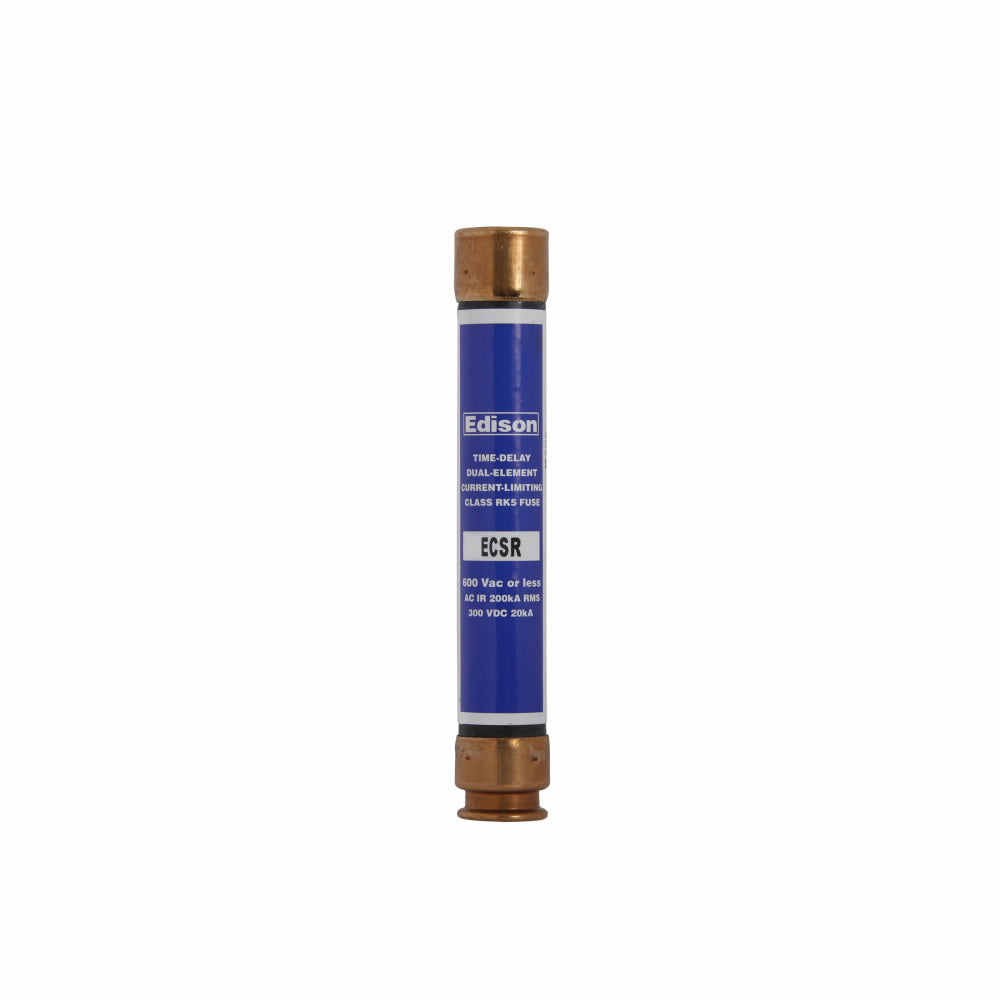

Eaton Bussmann ECSR2 is a low-voltage current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 600V AC voltage rating and a 2A current rating, providing precise overcurrent protection. The fuse is constructed with a single-barrel ferrule connection in a compact 5-inch long by 0.81-inch diameter body, weighing 0.4 lb, and is rated RK5 for a high degree of current limitation and a 200kA interrupting capacity at 600V AC. It complies with industry standards for reliable performance in demanding applications such as motor control centers, panelboards, and industrial machinery protection.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, RK5 class fuse with ferrule connection
  • Voltage Rating: 600V AC
  • Current Rating: 2A
  • Dimensions: 5 in L x 0.81 in H x 0.81 in W
  • Standards: Rated RK5 per industry standards
  • Applications: Branch circuit and feeder protection in industrial panels, motor control centers, and machinery
  • AIC rating: 200kA @ 600V AC
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 0.81 in
  • Class Rating: RK5
  • Weight: 0.4 lb


Product Identification
  • UPC: 782634508144
  • GTIN: 00782634508144
