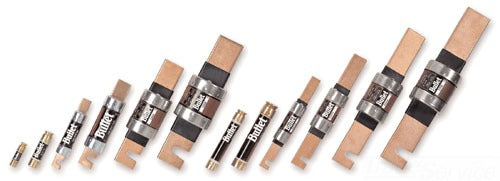

Edison Fuses ECSR0.8 - Class RK5 Fuse 0.8A 600V AC
Edison Fuses ECSR0.8 - Class RK5 Fuse 0.8A 600V AC

Edison Fuses ECSR0.8 - Class RK5 Fuse 0.8A 600V AC

Edison Fuses
Price
Save $-24.71
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Edison Fuses ECSR0.8 is a current-limiting, time-delay fuse designed for the protection of motor circuits and other inductive loads. This Class RK5 fuse is rated for 0.8 amps at 600 volts AC, providing reliable overcurrent protection with a 200,000 amp interrupting capacity. Constructed with a ferrule-type body, it measures 13/32 inches in diameter by 1.5 inches in length, and weighs 5.19 lb. The fuse complies with UL and CSA standards, ensuring robust performance in industrial environments. Typical applications include motor control centers, panelboards, and feeder circuits where high fault current protection is required.

Key Features & Specifications
  • Type: Class RK5, current-limiting, time-delay fuse
  • Voltage Rating: 600 V AC
  • Current Rating: 0.8 A
  • Dimensions: 13/32" diameter x 1.5" length
  • Standards: UL Listed, CSA Certified
  • Applications: Motor circuit protection, feeder circuits, panelboards
  • Fuse Class: RK5
  • Mounting: Ferrule
  • Interrupting Rating: 200,000 AIC
  • Weight: 5.19 lb


Product Identification
  • UPC: 782001900800
