Square D ECB14020G3 - Molded Case Circuit Breaker 20A 480V 1P
Square D ECB14020G3 - Molded Case Circuit Breaker 20A 480V 1P

Square D ECB14020G3 - Molded Case Circuit Breaker 20A 480V 1P

Square D
Price
Save $40.20
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

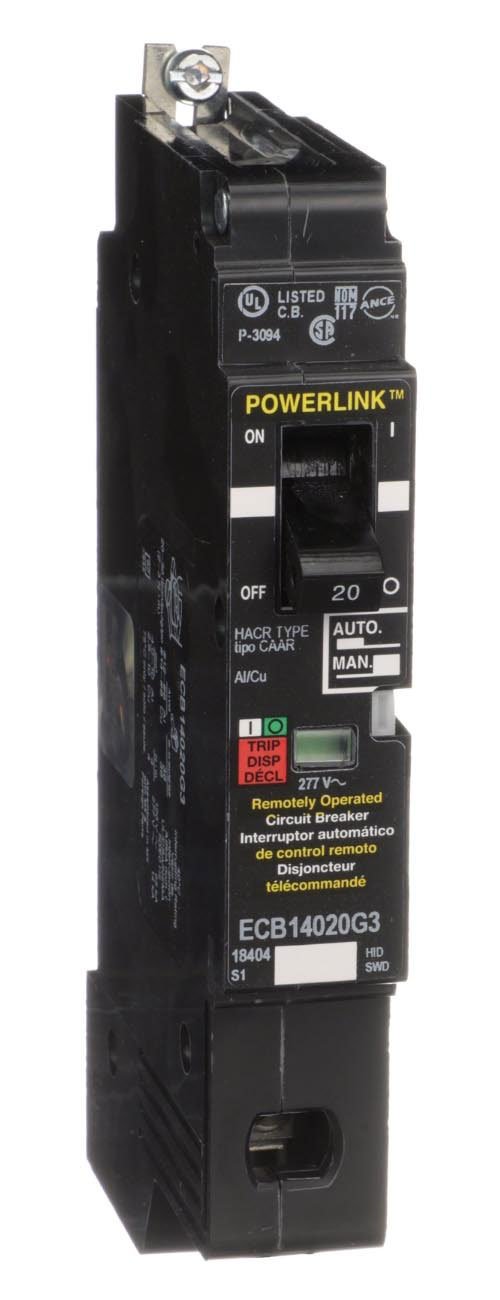

Square D ECB14020G3 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact, single-pole bolt-on frame measuring 26.38 inches in width and 39 inches in height with a weight of 1.39 lb. The breaker is UL Listed and CSA certified, ensuring compliance with North American safety standards for thermal-magnetic protection with long-time and instantaneous (LI) trip functions. Its typical applications include protecting branch circuits, motor feeders, and panelboards where a 14kA interrupting rating at 480V is required, and it accommodates copper or aluminum conductors from 8 to 12 AWG via its bolted terminals.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 26.38 in (670.05 mm) W x 39 in (990.60 mm) H
  • Standards: UL Listed, CSA
  • Applications: Industrial/Commercial Branch Circuit and Feeder Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Breaker Type: ECB-G3
  • Terminal Connection: Bolted Connection
  • Wire Size: 8-12 AWG (Copper/Aluminum)
  • Certification: UL Listed, CSA
  • Family: Powerlink
  • Country of Origin: Mexico
  • Weight: 1.39 lb


Product Identification
  • UPC: 785901000976
  • GTIN: 00785901000976
