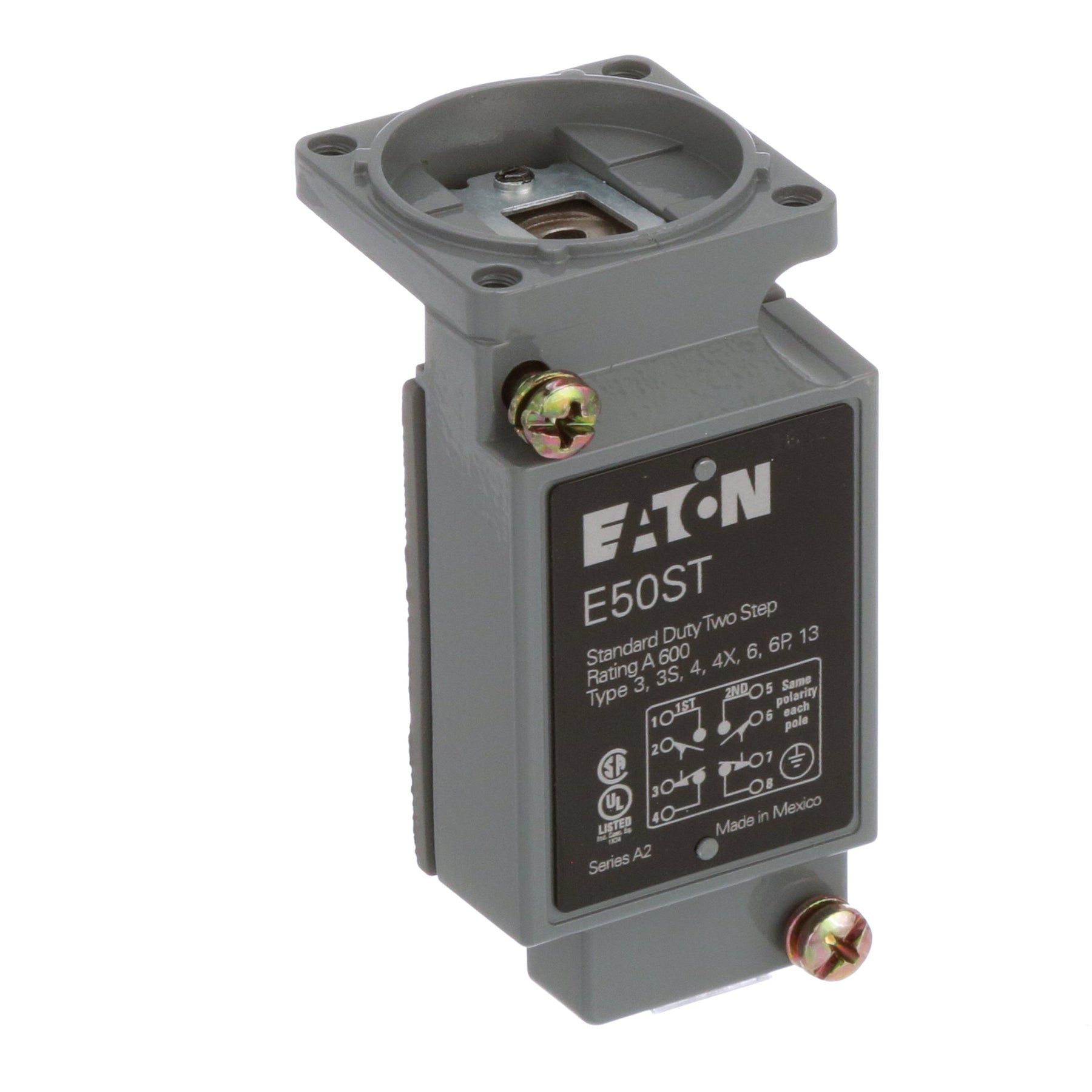

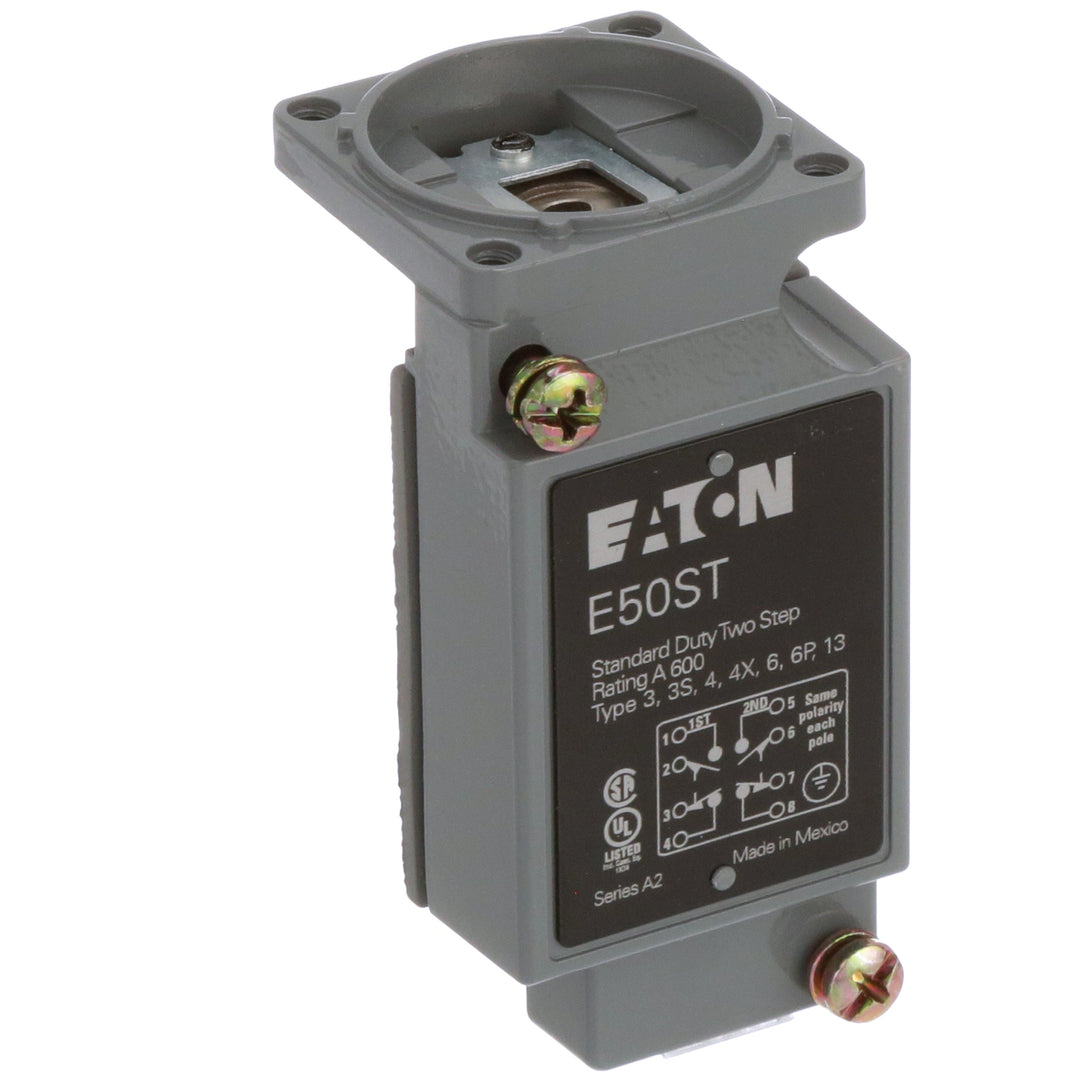

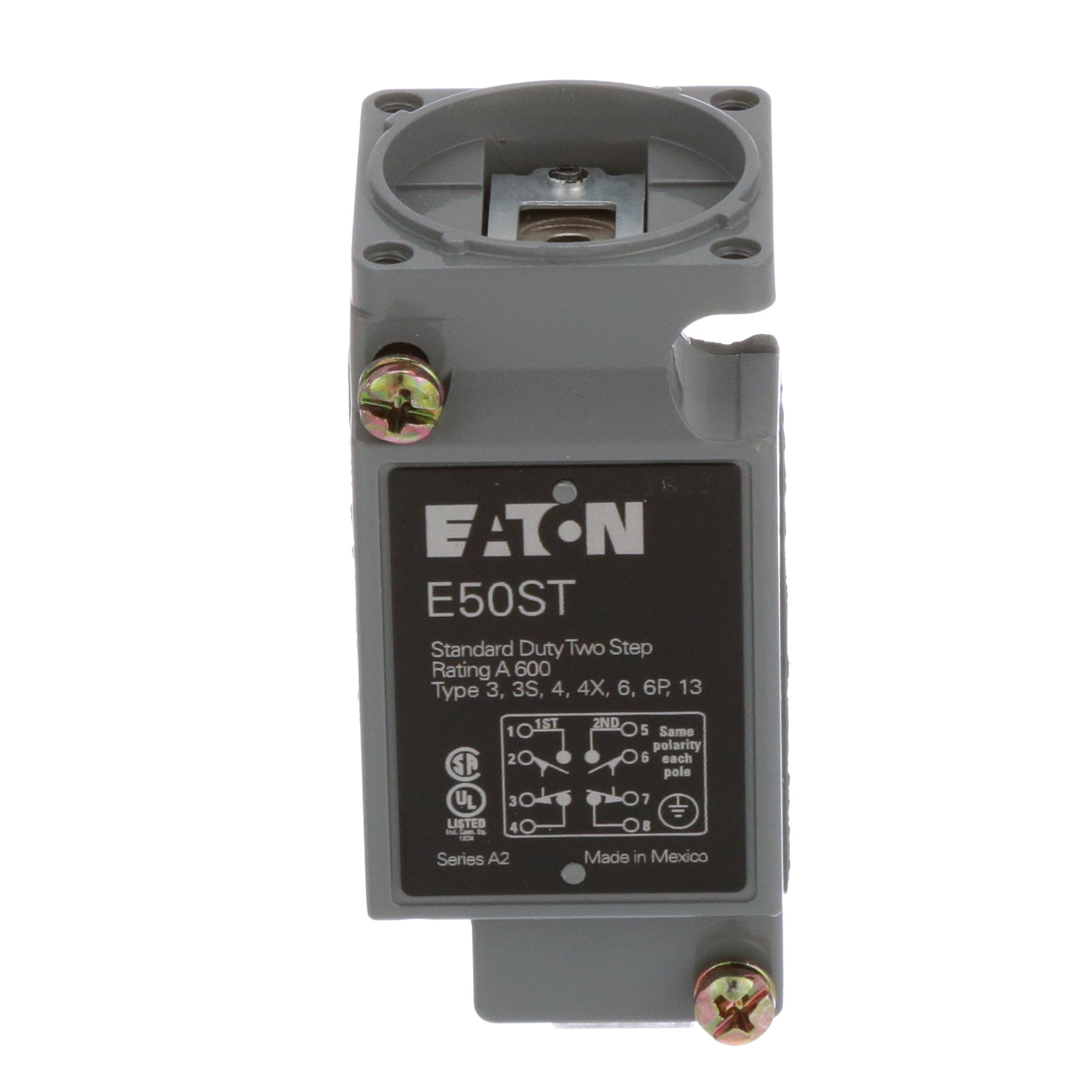

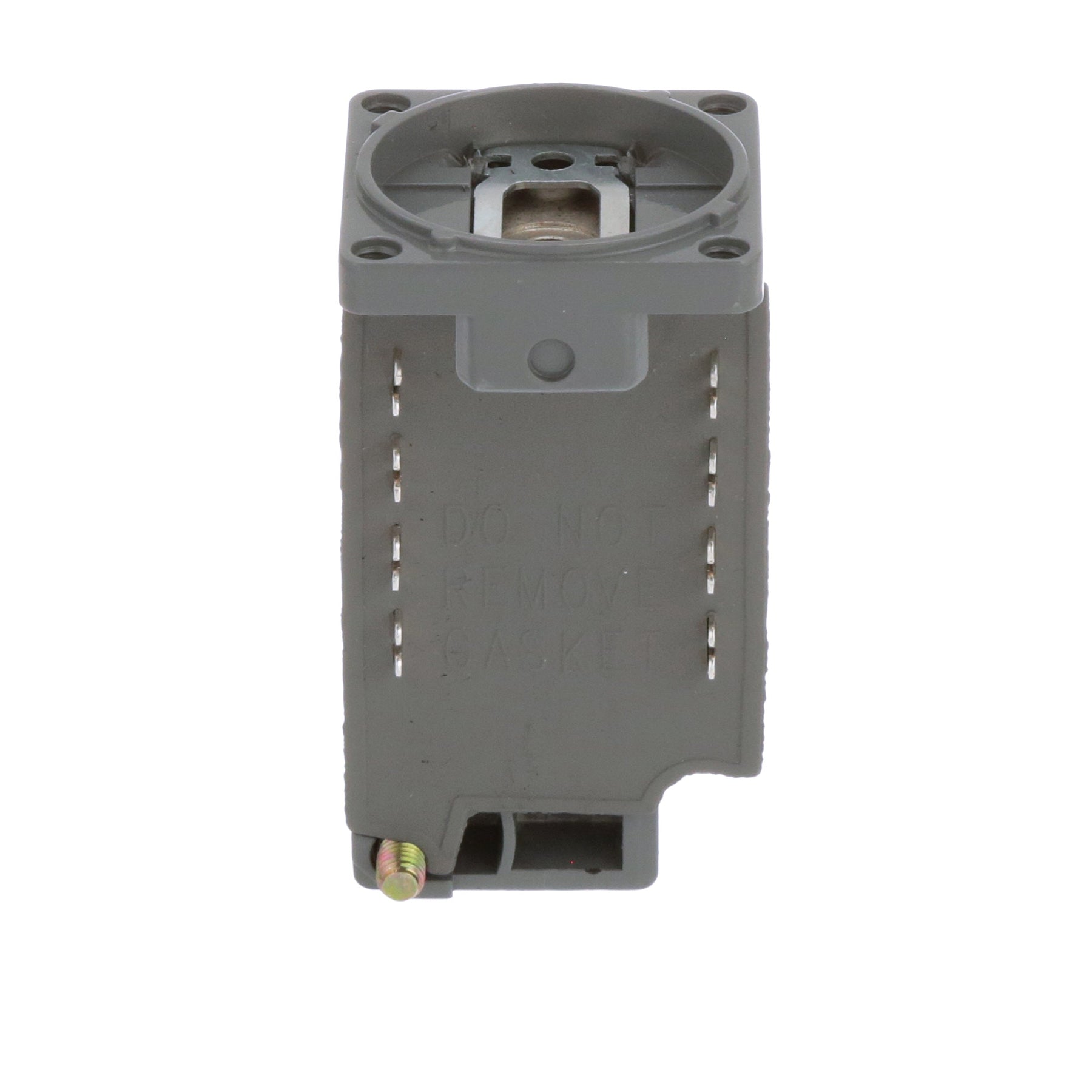

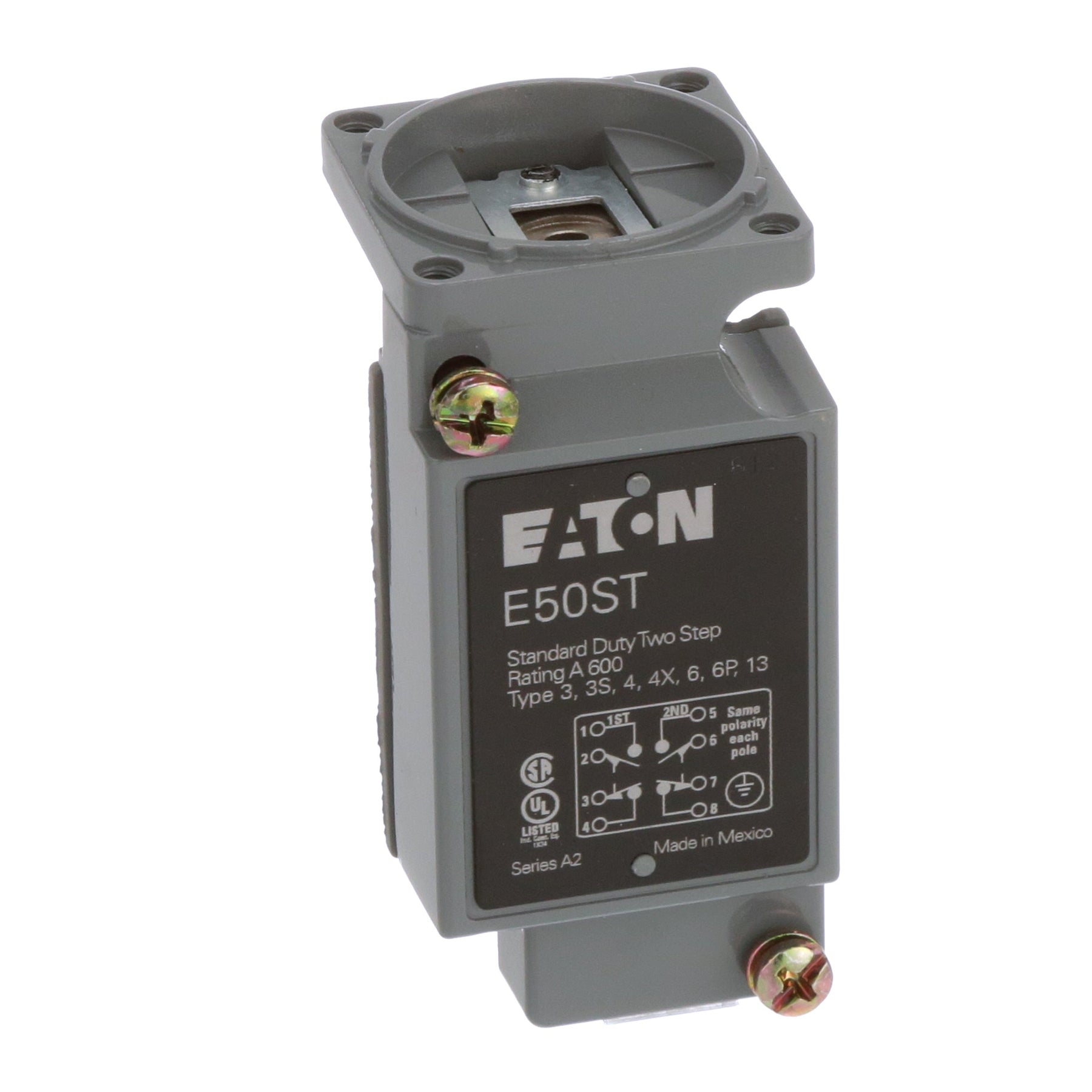

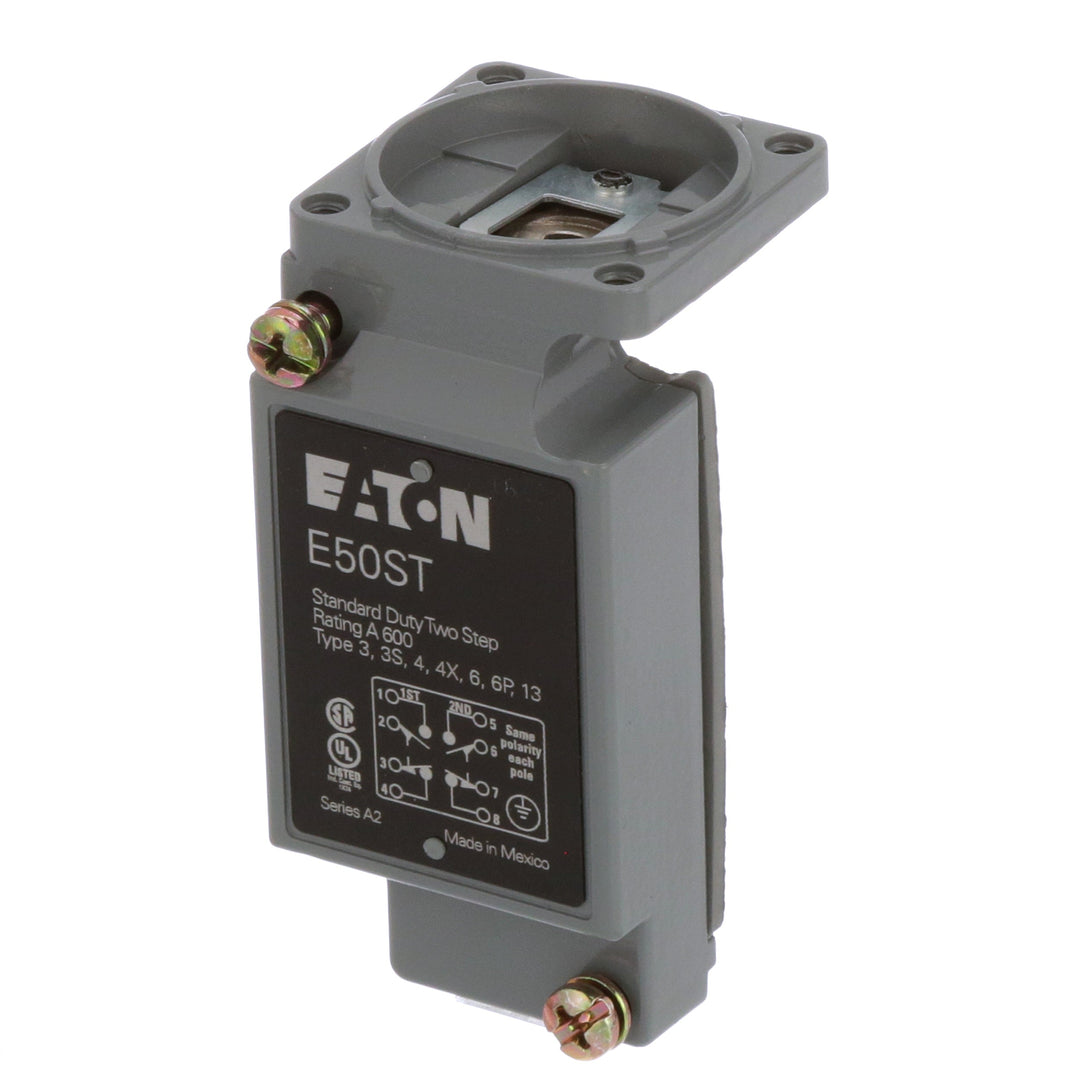

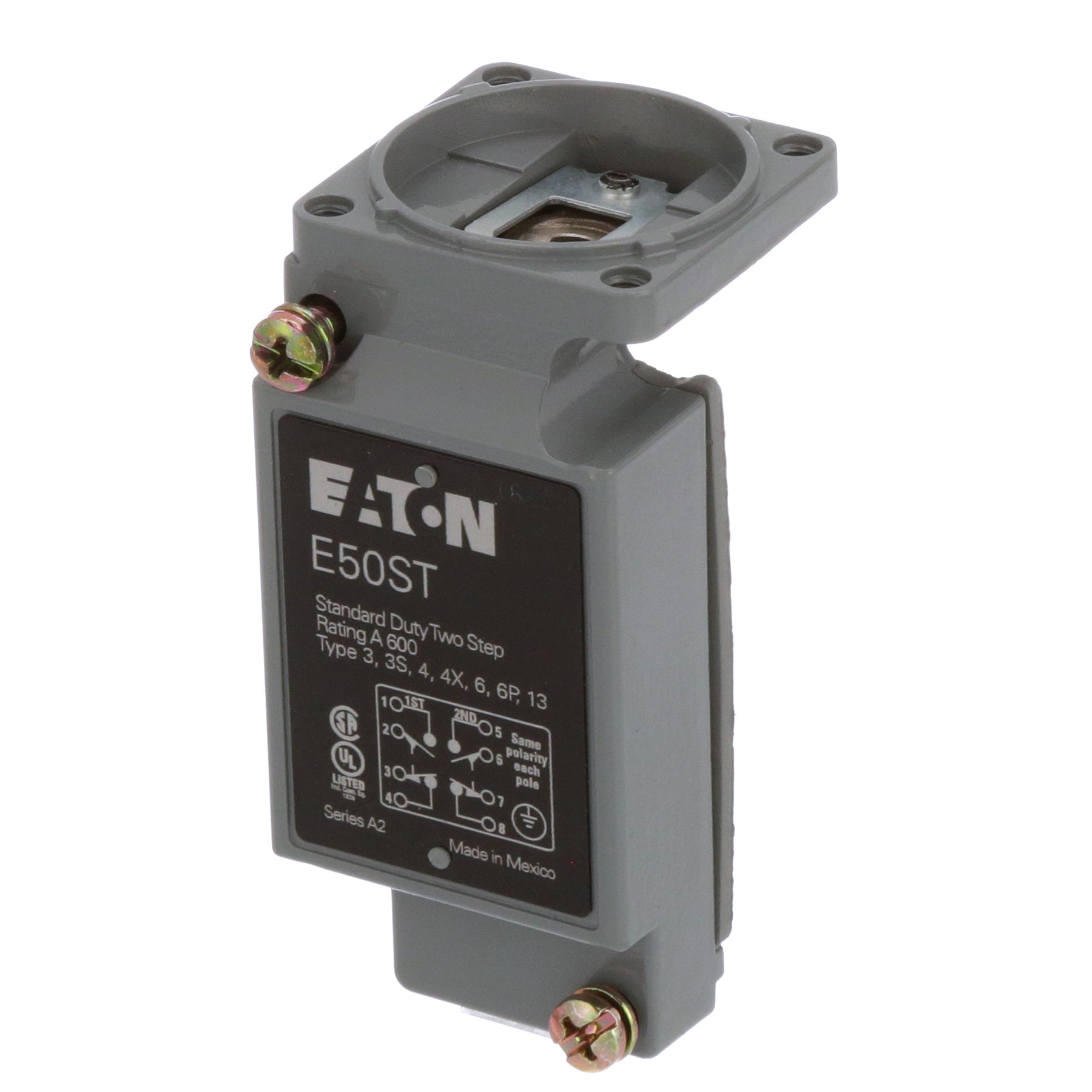

Eaton E50ST - Limit Switch 10A/600V (IP65 Zinc Alloy Enclosure)

Eaton E50ST is a heavy-duty limit switch designed for precise position sensing in industrial automation systems. It operates at 10A/600V AC/DC with a compact 0.39 lb zinc alloy housing featuring IP65-rated environmental protection. The switch meets UL 508 and CSA C22.2 No. 14 standards for industrial control equipment, making it suitable for conveyor systems, packaging machinery, and material handling applications where reliable actuation is critical.

Key Features & Specifications

• Type: E50 Series mechanical limit switch with roller plunger
• Voltage Rating: 600V AC/DC
• Current Rating: 10A resistive
• Dimensions: 1.97" x 1.18" x 2.36" (50mm x 30mm x 60mm)
• Standards: UL 508, CSA C22.2 No. 14
• Applications: Conveyors, CNC machines, automated assembly lines
• Switch Type: SPDT snap-action
• Configuration: Screw terminal connections
• Temp Rating: -25°C to +85°C
• Enclosure: IP65-rated zinc alloy
• Mounting: Standard DIN rail or panel mount
• Certification: CE, RoHS compliant

Product Identification

• UPC: 78211330881
• GTIN: 00782113308814
