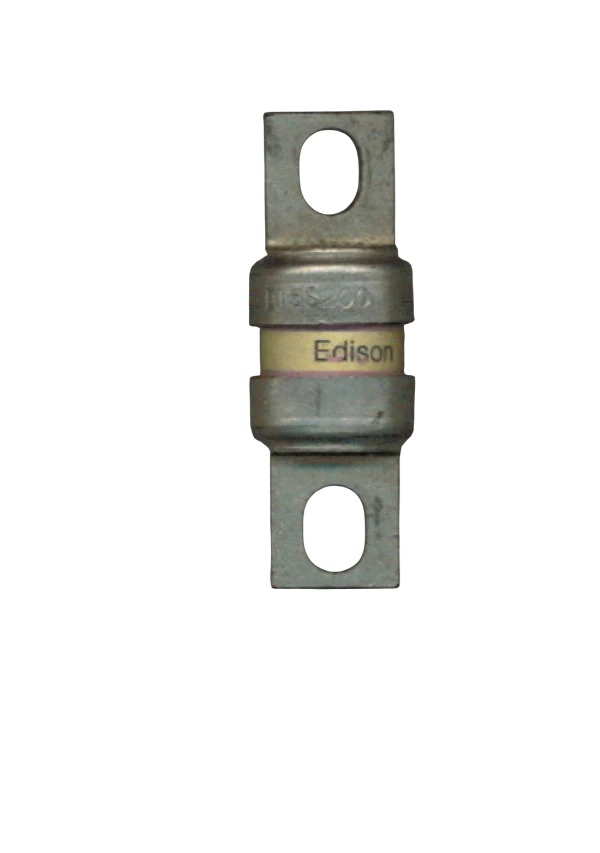

Edison Fuses E15S125 - Class J 125A Time-Delay Fuse (600V AC/DC)
Edison Fuses E15S125 - Class J 125A Time-Delay Fuse (600V AC/DC)

Edison Fuses E15S125 - Class J 125A Time-Delay Fuse (600V AC/DC)

Edison Fuses
Price
Save $-27.56
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Edison Fuses E15S125 is a 125-amp, 600-volt AC/DC Class J time-delay fuse designed for overcurrent protection of motor circuits, feeders, and branch circuits in industrial power distribution systems. This fuse provides a high interrupting rating of 200,000 amps RMS symmetrical to safely clear severe fault currents while its time-delay characteristic allows for temporary inrush currents from motors and transformers without nuisance opening. Constructed with a melamine tube body and silver-plated end caps, the E15S125 measures 2.75 inches in length with a 1.06-inch diameter and weighs 11.2 lb. It complies with UL 248-8 and CSA C22.2 No. 248.8 standards for Class J fuses, ensuring reliable performance in switchboards, panelboards, and motor control centers. Typical applications include protection of motors, transformers, lighting panels, and general industrial equipment requiring a compact, high-interrupting fuse solution.

Key Features & Specifications
  • Type: Class J, time-delay, melamine tube, silver-plated end caps
  • Voltage Rating: 600 V AC/DC
  • Current Rating: 125 A
  • Dimensions: 2.75 in length, 1.06 in diameter
  • Standards: UL 248-8, CSA C22.2 No. 248.8
  • Applications: Motor circuits, feeders, branch circuits, transformers, lighting panels
  • Fuse Class: J
  • AIC rating: 200,000 A RMS symmetrical
  • Weight: 11.2 lb


Product Identification
  • UPC:
  • GTIN:
