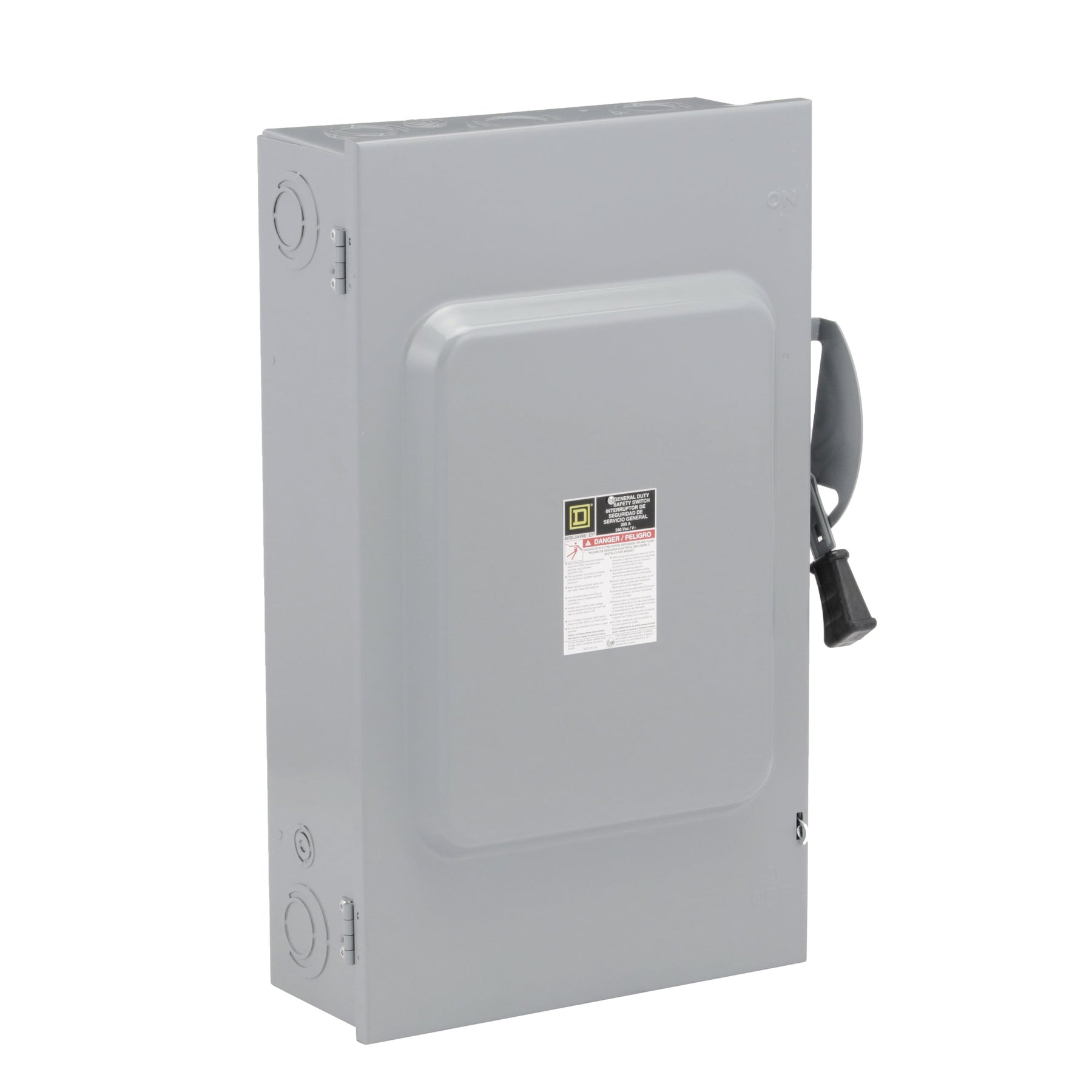

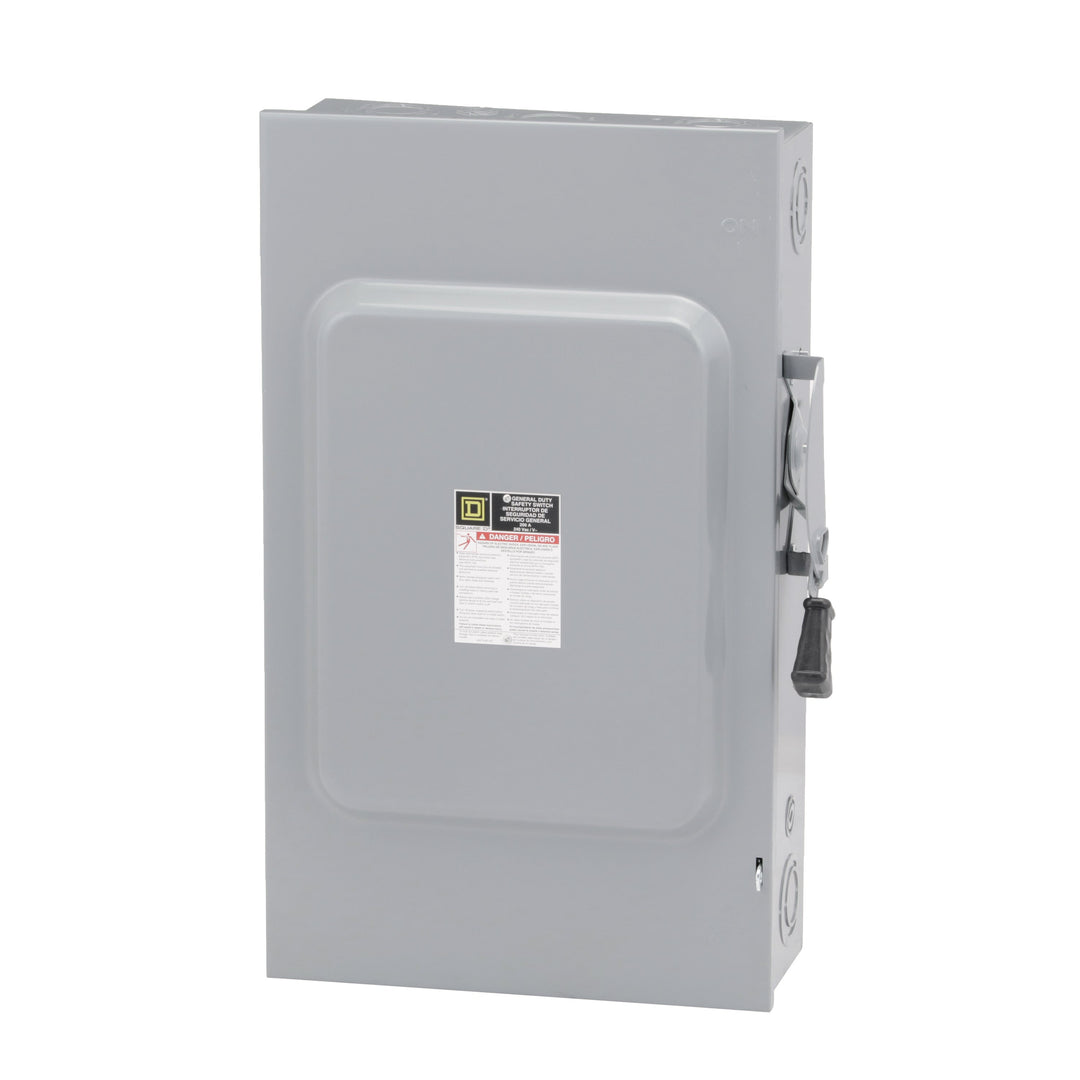

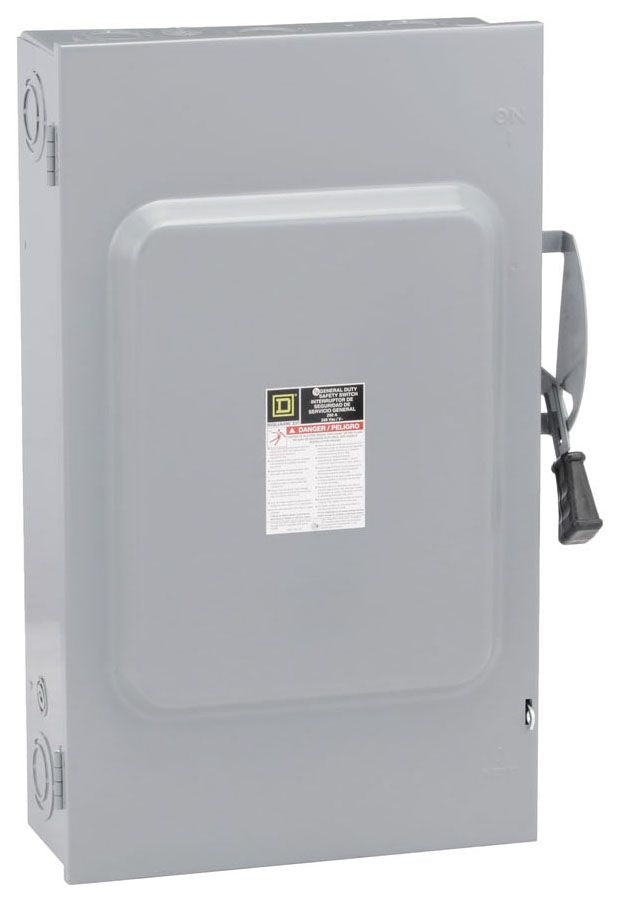

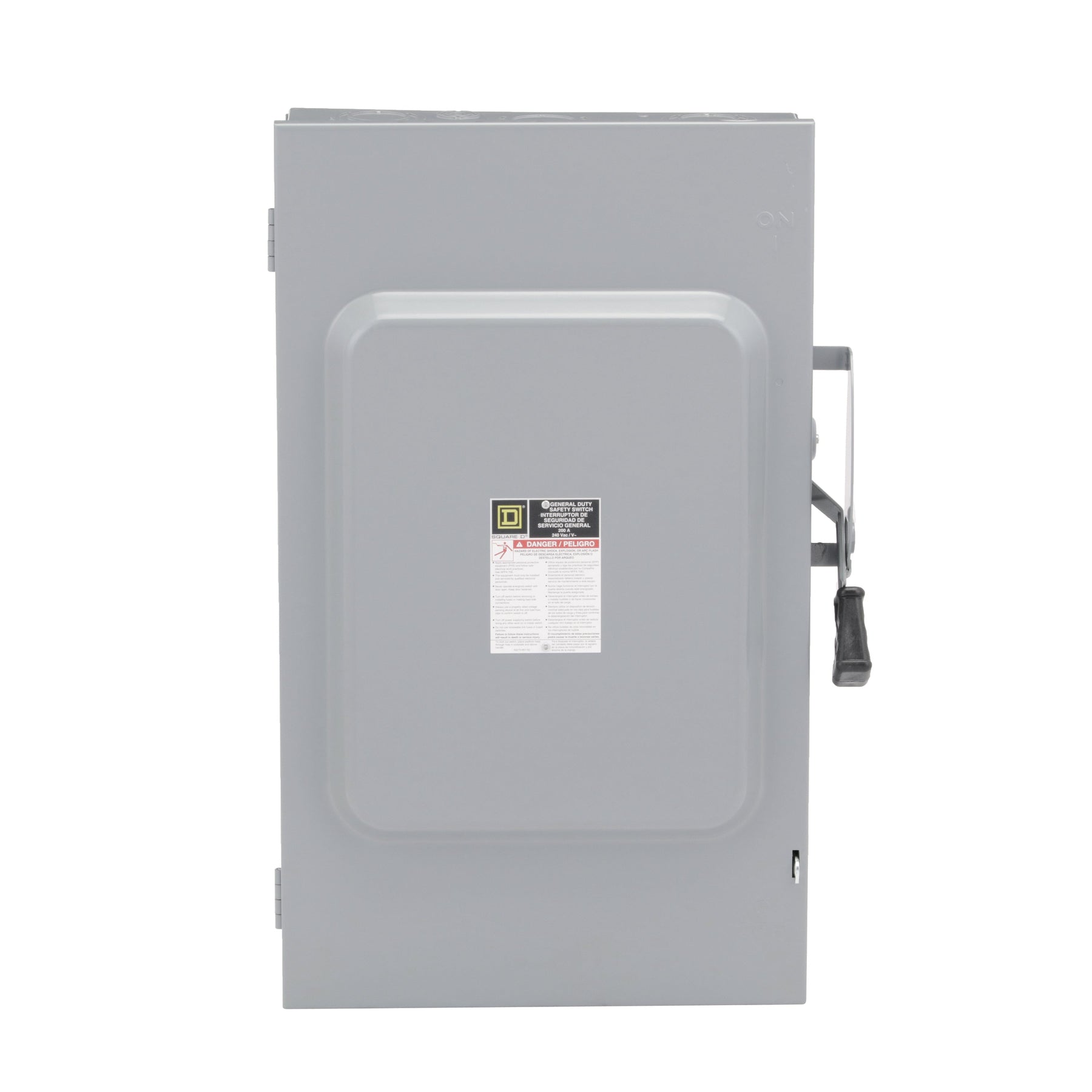

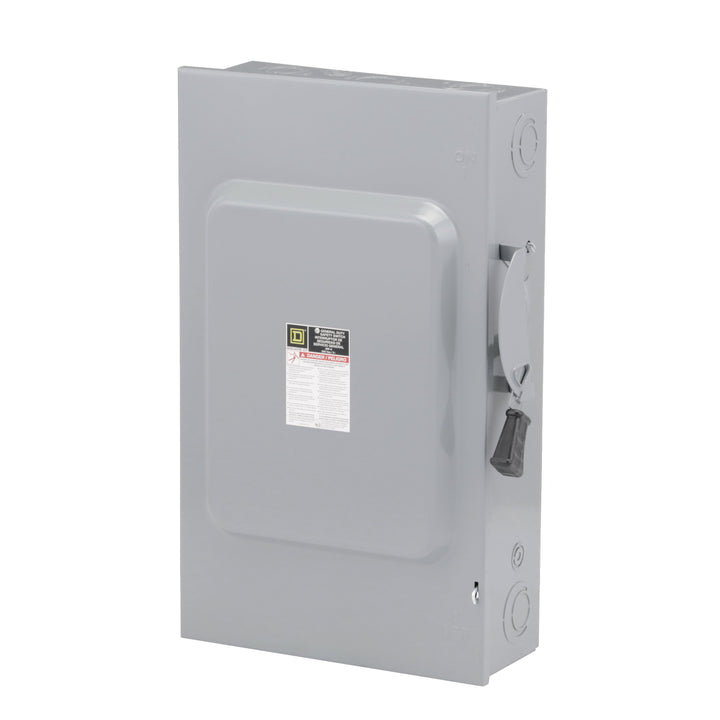

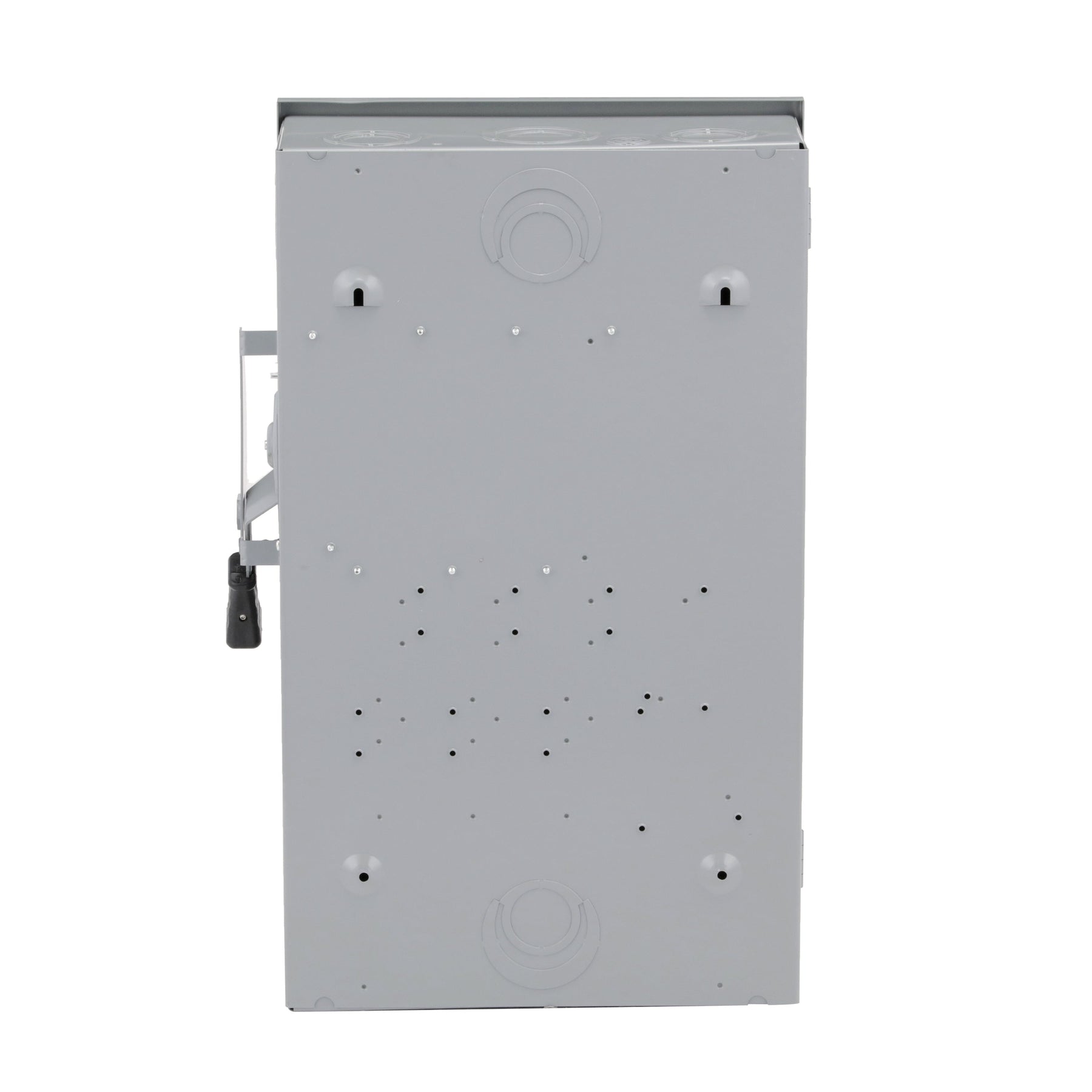

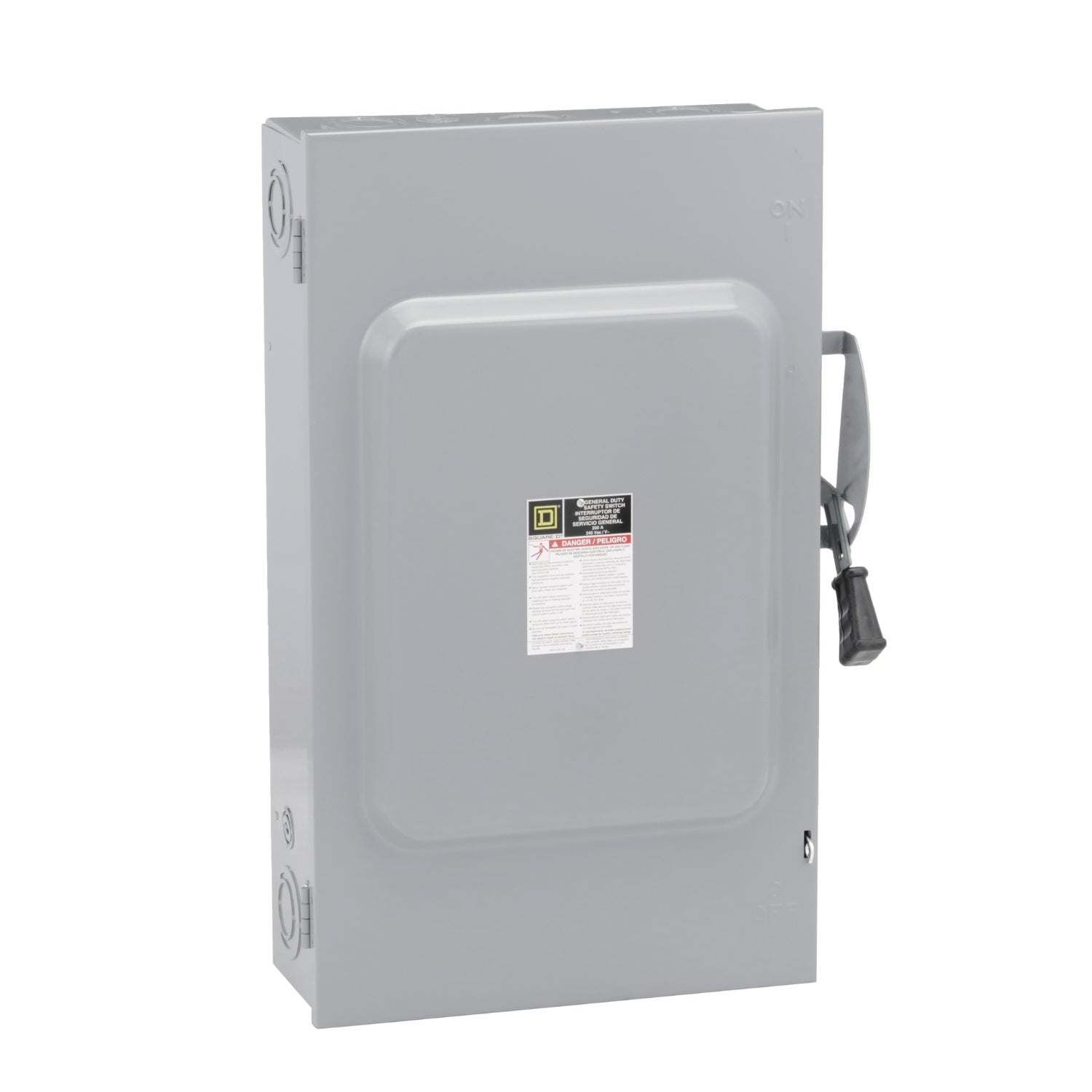

Square D DU324 - Non-Fusible Disconnect Switch 200A 3-Pole (100kA AIC @240V)

Square D DU324 is a non-fusible safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. It features a 240V AC voltage rating and 200A current capacity for robust three-phase power control applications. The switch is constructed with a durable NEMA 1 enclosure measuring 19" x 8.25" x 29" (WxDxH) and weighs 60 lb, featuring a single configuration with three poles for comprehensive circuit protection. UL listed certification ensures compliance with industry safety standards, while its 100kA@240V AIC rating provides substantial interrupting capacity. This disconnect is engineered for industrial environments requiring safe maintenance procedures and power distribution control in compatible NSE frame systems.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, Series F family, DU type
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 19" x 8.25" x 29" (WxDxH)
• Weight: 60 lb
• Standards: UL listed
• Applications: Industrial power distribution, circuit isolation, load breaking
• Switch Type: Non-Fusible Disconnect
• Configuration: Single
• Phase: 3-phase
• Poles: 3
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 1
• Panel Type: 2 panel power supply
• Compatible Frames: NSE
• Country of Origin: United States

Product Identification

• UPC: 785901491866
• GTIN: 00785901491866
