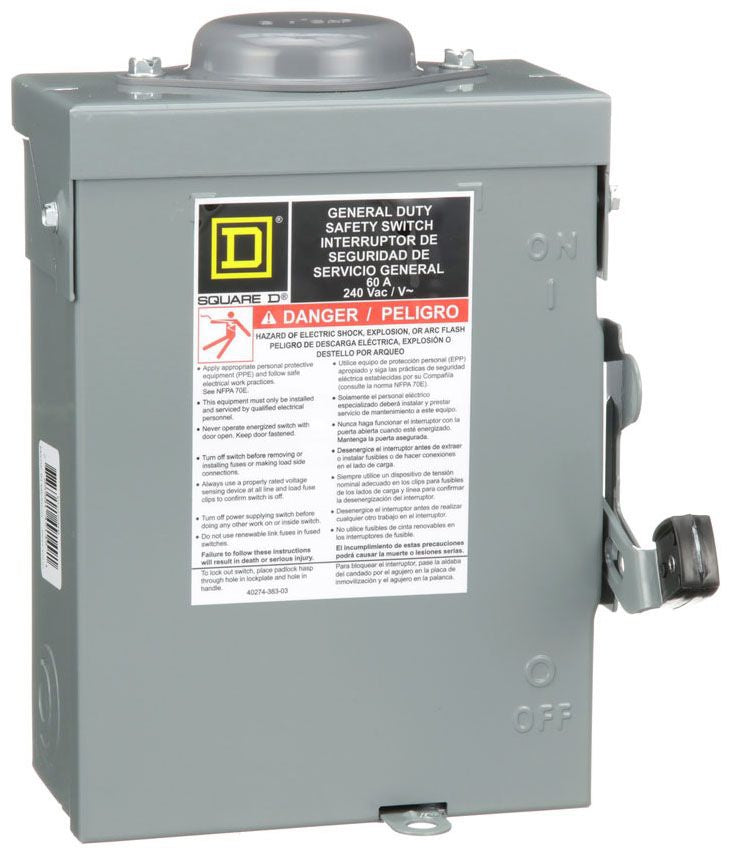

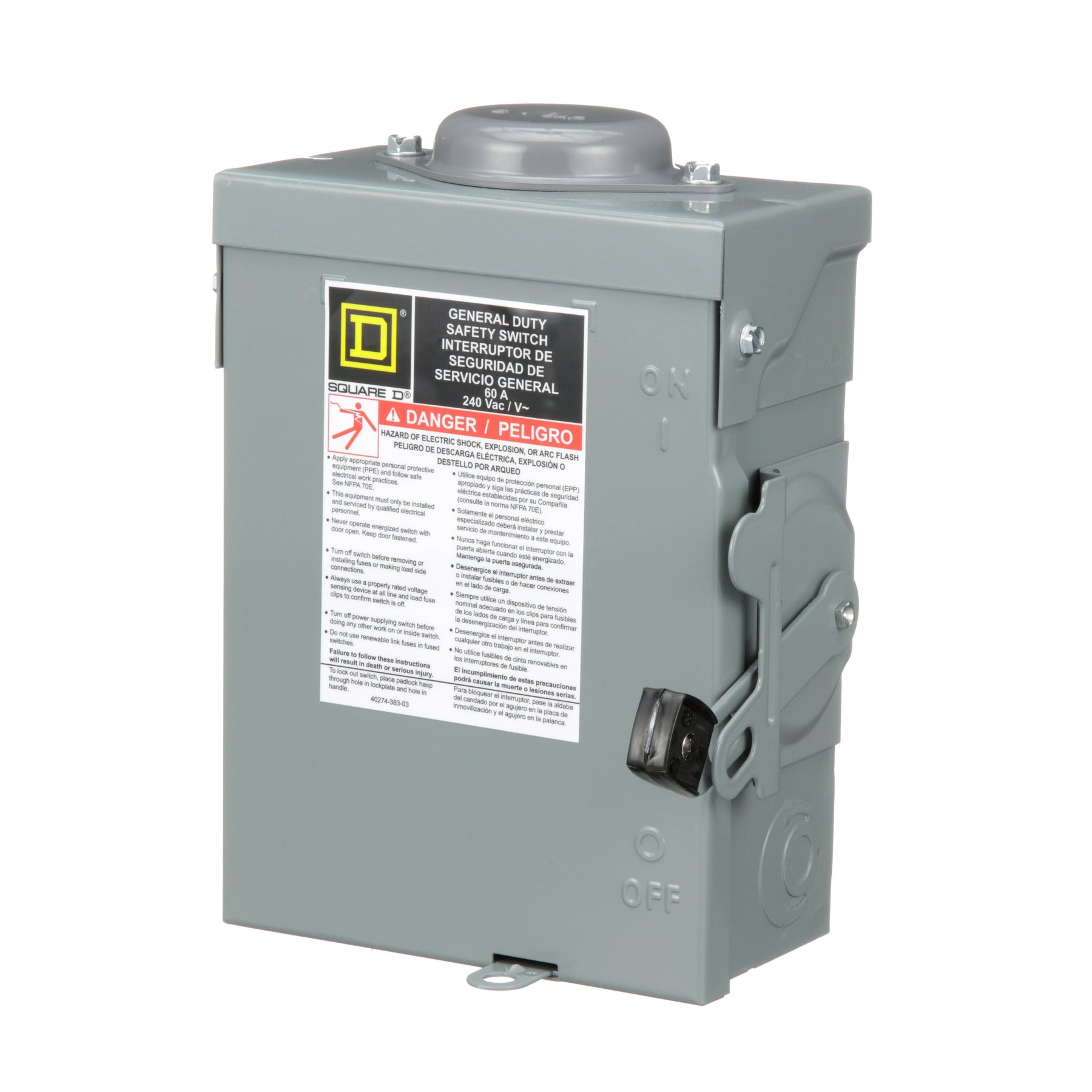

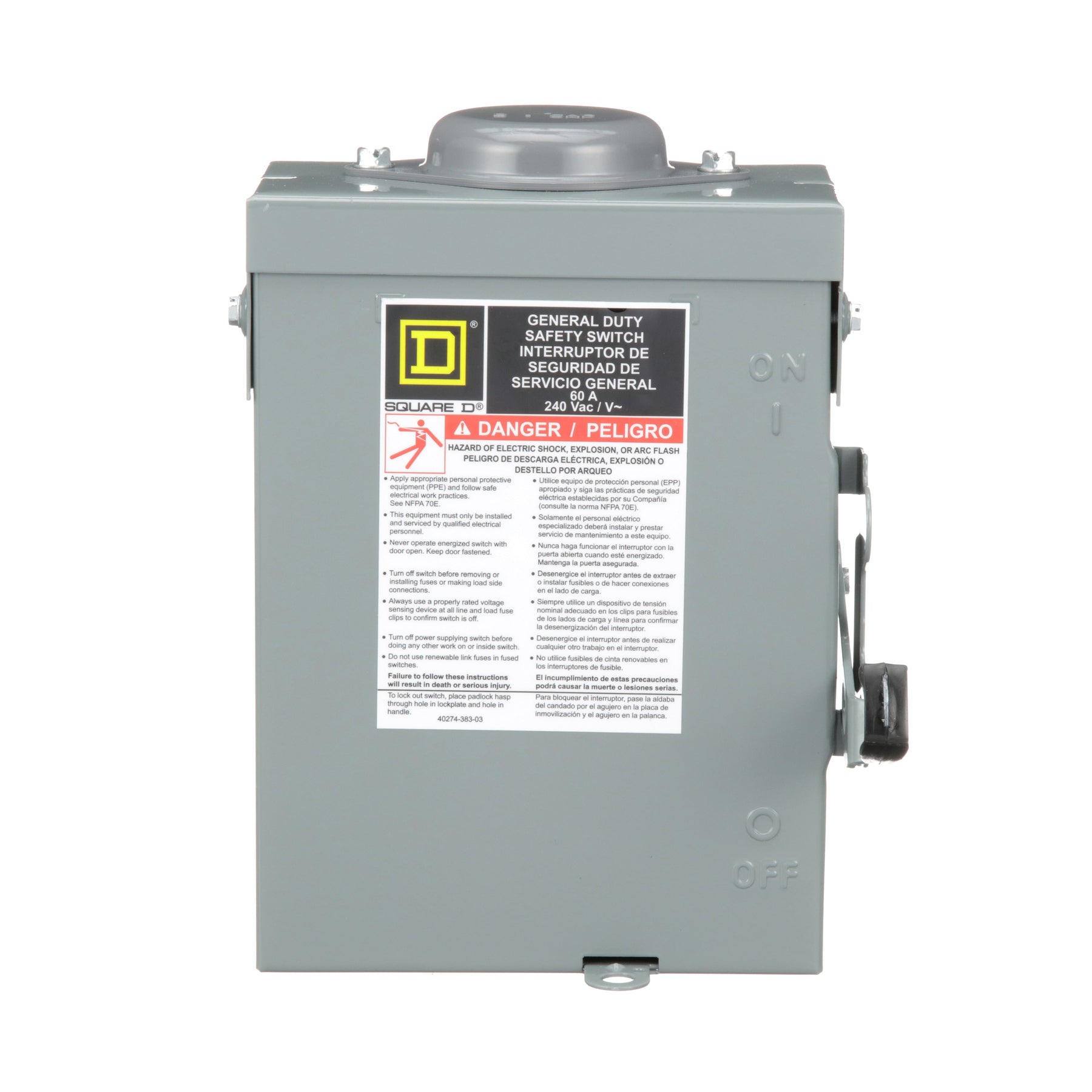

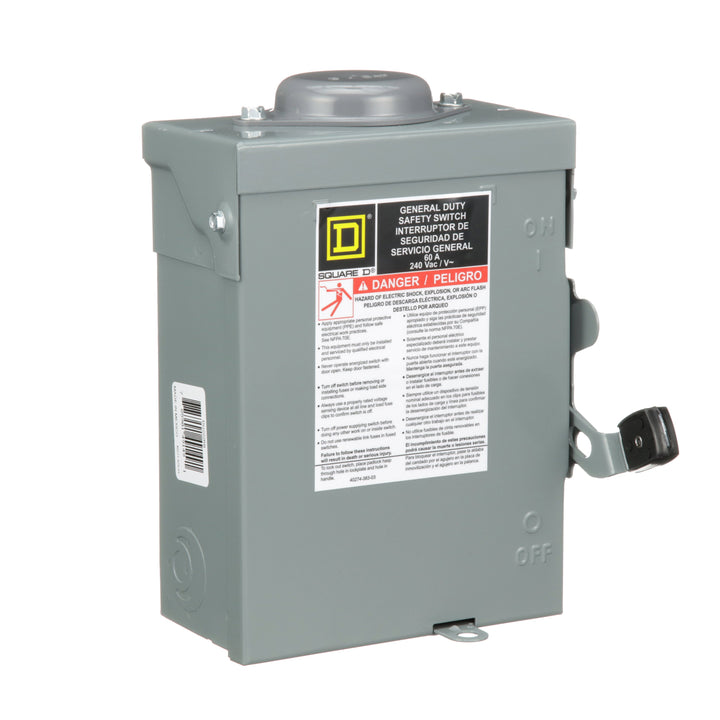

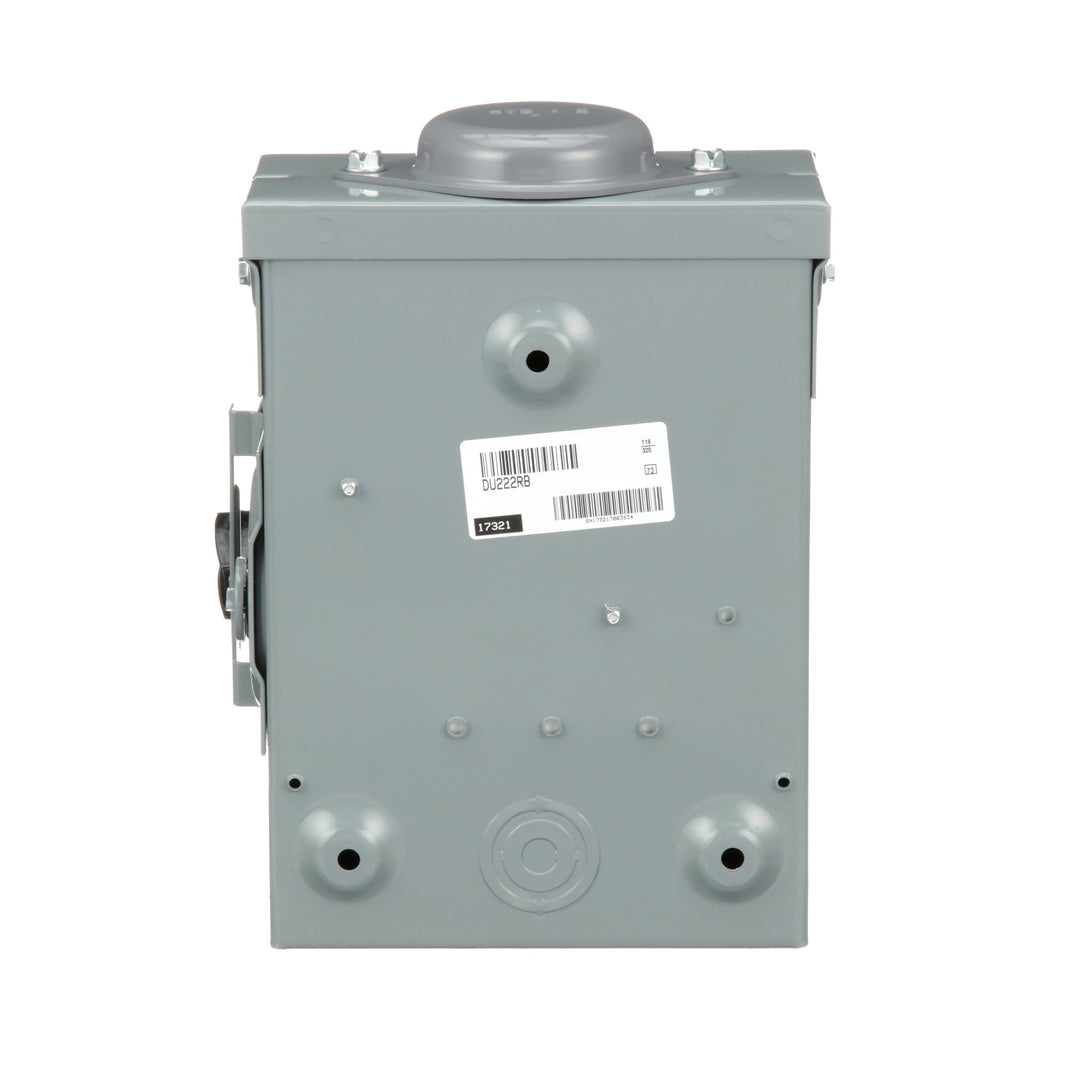

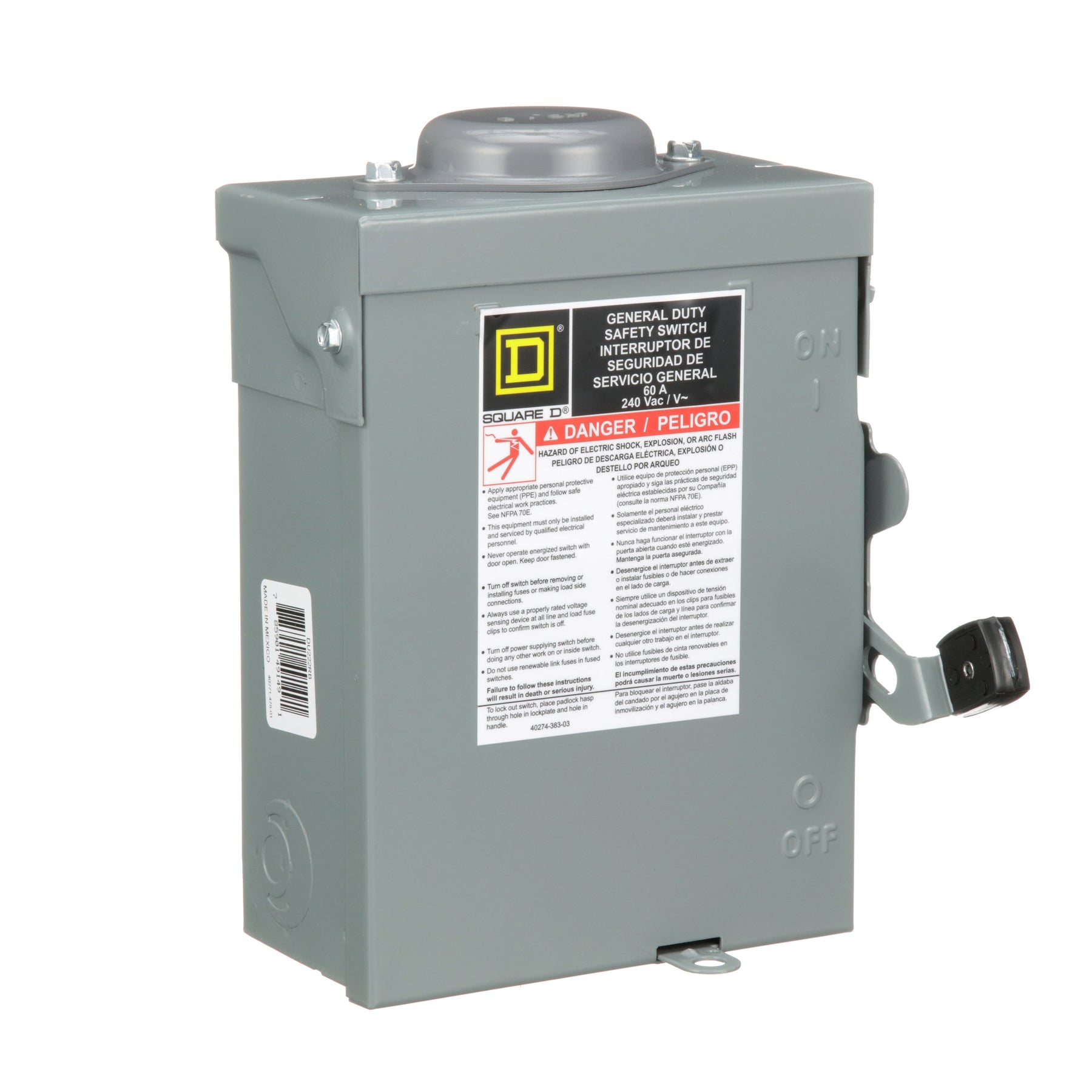

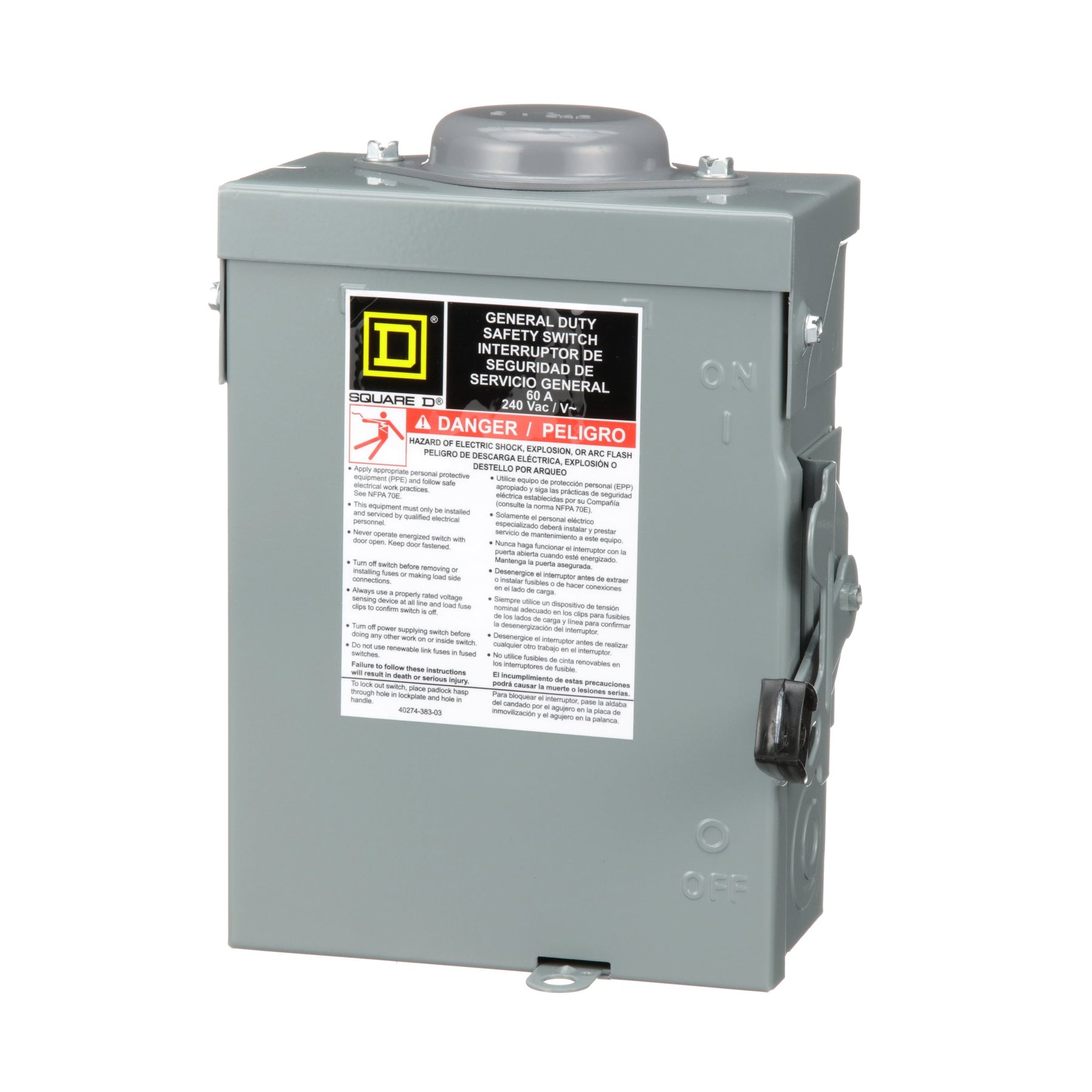

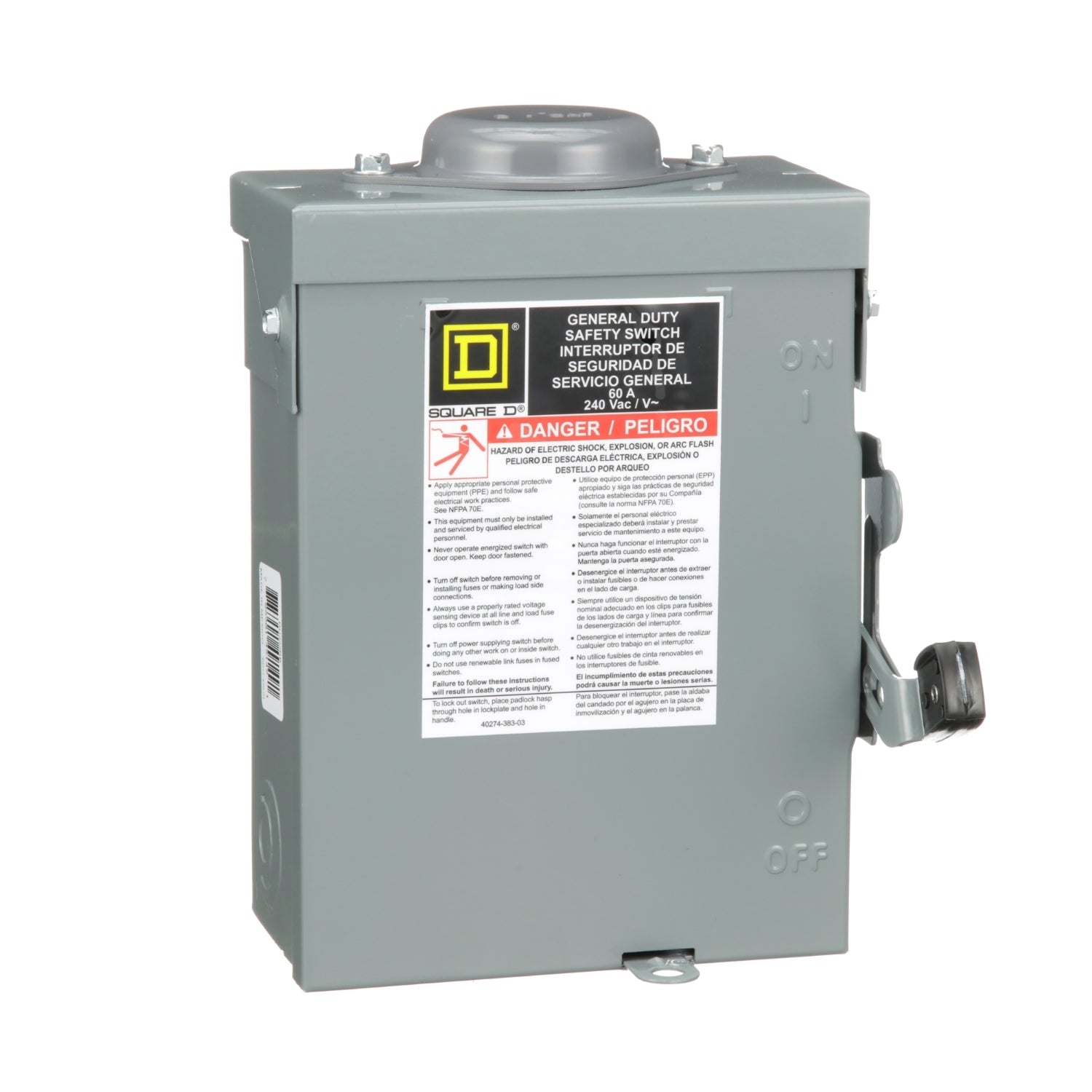

Square D DU222RB is a non-fusible safety disconnect switch designed for providing a visible means of isolation and protection in industrial power circuits. It is rated for 240V AC, 60A, single-phase operation and features a robust two-pole, single-configuration design housed in a NEMA 3R enclosure measuring 9.63 in (244.60 mm) H x 7.75 in (196.85 mm) W x 3.75 in (95.25 mm) D with a weight of 4.63 lb. The switch is UL listed and offers a high interrupting capacity of 100kA at 240V, ensuring reliable performance and safety compliance. Its construction makes it suitable for a wide range of applications including motor control centers, HVAC systems, and industrial machinery where a visible disconnect is required.
Key Features & Specifications
Type: Non-Fusible Safety Disconnect Switch, Series E, DU Type
Voltage Rating: 240V AC
Current Rating: 60A
Dimensions: 9.63 in (244.60 mm) H x 7.75 in (196.85 mm) W x 3.75 in (95.25 mm) D
Standards: UL Listed
Applications: Motor Control Centers, HVAC, Industrial Machinery Isolation
Switch Type: Non-Fusible
Configuration: Single
Poles: 2
AIC Rating: 100kA @ 240V
NEMA Rating: NEMA 3R
Phase: 1
Weight: 4.63 lb
Country of Origin: Mexico
Product Identification
UPC: 785901491491
GTIN: 00785901491491
