Square D DTU361RB - Non-Fusible Disconnect 30A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

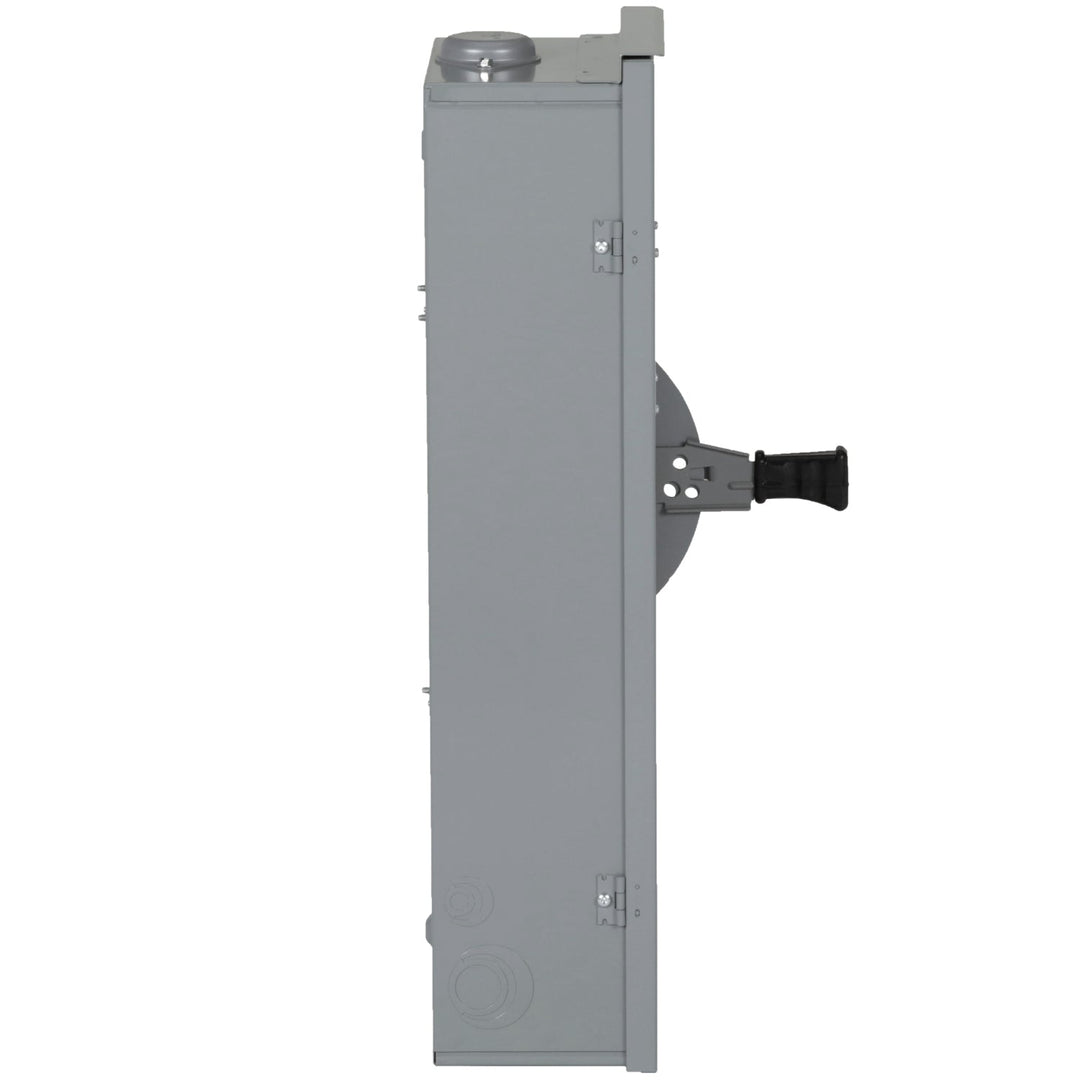

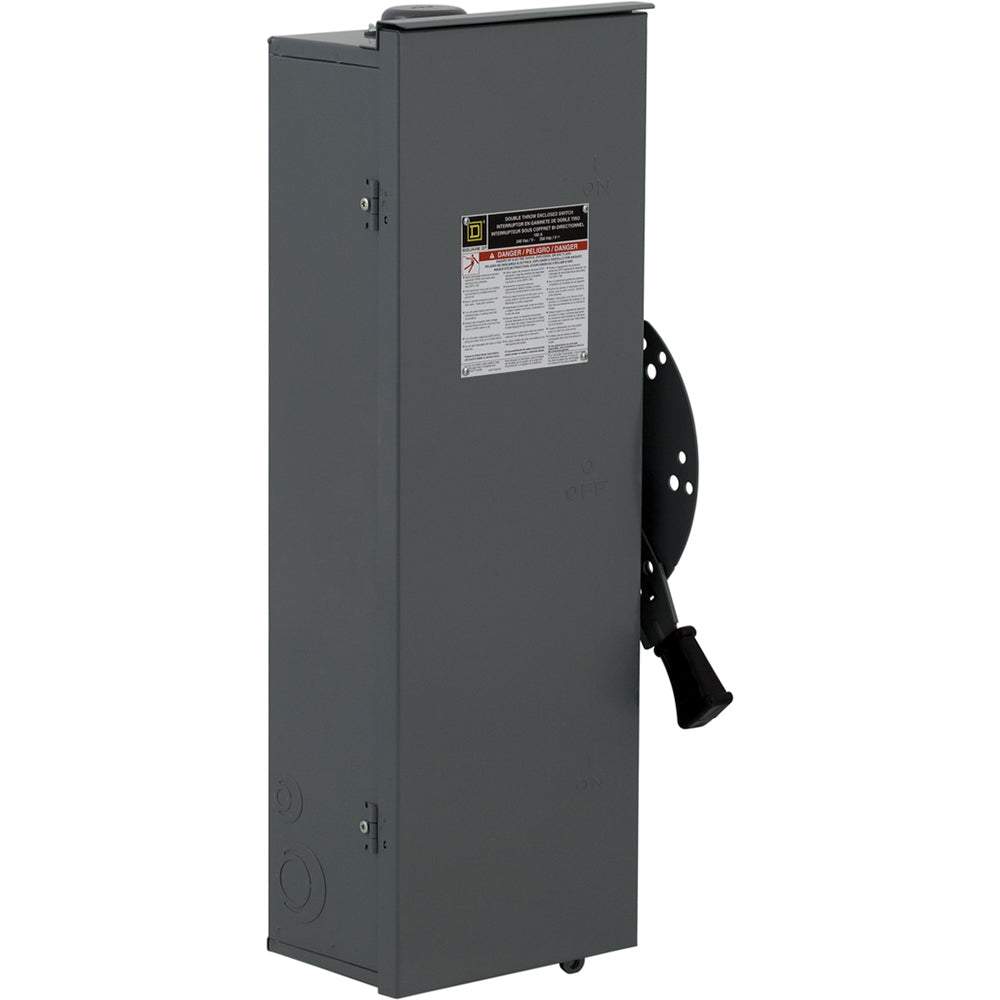

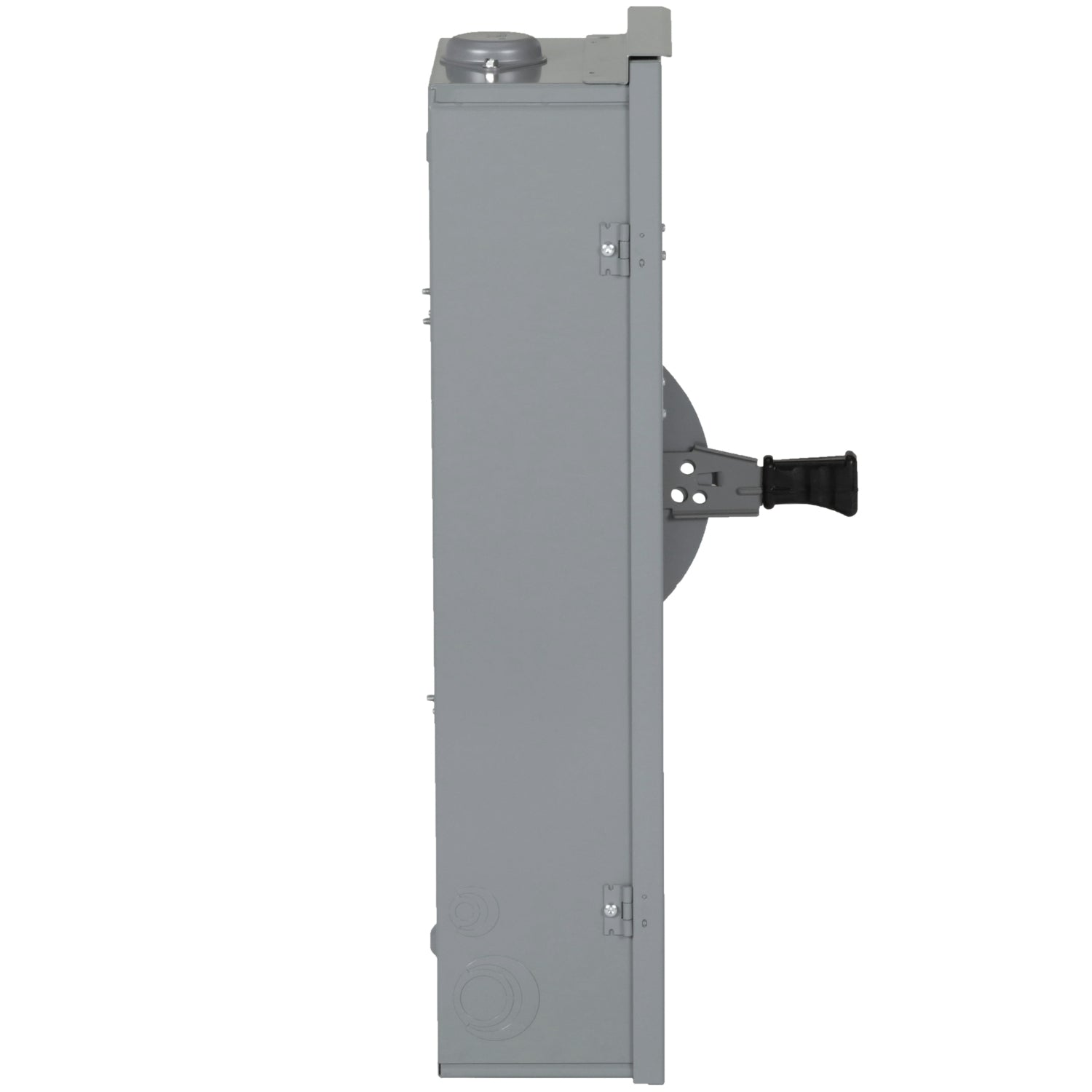

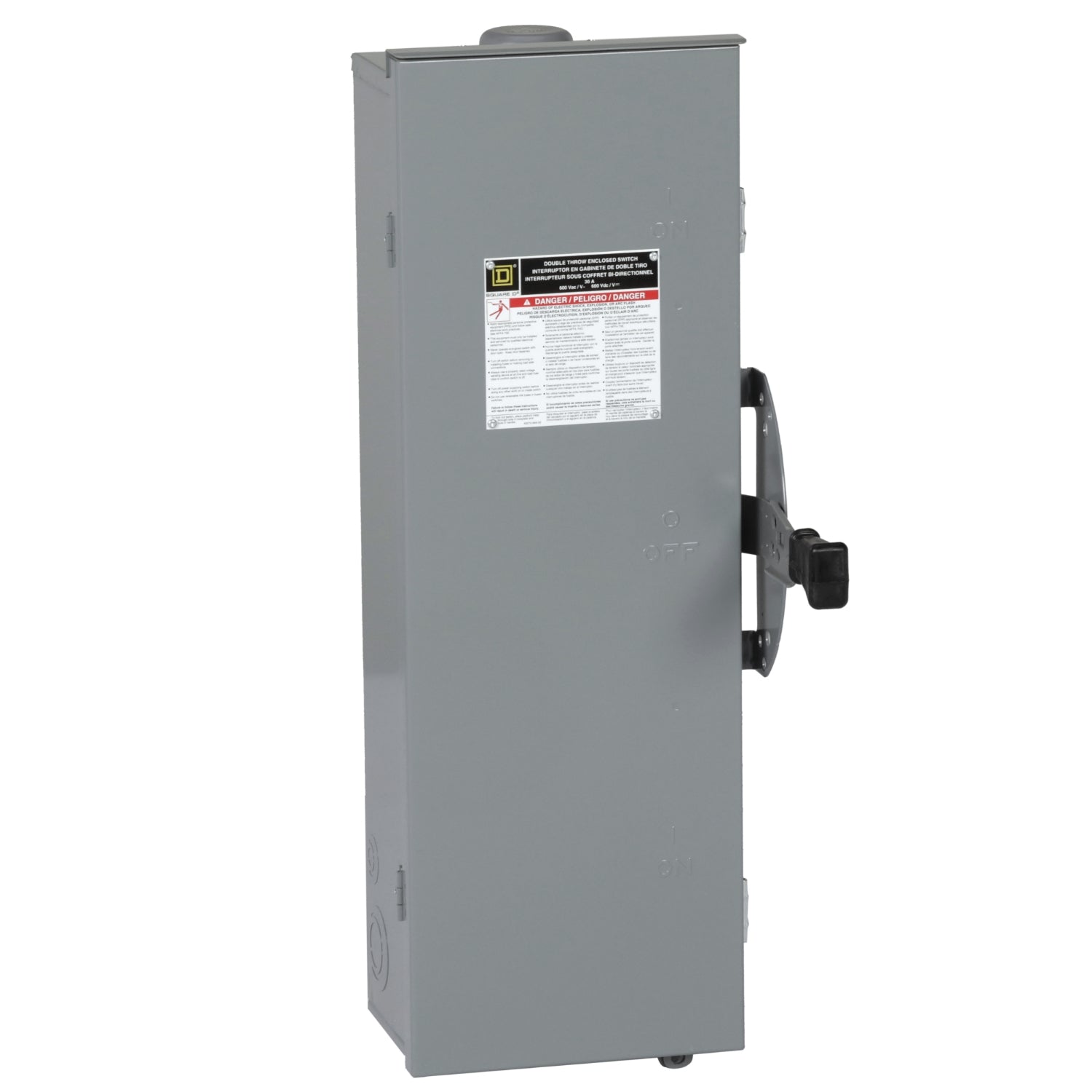

Square D DTU361RB is a non-fusible safety disconnect switch designed for isolating three-phase electrical circuits in industrial applications. It provides a visible break for maintenance safety, rated for 30A at 600V AC with a 200kA interrupting capacity. The unit is constructed with a rugged NEMA 3R enclosure measuring 774.7 mm H x 265.43 mm W x 176.02 mm D and weighs 37 lb, featuring three poles and accepting copper or aluminum wire from AWG 14 to AWG 2. It is UL listed and compatible with RLF frames, making it suitable for use in motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, 3-Pole, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 774.7 mm H x 265.43 mm W x 176.02 mm D (30.5 in x 10.45 in x 6.93 in)
  • Weight: 37 lb
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution Isolation
  • Switch Style: Non-Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Wire: 3
  • Wire Size: AWG 12 to AWG 2, AWG 14 to AWG 2 (Aluminum/Copper)
  • Compatible Frames: RLF
  • Country of Origin: United States


Product Identification
  • UPC: 78590130875
  • GTIN: 00785901308751
