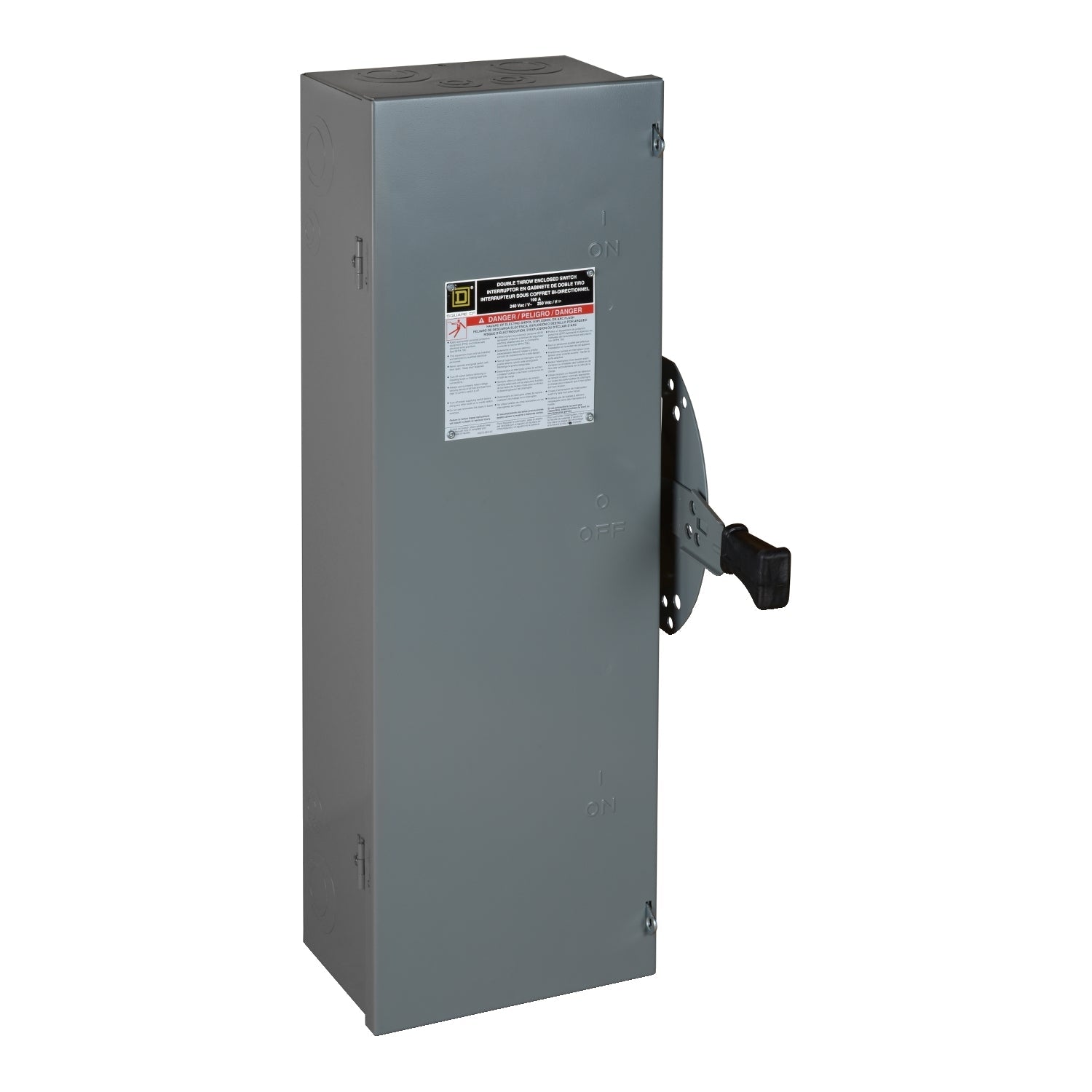

Square D DTU223 is a non-fusible safety disconnect switch designed for providing a visible break and safe isolation of electrical circuits in industrial applications. It is rated for 100A at 240V AC/DC and features a robust two-pole, single-phase configuration housed in a NEMA 1 enclosure measuring 760.48 mm H x 303.78 mm W x 176.02 mm D with a weight of 44 lb. The switch is UL listed and offers a high interrupting capacity of 200kA at 240V, ensuring reliable protection and compliance with industry safety standards. Its design accommodates wire sizes from AWG 12 to 1/0 for aluminum and AWG 14 to 1/0 for copper, making it suitable for use in motor control centers, panelboards, and other power distribution equipment requiring a manual disconnect.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, DTU Type, Series F Family
  • Voltage Rating: 240V AC/DC
  • Current Rating: 100A
  • Dimensions: 760.48 mm H x 303.78 mm W x 176.02 mm D (29.94 in x 11.96 in x 6.93 in)
  • Weight: 44 lb
  • Standards: UL Listed
  • Applications: Industrial motor control centers, panelboards, and power distribution isolation
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Wire Size: AWG 12 to 1/0 Aluminum, AWG 14 to 1/0 Copper
  • NEMA Rating: NEMA 1
  • Compatible Frames: RLF
  • Fuse Class Compatibility: H, K, R, J, T
  • Country of Origin: United States


Product Identification
  • UPC: 78590130864
  • GTIN: 00785901308645
