Siemens DTNF362S - Non-Fusible Disconnect Switch, 600V 60A 3-Pole

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

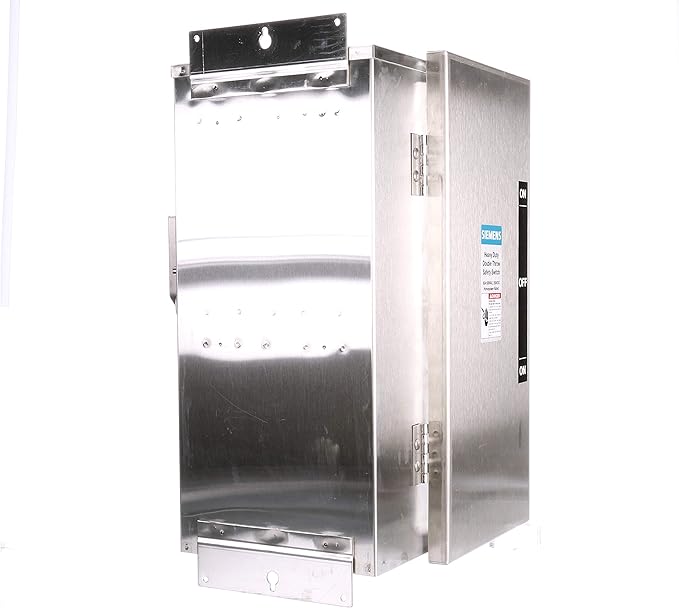

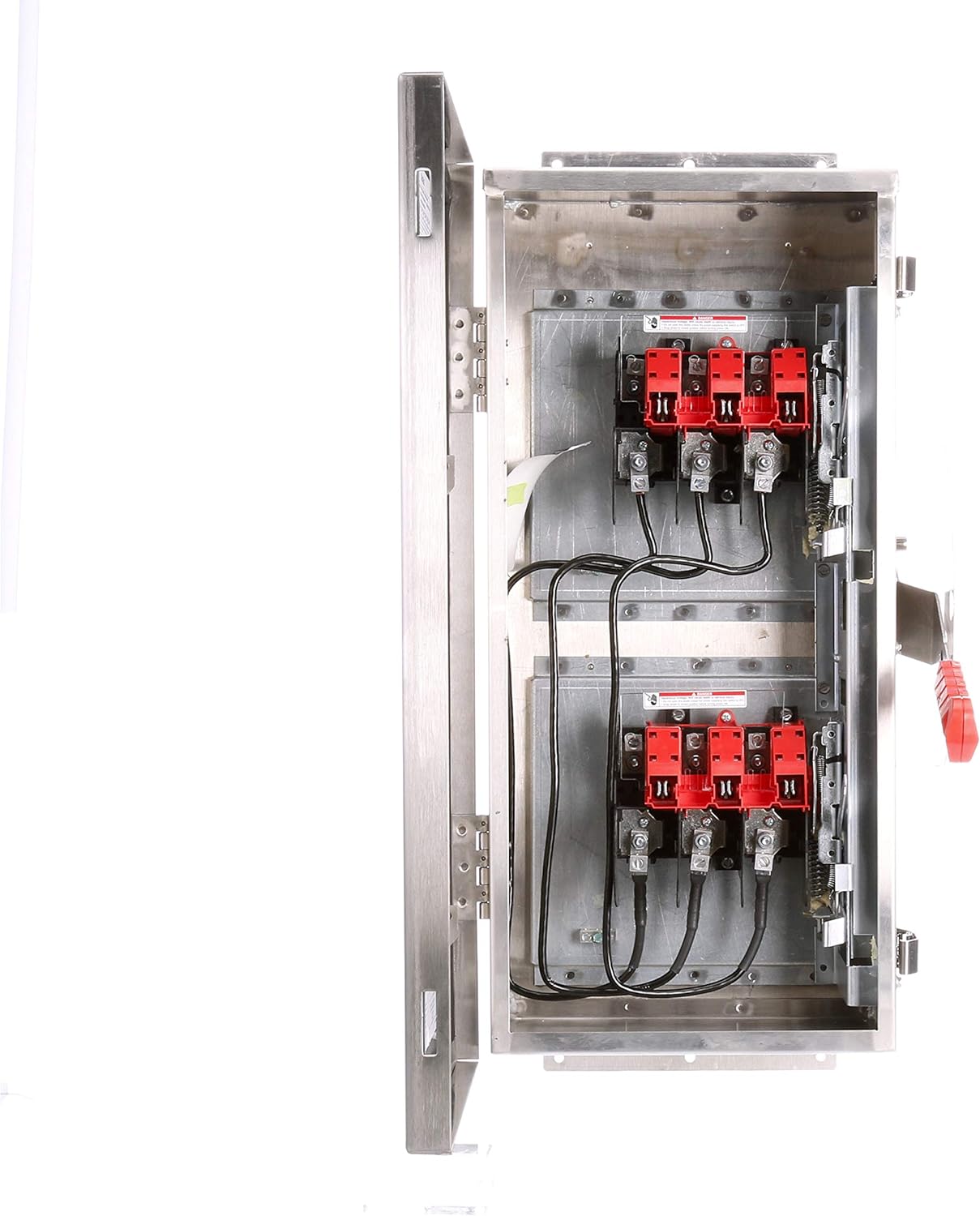

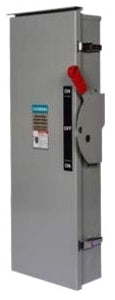

Siemens DTNF362S is a non-fusible disconnect switch designed for providing a visible means of isolation and protection in three-phase industrial power circuits. It is rated for 600V AC and 60A, featuring a robust three-pole, single-configuration construction within a NEMA 4X enclosure for corrosion and weather resistance. The switch is UL98 certified and offers a high interrupting capacity of 200kA at 600V, ensuring reliable performance in demanding applications such as motor control centers and industrial machinery. Its design is compatible with MAP frames and is built for durability with dimensions of 9.843 x 11.811 x 24.803 inches and a weight of 45.085 lb.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, DTNF type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 9.843 x 11.811 x 24.803 inch (250 x 300 x 630 mm)
  • Weight: 45.085 lb (20.45 kg)
  • Standards: Certified to UL98
  • Applications: Motor control centers, industrial machinery, power distribution
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 4X
  • Phase: 3
  • Fuse Class: R (for compatible fuse class if used with fuse kit)
  • Wire: 3-wire design
  • Compatible Frames: MAP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643454286
  • GTIN: 00783643454286
