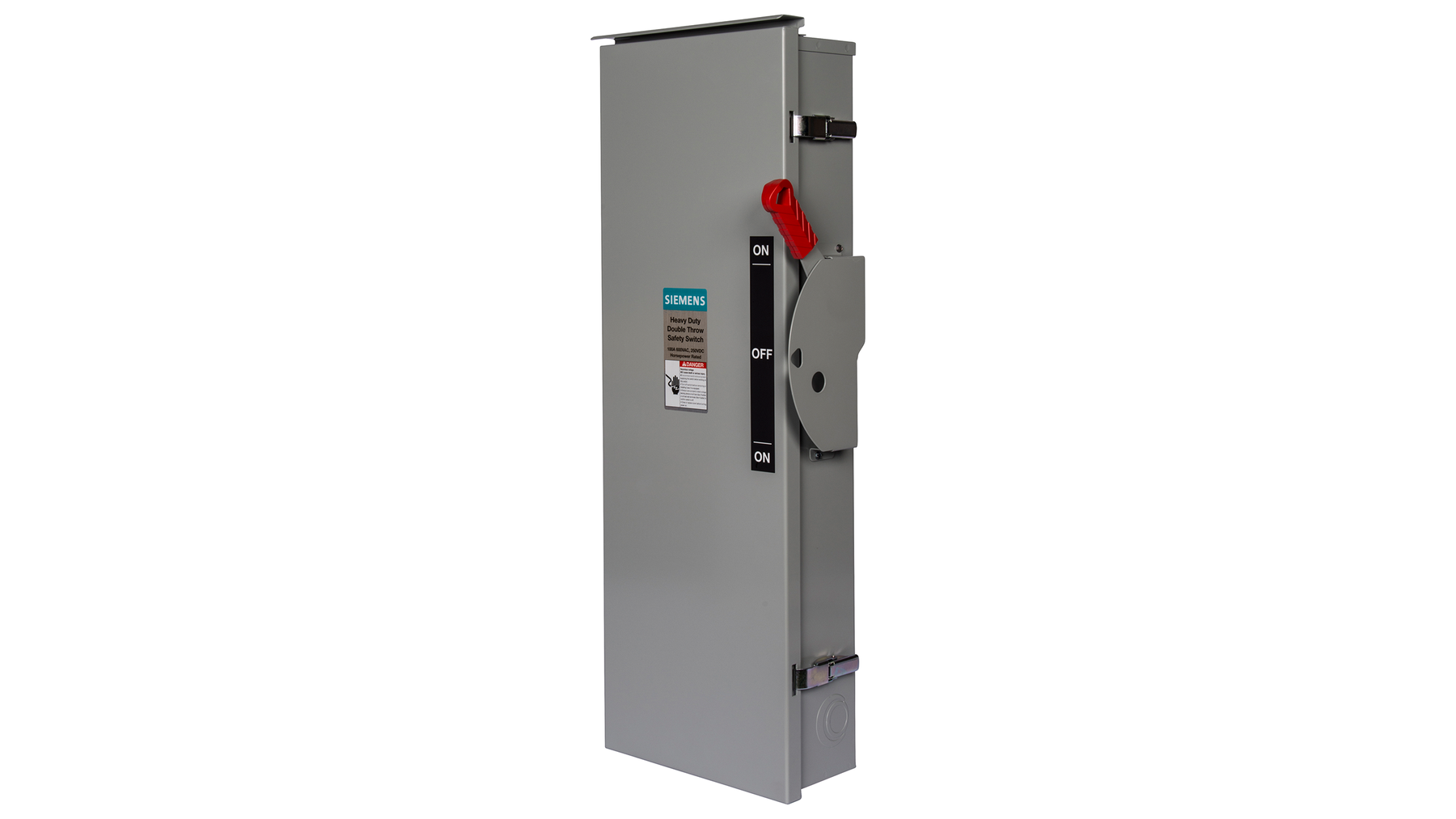

Siemens DTNF361S - Non-Fusible Disconnect Switch 600V AC/30A (NEMA 4X, 200kA AIC)

Siemens DTNF361S is a heavy-duty non-fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This UL98-certified switch features a 600V AC voltage rating and 30A current capacity with a robust 200kA@600V AIC rating for high-fault protection. Its NEMA 4X-rated enclosure (11.6" x 25.0") houses a 3-pole single configuration switch with Class R compatibility, weighing 55 lb for stable mounting in harsh environments. Compliant with industrial safety standards, this Mexican-manufactured disconnect is engineered for three-phase electrical systems in manufacturing plants, data centers, and utility applications where durable power interruption is critical.

Key Features & Specifications

• Type: Non-fusible disconnect switch with industrial-grade enclosure
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 11.6 in x 25.0 in (294.6 mm x 635 mm)
• Standards: UL98, NEMA 4X
• Applications: Industrial power distribution, motor control centers
• Switch Style: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@600V
• Fuse Class: R
• Wire: 3
• Compatible Frames: MAP
• Weight: 55 lb (24.9 kg)
• Country of Origin: Mexico

Product Identification

• UPC: 783643454248
• GTIN: 00783643454248
