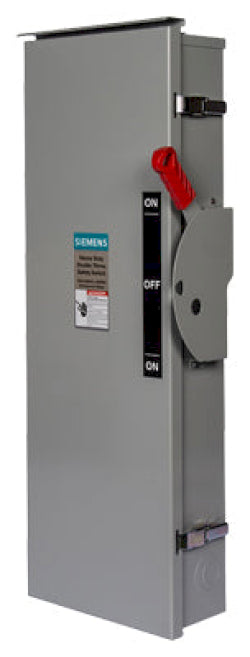

Siemens DTNF224 - Non-Fusible Disconnect Switch 200A 240V AC (200kA AIC @240V)

Siemens DTNF224 is a non-fusible disconnect switch designed for safe electrical isolation in industrial applications, providing reliable circuit interruption and load breaking capabilities. This single-phase switch operates at 240V AC with a 200A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. Constructed with a NEMA 1 enclosure measuring 21.1 x 36.6 inches and weighing 109 lb, the switch maintains operational integrity across a wide temperature range from -25°C to 70°C (-13°F to 158°F). Certified to UL98 standards and compatible with MAP frames, this disconnect switch meets rigorous industrial safety requirements for electrical distribution systems. Typical applications include industrial control panels, motor control centers, and main service disconnects where reliable isolation is critical.

Key Features & Specifications

• Type: Non-fusible disconnect switch, VBII Series, DTNF type
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 21.1 in x 36.6 in
• Standards: UL98 certified
• Applications: Industrial control panels, motor control centers, main service disconnects
• Switch Type: Non-Fusible
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Shipping Dimensions: 21.1 in x 36.6 in
• Phase: 1
• Voltage: 240V AC
• Amperage: 200A
• AIC rating: 200kA@240V
• Poles: 2
• Protection: Circuit interruption and load breaking
• Nema Rating: NEMA 1
• Certification: UL98
• Compatible Frames: MAP
• Enclosure: NEMA 1
• Country of Origin: Mexico
• Weight: 109 lb

Product Identification

• UPC: 783643454095
• GTIN: 00783643454095
