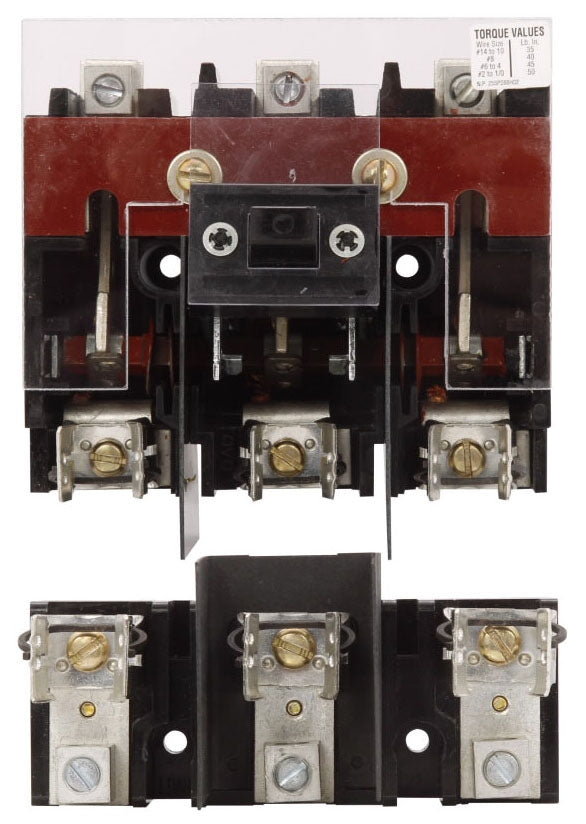

Westinghouse DS263 - Fusible Safety Switch 60A 600V 3-Pole

Westinghouse
Price
Save $16.47
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Westinghouse DS263 is a fusible safety switch designed for providing visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC systems with a 60A current capacity and features a 200kA interrupting rating at 600V for robust short-circuit protection. The switch is constructed with a NEMA 1 general-purpose indoor enclosure, measures 9.9" x 5.3" x 5.9" (L x H x W), and weighs 3.6 lb, utilizing a three-pole, single-configuration mechanism. It is UL Listed for safety compliance and is engineered to accept Class R or J fuses, making it suitable for applications such as motor control centers, industrial machinery, and main feeder disconnects where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 1 Enclosure
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 9.9 in x 5.3 in x 5.9 in (Length x Height x Width)
  • Standards: UL Listed
  • Applications: Industrial machinery, motor control centers, main feeder disconnects
  • Switch Type: Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA @ 600V
  • Protection: Overcurrent (via Class R or J fuses)
  • Nema Rating: NEMA 1
  • Fuse Class: R, J
  • Weight: 3.6 lb


Product Identification
  • UPC: 786679047545
  • GTIN: 00786679047545
