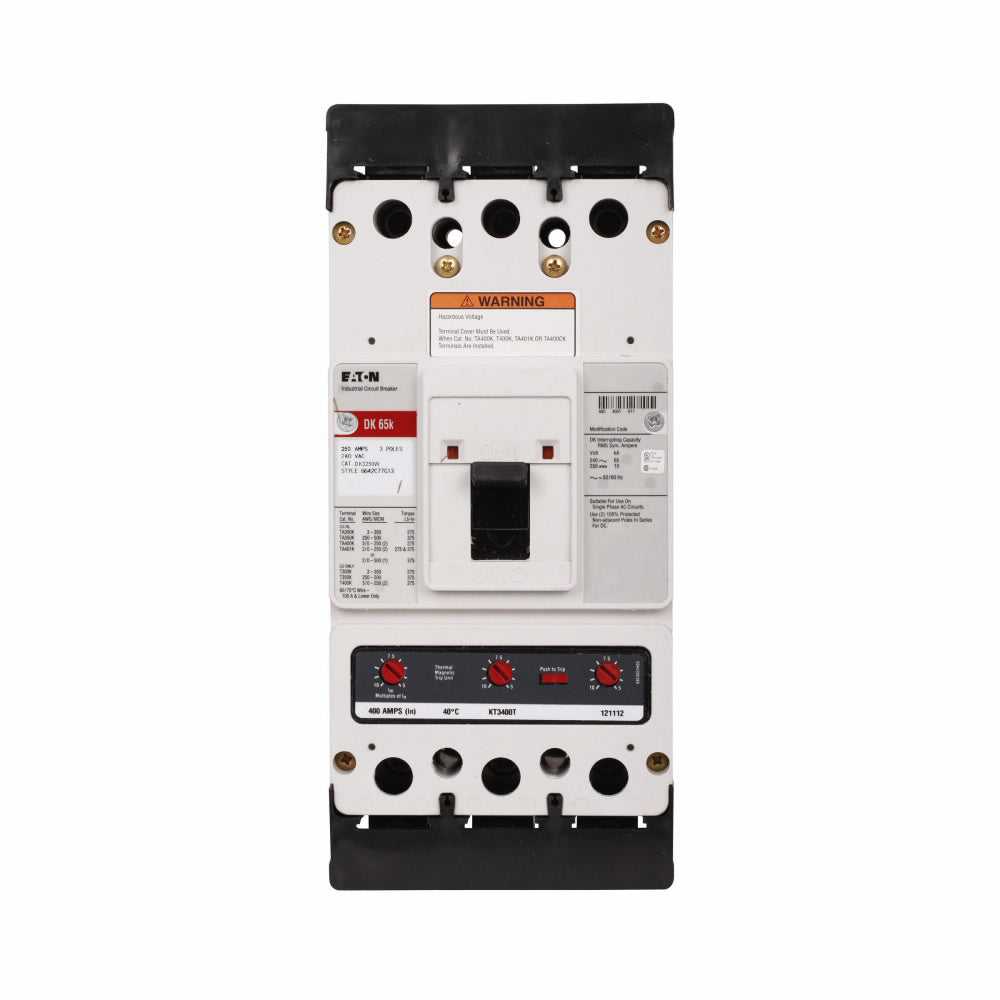

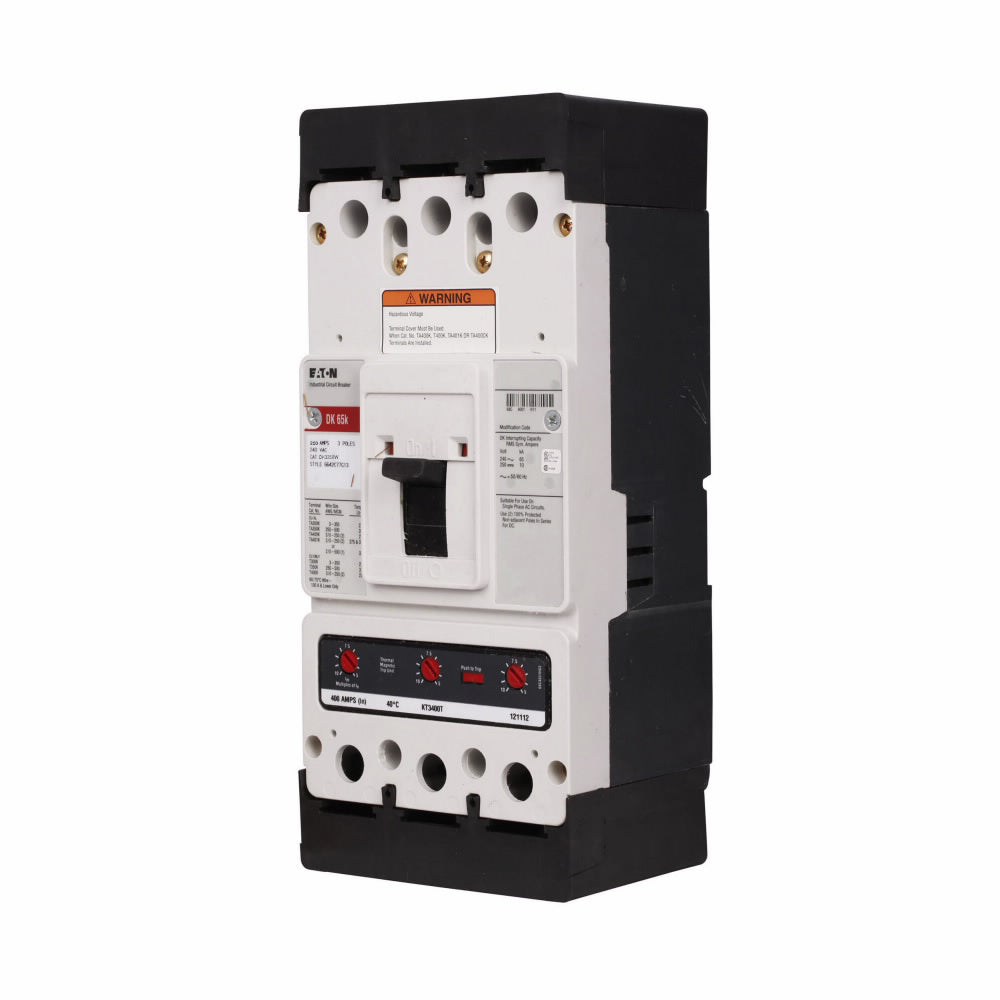

Cutler-Hammer DK3250W - 3-Pole Molded Case Breaker (250A, 65kA AIC)
Cutler-Hammer DK3250W - 3-Pole Molded Case Breaker (250A, 65kA AIC)
Cutler-Hammer DK3250W - 3-Pole Molded Case Breaker (250A, 65kA AIC)
Cutler-Hammer DK3250W - 3-Pole Molded Case Breaker (250A, 65kA AIC)

Cutler-Hammer DK3250W - 3-Pole Molded Case Breaker (250A, 65kA AIC)

Cutler Hammer
Price
Save $5,440.33
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer DK3250W is a molded case circuit breaker designed to provide reliable overcurrent protection for three-phase industrial power distribution systems. It features a 250A current rating and a 240V AC voltage rating, housed within a compact K-frame design measuring 4.1" x 5.5" x 5.5" and weighing 11.5 lb. This thermal-magnetic, bolt-on breaker is UL Listed and offers a 65kA interrupting capacity at 240V, utilizing a long-time and instantaneous (LI) trip function for coordinated protection. It is engineered for demanding applications such as panelboards, switchboards, and industrial control panels where robust circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 250A
  • Dimensions: 4.1 in (Depth) x 5.5 in (Height) x 5.5 in (Width)
  • Standards: UL Listed
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • AIC Rating: 65kA @ 240V
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: K Frame
  • Connection: Bolt-On
  • Certification: UL Listed
  • Weight: 11.5 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679044667
  • GTIN: 00786679044667
