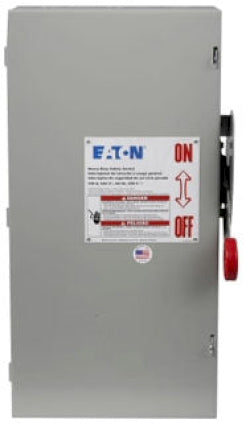

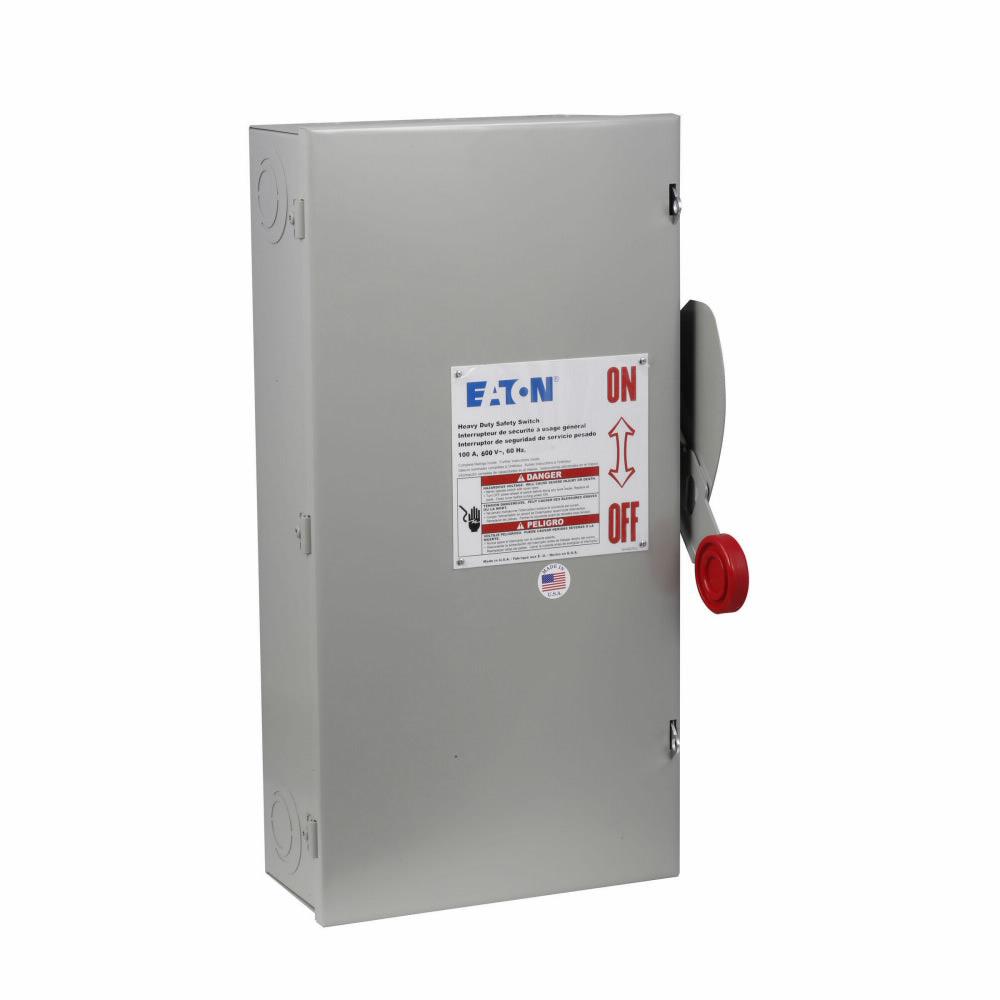

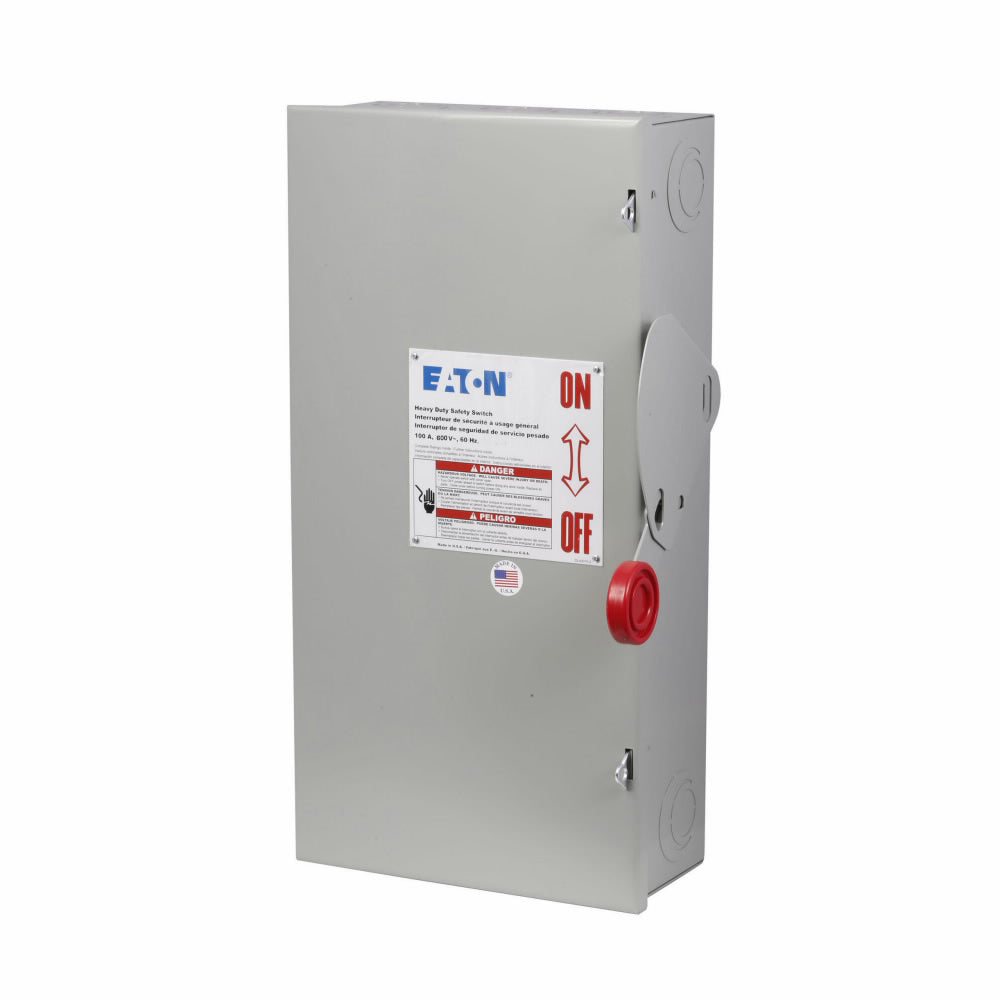

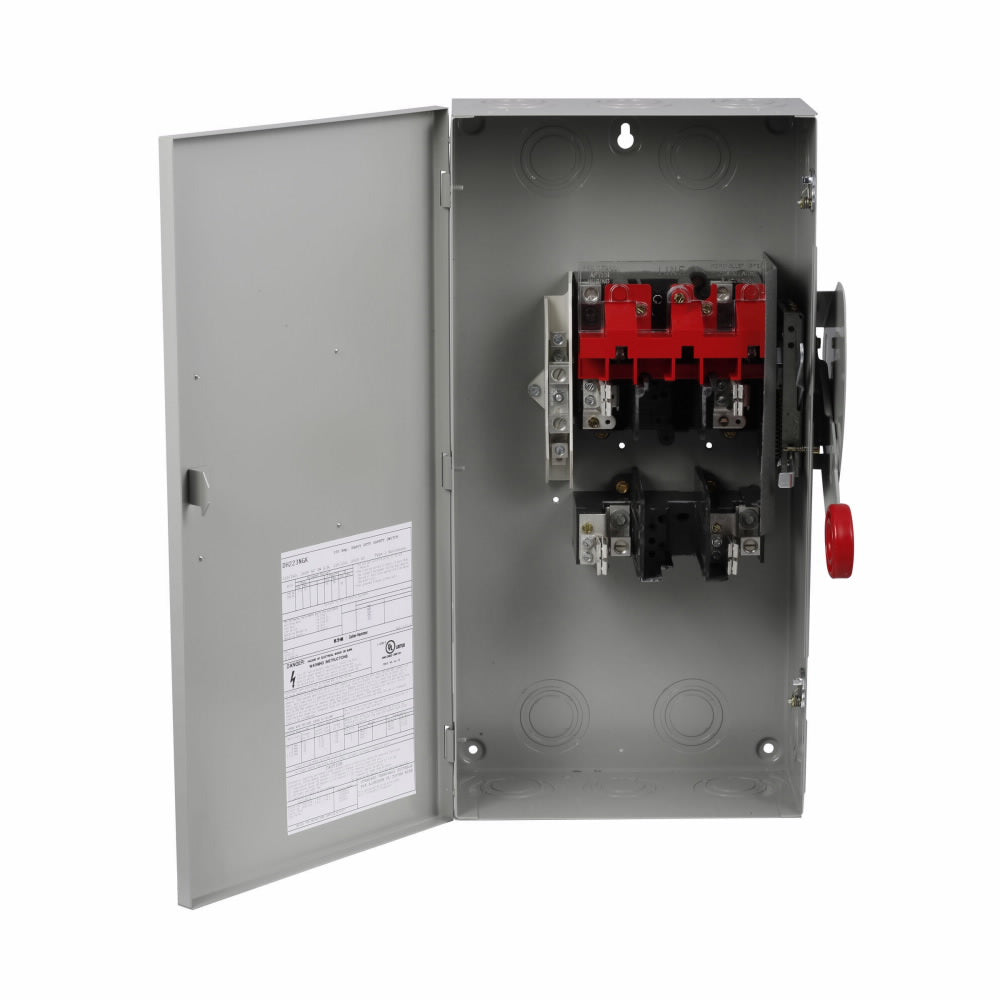

The Eaton DH363NGK is a heavy-duty fusible safety switch designed to provide reliable circuit isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 100A, featuring a robust three-pole, single-configuration design housed in a NEMA 1 enclosure with dimensions of 22.5 x 9 x 12.75 inches (LxHxW) and a weight of 23 lb. The switch is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation. It is engineered for demanding applications such as motor control centers, industrial machinery, and main service disconnects, where a 100kA interrupting rating at 600V is required for Class R fuses.
Key Features & Specifications
Type: DH Series, Fusible Safety Disconnect Switch
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
Applications: Industrial power distribution, motor control, main service disconnects
