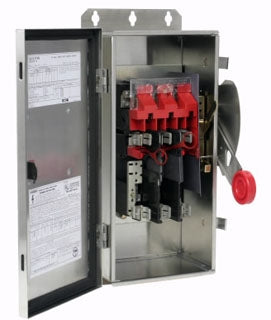

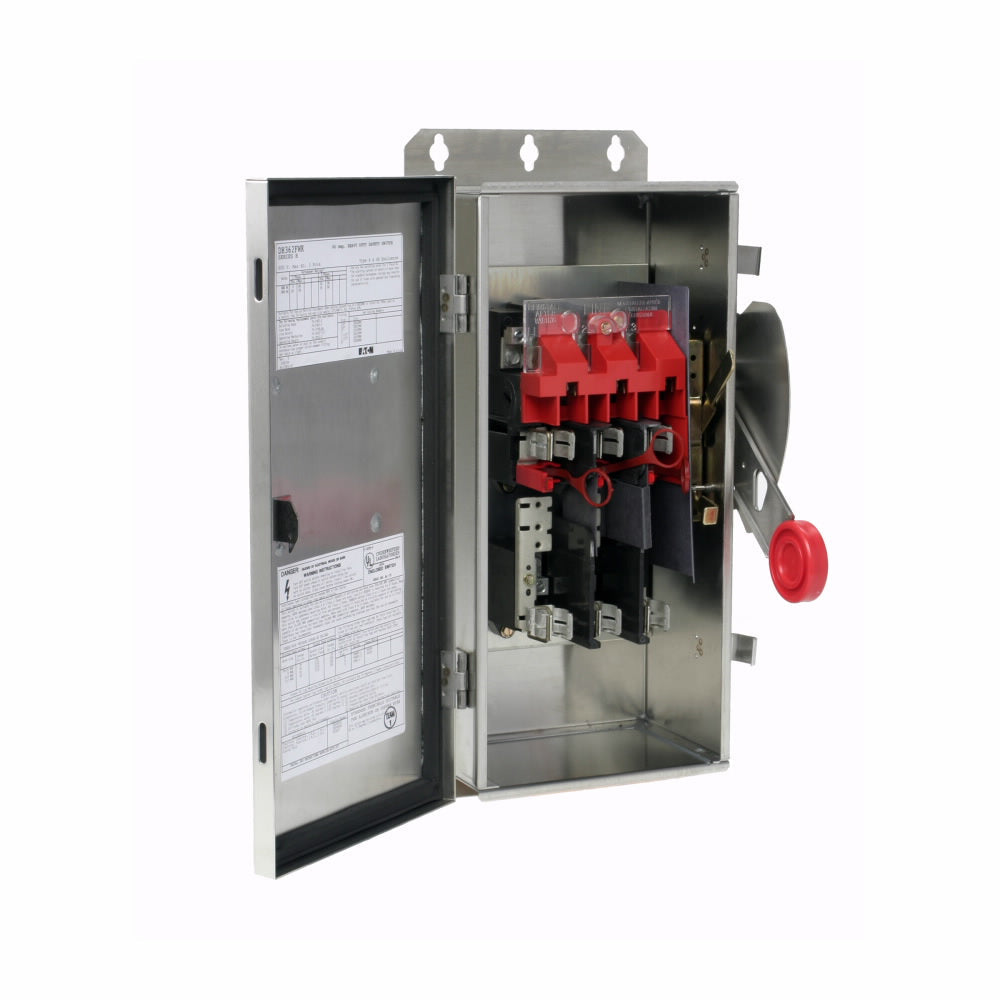

Eaton DH362FWK - Fusible Disconnect Switch 60A 600V (NEMA 4X 200kA AIC)

Eaton DH362FWK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. The switch operates at 600V AC with a 60A current rating and features a compact 3-pole single configuration housed within durable NEMA 4X rated enclosures measuring 9.5" W × 20" D × 8.5" H. It complies with UL standards and NEC 230.62(C) barrier requirements while providing 200kA interrupting capacity at 600V for robust fault protection. Typical applications include motor control centers, industrial machinery, and power distribution systems where safe maintenance isolation is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch with R-class fuse compatibility
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 9.5 in × 20 in × 8.5 in (W×D×H)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 4X
• Phase: 3
• Fuse Class: R
• Weight: 20 lb
• Family: DH Series
• Country of Origin: United States

Product Identification

• UPC: 782113206165
• GTIN: 00782113206165
