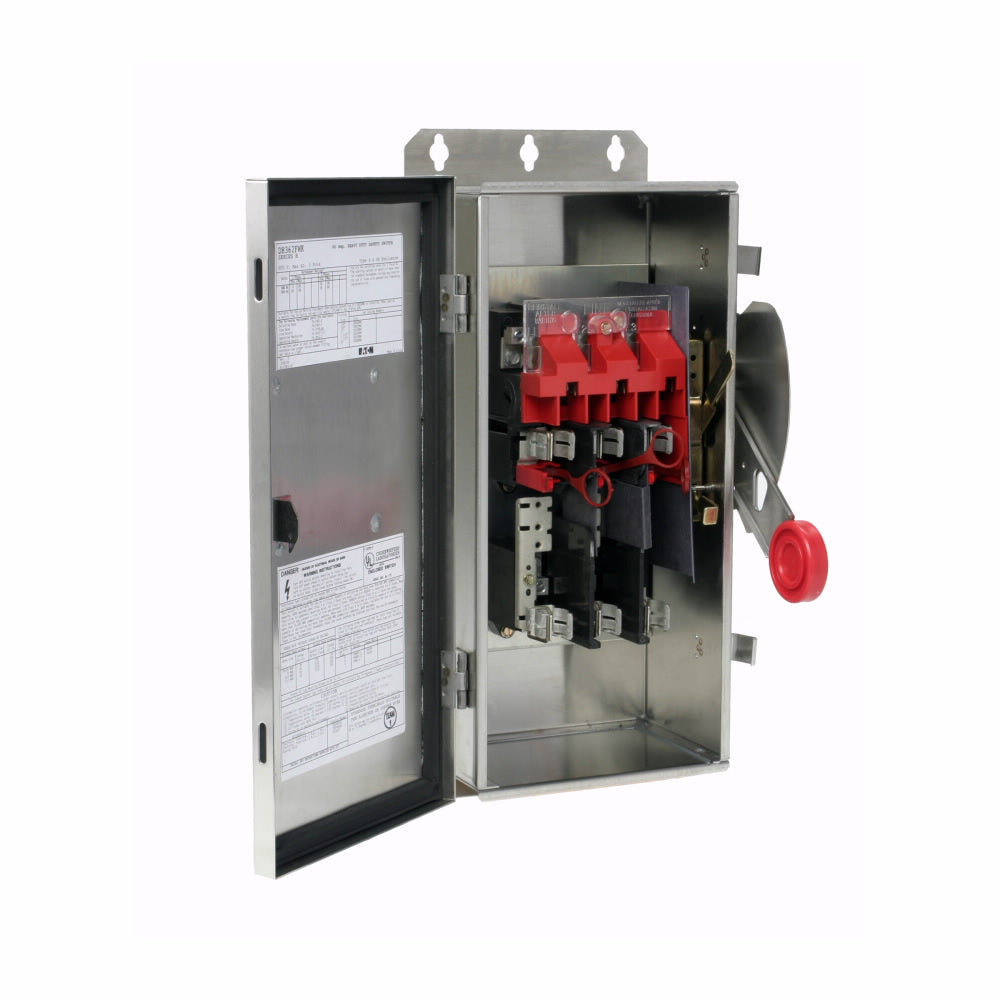

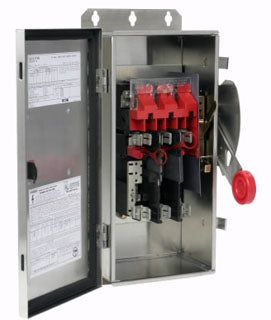

Eaton DH361NWK - Fusible Safety Switch 600V 30A (NEMA 4 3-Pole)

The Eaton DH361NWK is a heavy-duty industrial safety switch designed for reliable circuit isolation and protection in demanding environments. This 600VAC, 30A rated disconnect switch features a robust 3-pole fusible configuration with Class R fuse compatibility and an impressive 200kA interrupting capacity at 600V. Constructed with a NEMA 4 rated enclosure measuring 7.73 x 10.22 x 19.08 inches (WxDxH) and weighing 22 lb, it provides superior protection against environmental contaminants. The switch carries UL Listed certification, ensuring compliance with rigorous safety standards for industrial electrical systems. Typical applications include motor control centers, industrial machinery, and power distribution systems requiring secure isolation capabilities.

Key Features & Specifications

• Type: DH Series fusible safety switch with visible blade operation
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 7.73 in x 10.22 in x 19.08 in (WxDxH)
• Standards: UL Listed, NEMA 4 enclosure rating
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Safety Disconnect
• Configuration: Single unit
• Poles: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Phase: 3-phase
• Nema Rating: NEMA 4
• Weight: 22 lb
• Country of Origin: United States

Product Identification

• UPC: 782113211770
• GTIN: 00783643151321
