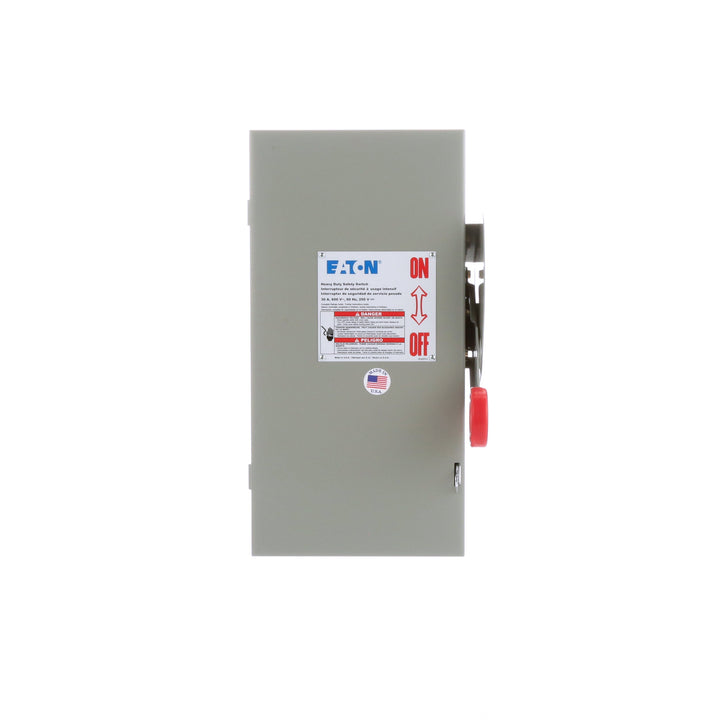

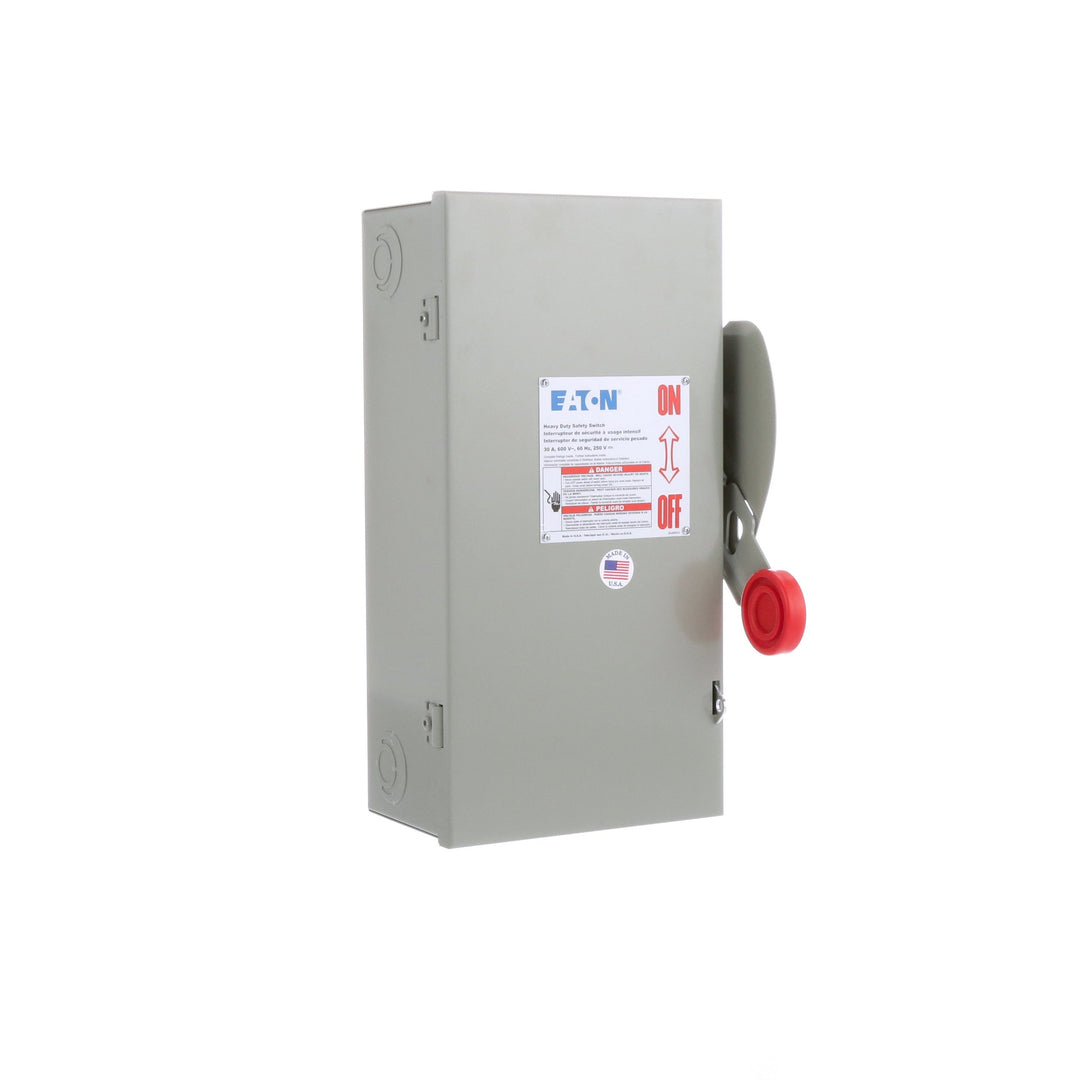

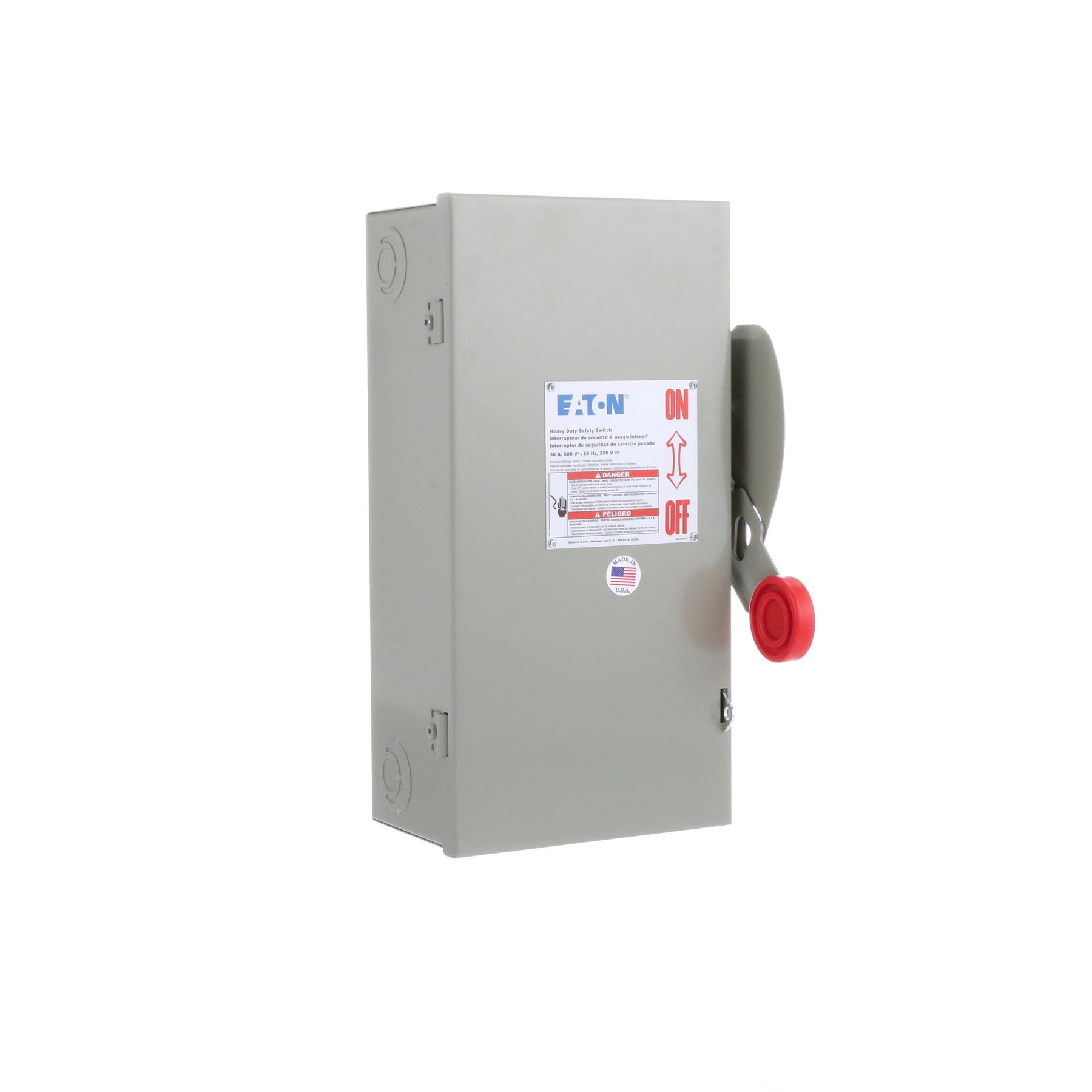

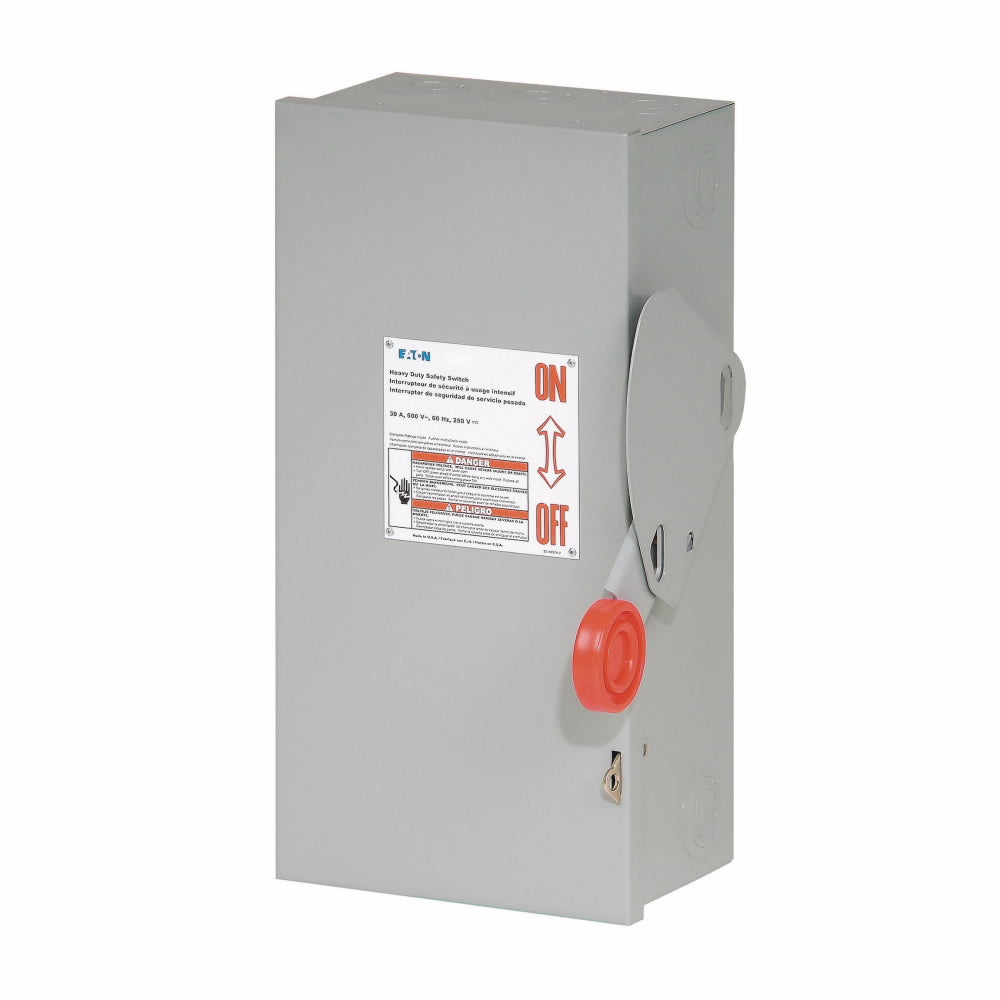

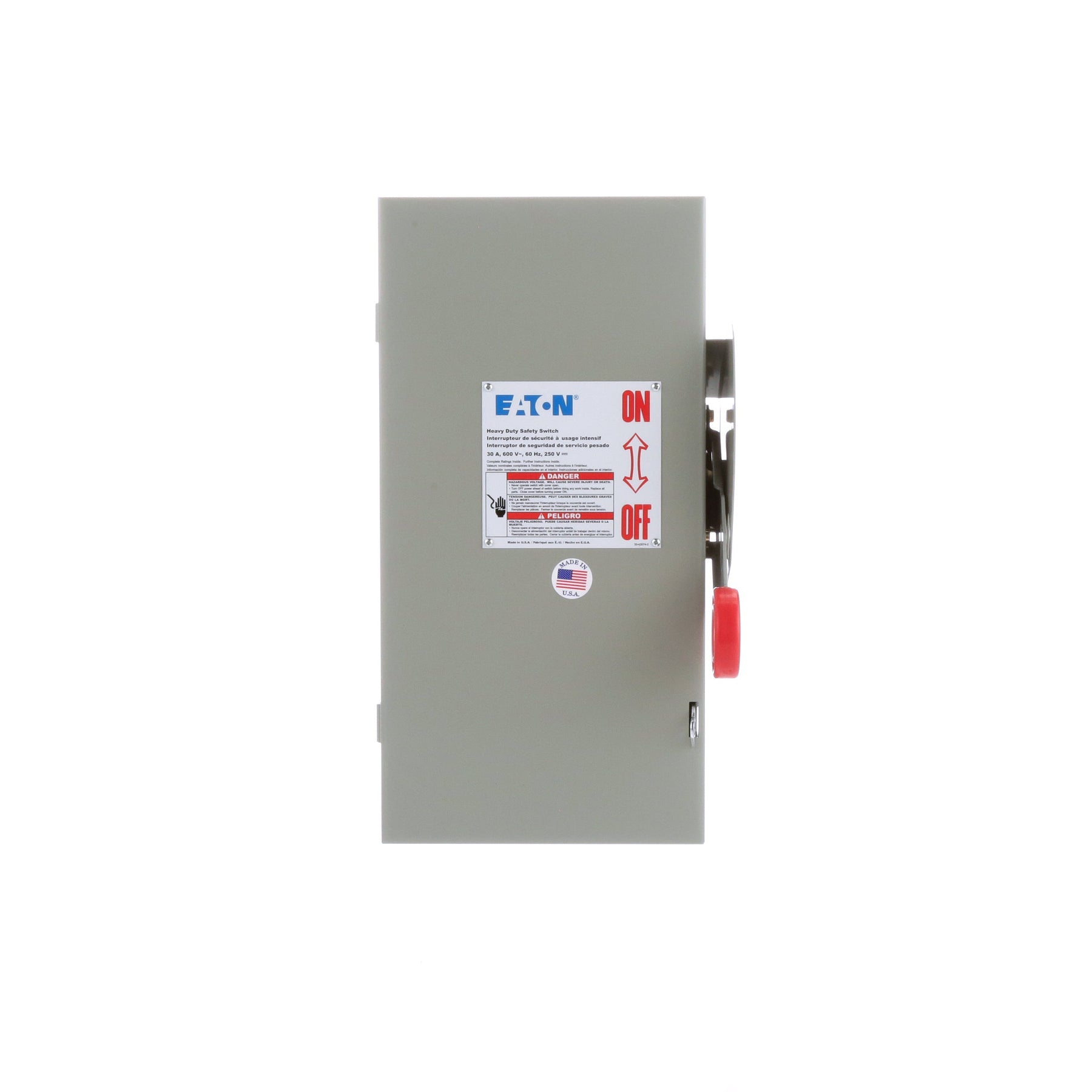

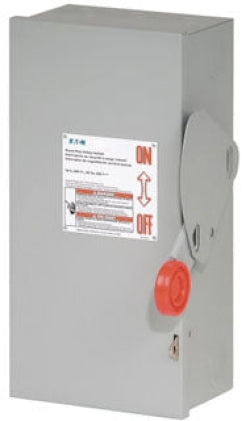

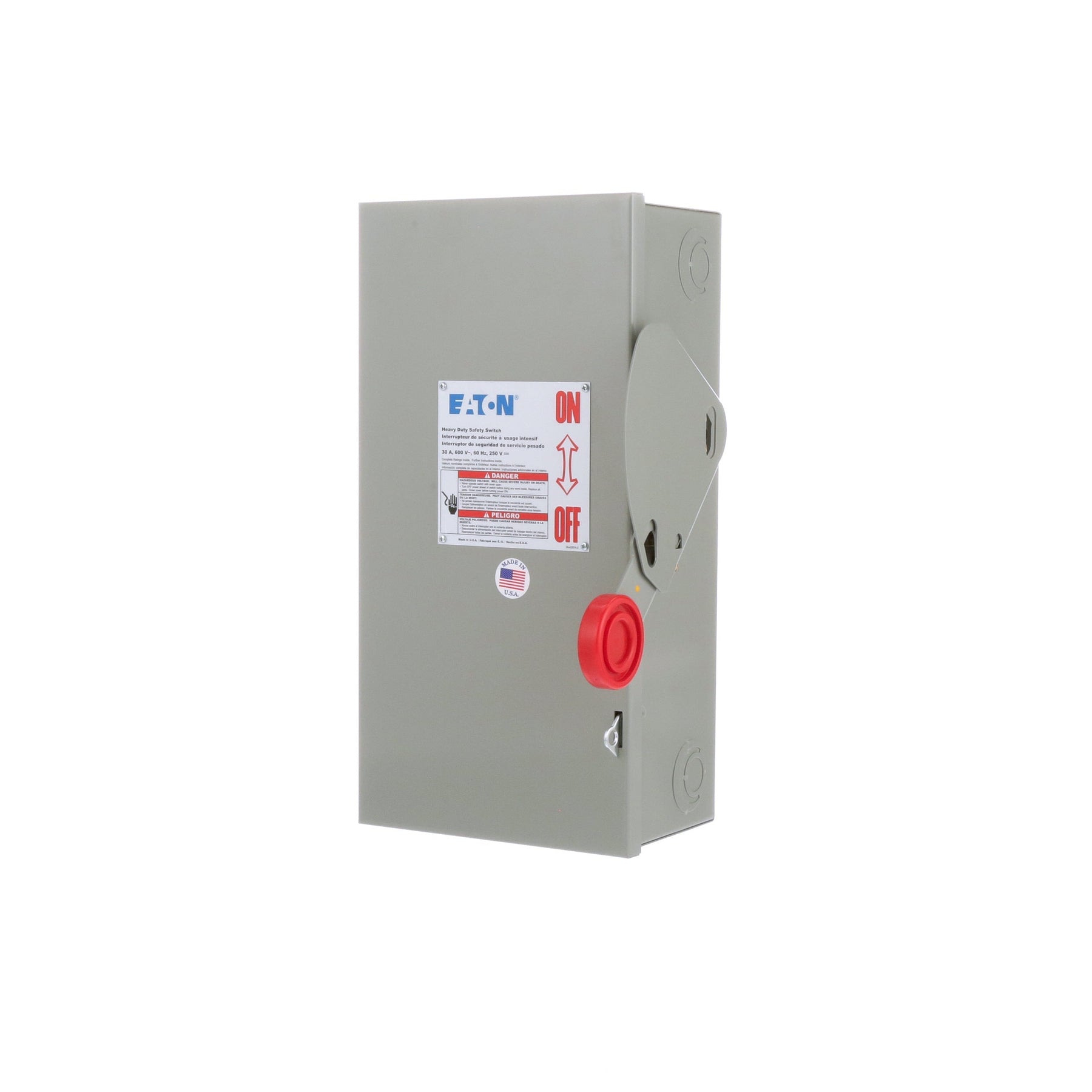

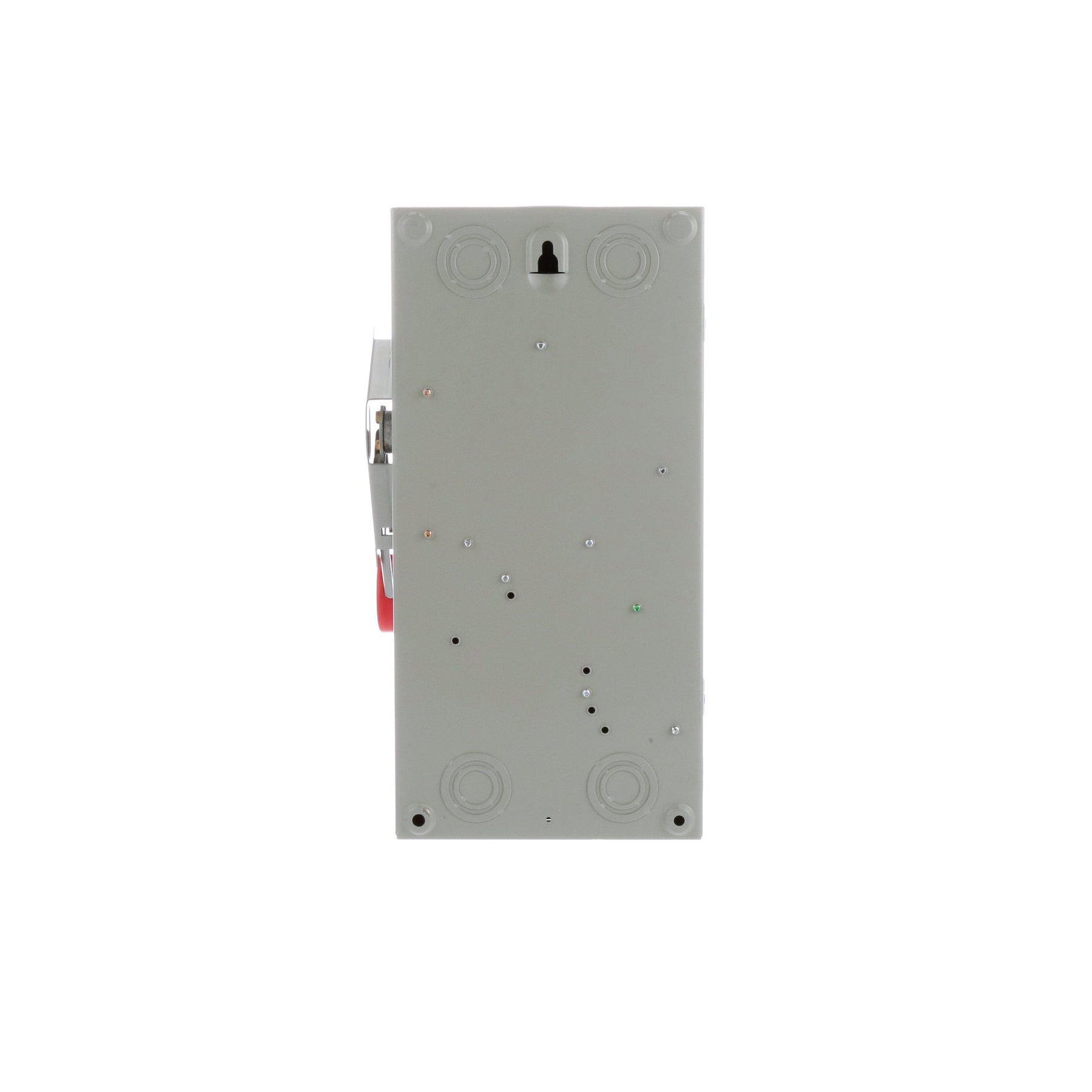

Eaton DH361NGK - Fusible Disconnect Switch 30A 600V (3-Pole NEMA 1)

The Eaton DH361NGK is a heavy-duty disconnect switch designed for circuit protection and isolation in industrial power distribution systems. This 3-pole fusible switch features a 600V AC voltage rating and 30A current rating with a 200kA interrupting capacity at 600V for robust short-circuit protection. The unit is constructed with a NEMA 1 enclosure measuring 9.5" x 16.5" x 8.5" (WxDxH) and weighs 20 lb, accommodating Class R fuses and supporting wire sizes from AWG 14 to AWG 2 for both aluminum and copper conductors. It complies with UL listing standards and meets NEC 230.62(C) requirements for barrier compliance, ensuring safe operation in demanding environments. This disconnect switch is typically deployed in industrial control panels, motor control centers, and power distribution applications requiring reliable circuit isolation and protection.

Key Features & Specifications

• Type: Fusible disconnect switch, DH Series, NEMA 1 enclosure
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.5" x 16.5" x 8.5" (WxDxH)
• Standards: UL Listed, NEC 230.62(C) Compliant Barrier
• Applications: Industrial control panels, motor control centers, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Wire Size: AWG 14 to AWG 2 Aluminum/Copper
• Nema Rating: NEMA 1
• Weight: 20 lb

Product Identification

• UPC: 782113205526
• GTIN: 00785901961109
