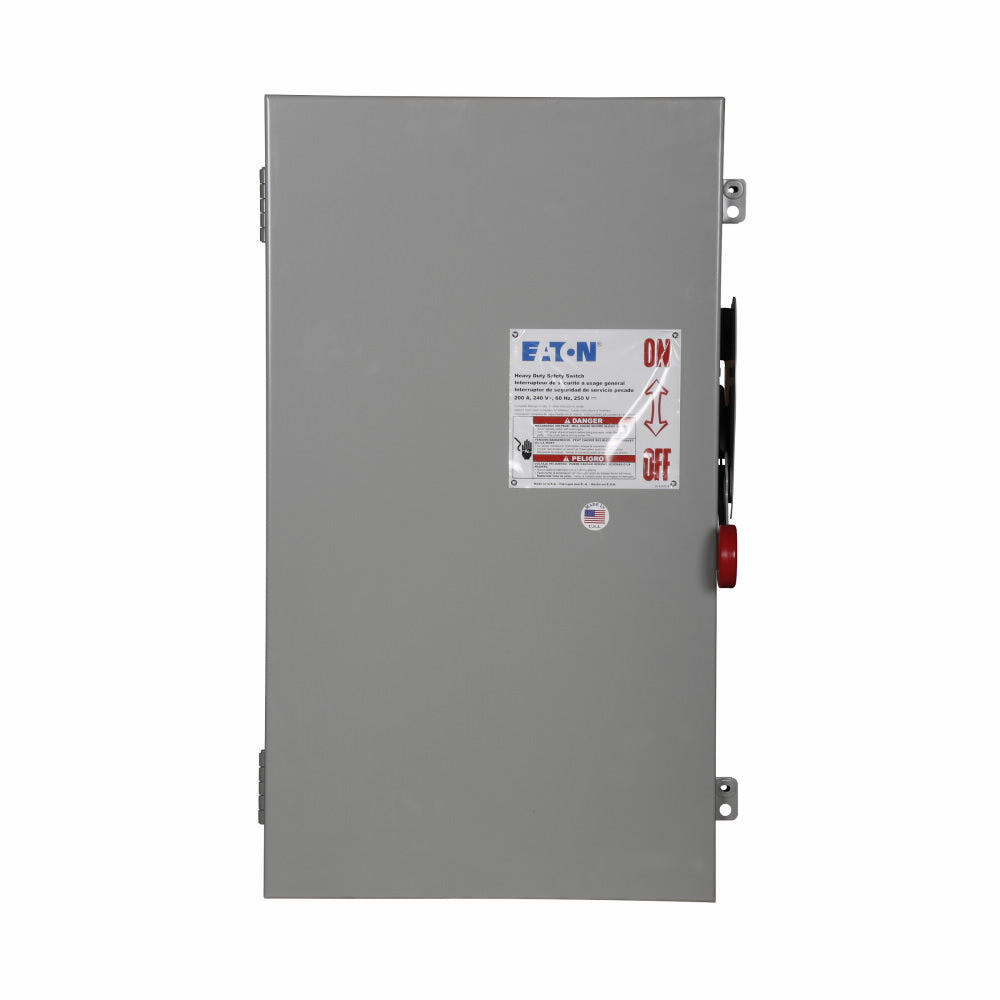

Eaton DH324NGK - Safety Switch 200A 3-Pole 240V

Eaton
Price
Save $3,272.88
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton DH324NGK is a heavy-duty safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 240V AC operation with a 200A current rating, housed within a robust NEMA 1 enclosure measuring 30" x 9.5" x 18" (L x H x W) and weighing 40 lb. The switch is UL Listed and features a NEC 230.62(C) compliant barrier for enhanced safety, and it is engineered for three-phase applications with a 100kA interrupting capacity at 240V. Typical applications include service entrance equipment, motor control centers, and main disconnects for industrial machinery.

Key Features & Specifications
  • Type: DH Series, 3-pole, single configuration safety disconnect switch
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 30 in x 9.5 in x 18 in (Length/Depth x Height x Width)
  • Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Applications: Service entrance, main disconnect, industrial power distribution
  • Switch Type: Safety Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Nema Rating: NEMA 1
  • Wire Size: AWG 6 to 250 KCMil, Copper/Aluminum
  • Compatible Frames: SKLA
  • Weight: 40 lb
  • Country of Origin: United States


Product Identification
  • UPC: 782113206684
  • GTIN: 00782113206684
