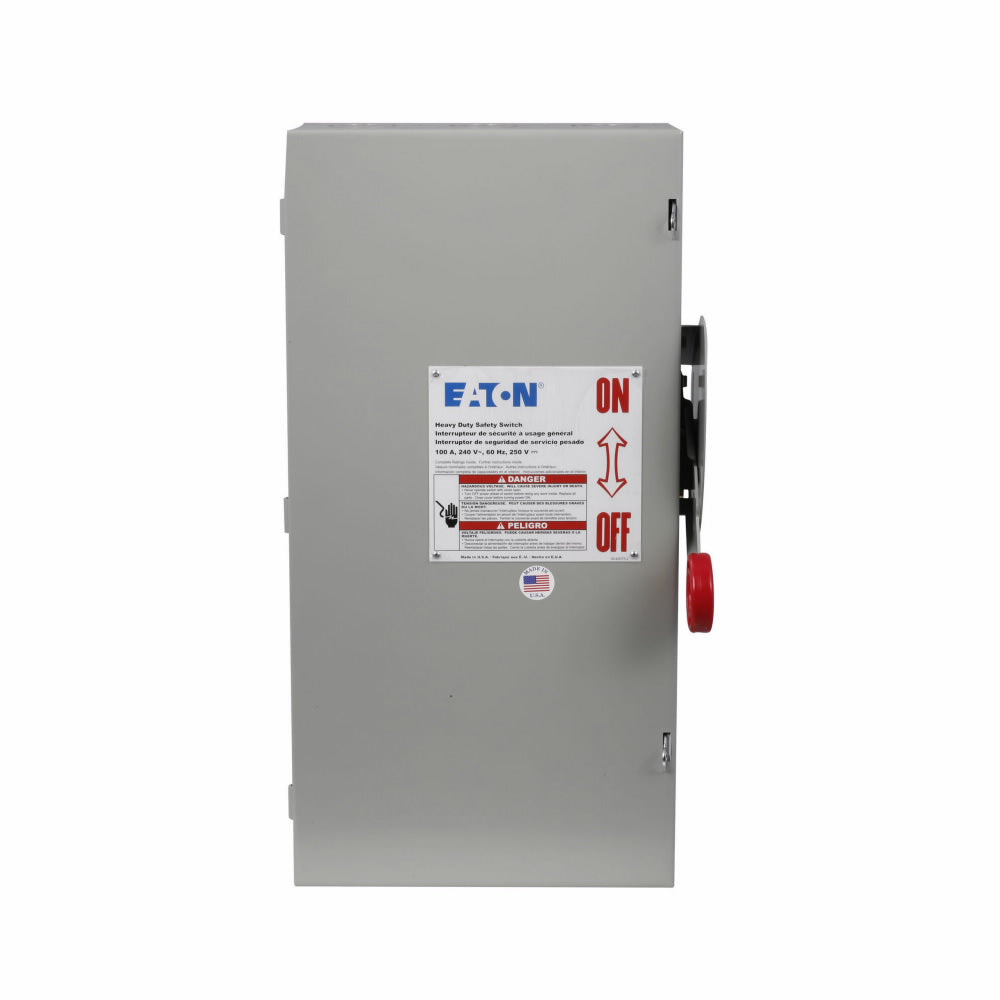

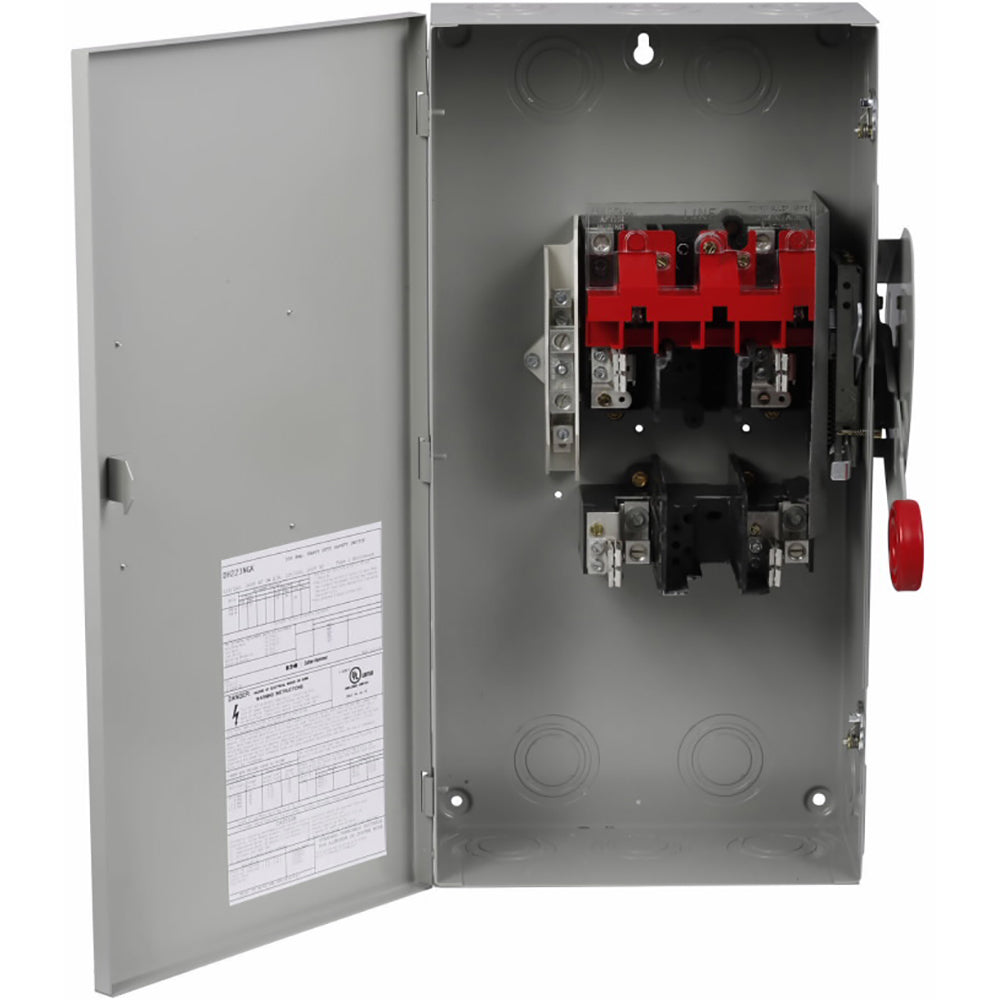

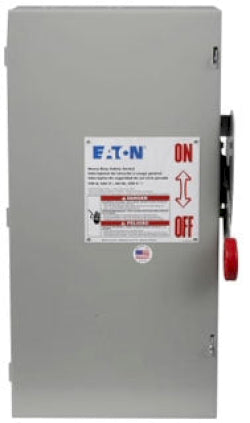

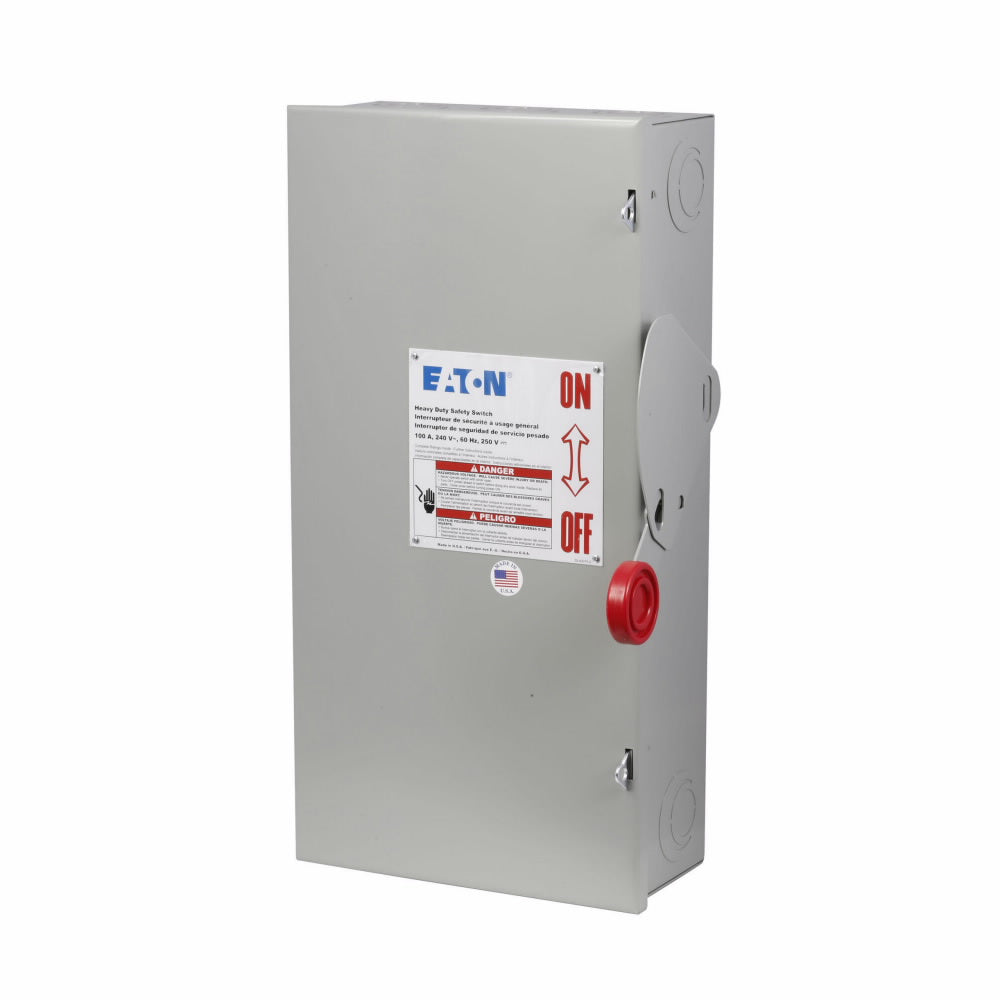

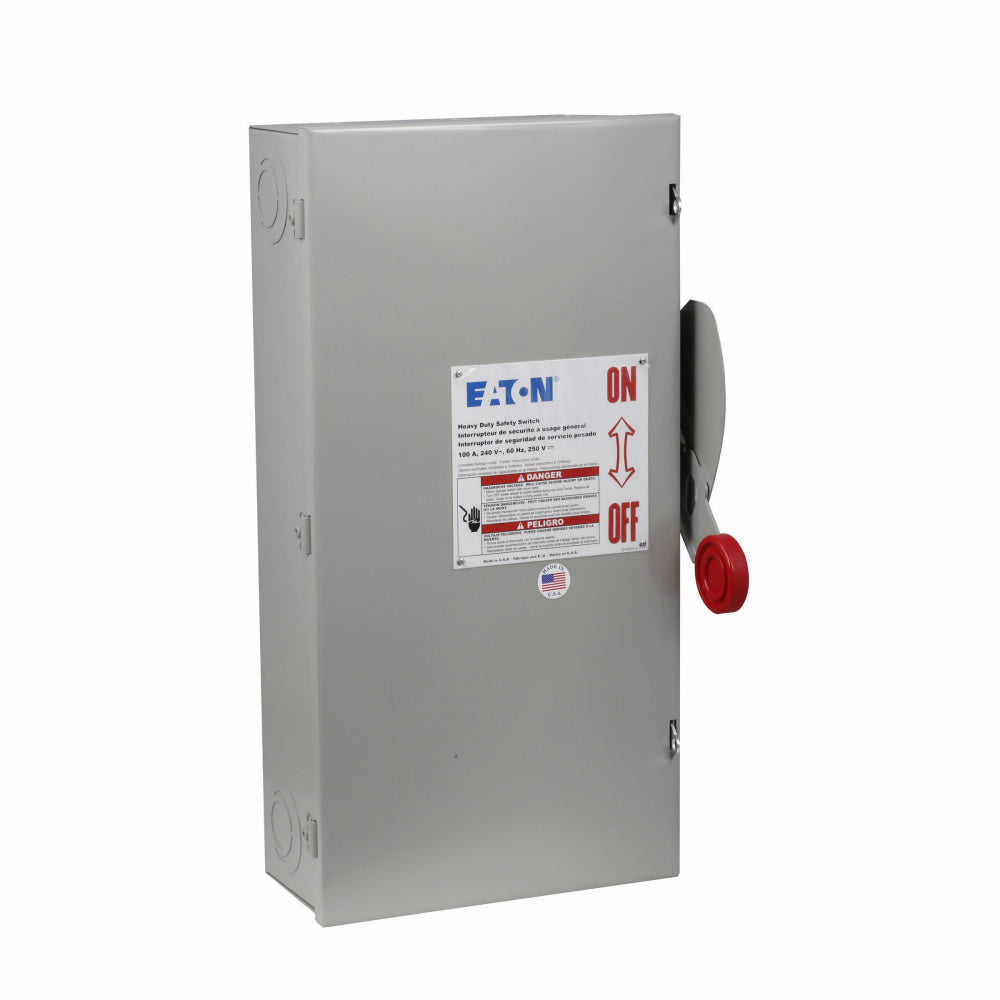

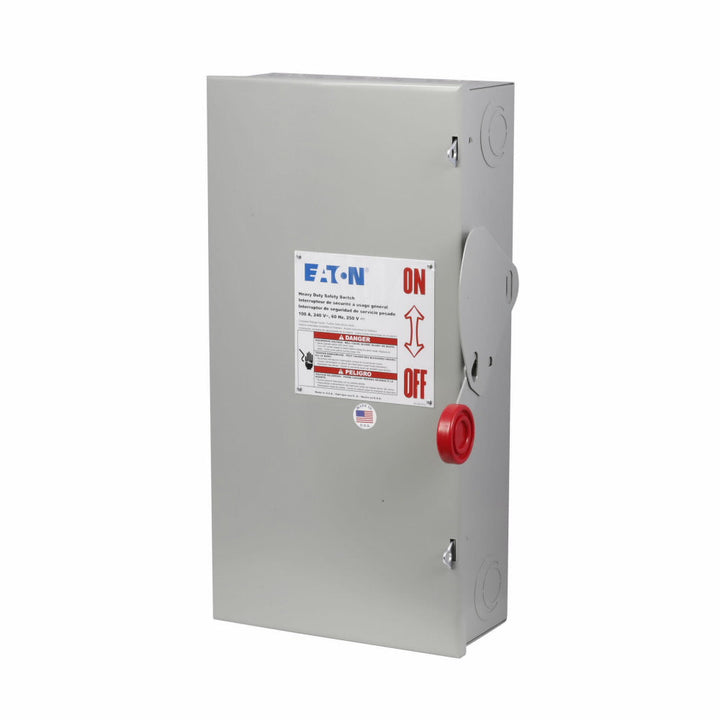

Cutler Hammer DH323NGK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC systems, handles up to 100A, and features a 100kA interrupting capacity at its rated voltage. The unit is constructed with a robust NEMA 1 enclosure measuring 22.5" x 9" x 12.75" (L x H x W) and a weight of 20 lb, utilizing a 3-pole, single-configuration design compatible with Class R fuses. It is UL Listed and complies with NEC 230.62(C) for barrier requirements, ensuring safe operation in three-phase applications such as motor control centers and main service disconnects.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, DH Series
Voltage Rating: 240V AC
Current Rating: 100A
Dimensions: 22.5 in x 9 in x 12.75 in (Length/Depth x Height x Width)
Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
Applications: Industrial power distribution, main service disconnects, motor control
