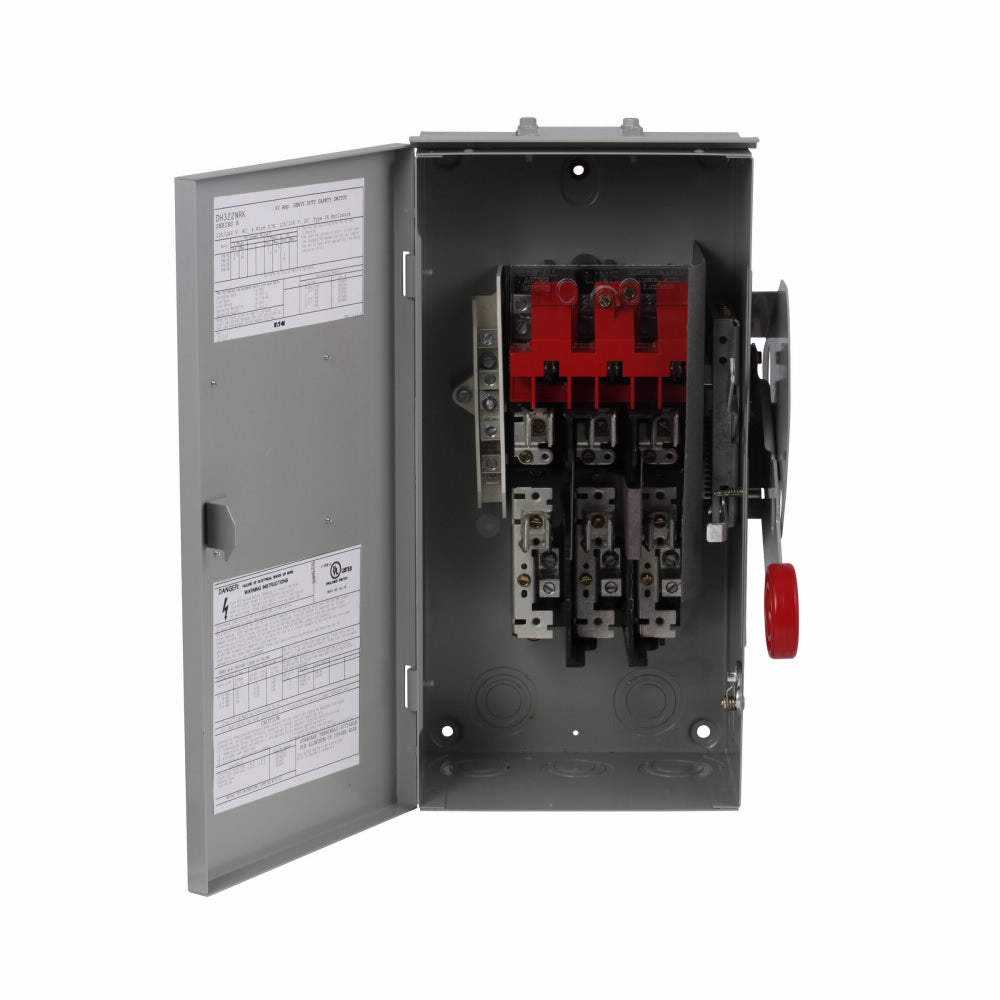

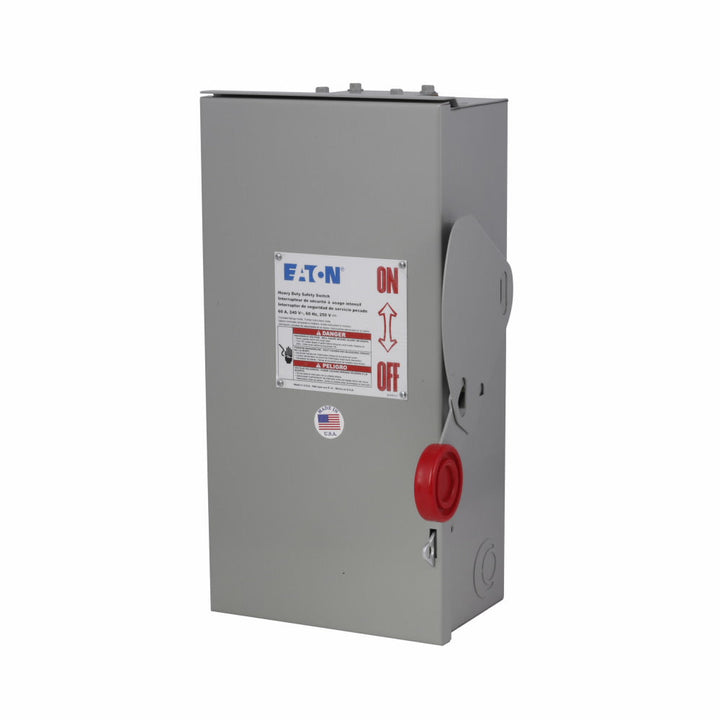

Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH322FRK Disconnect Switch (Fusible) - Essential Electric Supply
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V
Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V

Cutler Hammer DH322FRK - Fusible Disconnect 60A 3P 240V

Cutler Hammer
Price
Save $890.63
/
Title
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer DH322FRK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 240V AC operation with a 60A current rating and features a 100kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed within a NEMA 3R rated enclosure measuring 16.5" x 16.27" x 9.5" (LxHxW) and weighs 14 lb, utilizing Class R fuses and accepting copper or aluminum wire from AWG 14 to AWG 2. This unit is UL Listed and is engineered for compliance with industrial safety standards, making it suitable for applications such as motor control centers, HVAC systems, and industrial machinery disconnects where reliable isolation is critical.

Key Features & Specifications
  • Type: DH Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Configuration: Single, 3-Pole
  • Dimensions: 16.5 in x 16.27 in x 9.5 in (Length/Depth x Height x Width)
  • Weight: 14 lb
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial motor disconnects, HVAC, machinery power isolation
  • Switch Style: Fusible
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 14 to AWG 2, Copper/Aluminum
  • Compatible Frames: TJK
  • Country of Origin: United States


Product Identification
  • UPC: 782113205816
  • GTIN: 00782113205816
