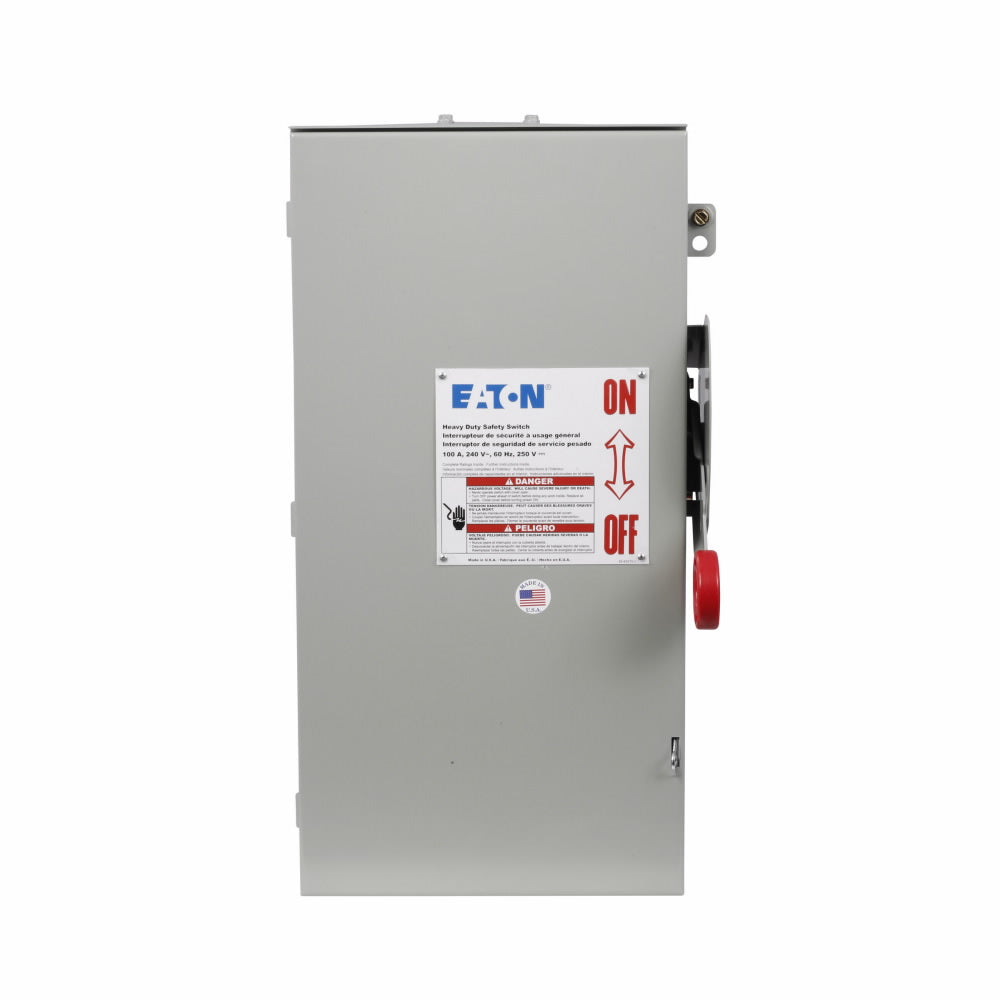

Eaton DH263URK - Non-Fusible Disconnect 100A 600V (NEMA 3R)

Cutler Hammer
Price
Save $1,532.61
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton DH263URK is a heavy duty non-fusible disconnect switch engineered for reliable power isolation in industrial environments. It is rated for 100 amperes at 600 VAC or 250 VDC, with a two-pole, two-wire single-throw mechanism. The switch is housed in a painted galvanized steel enclosure measuring 9.89 inches deep by 21.68 inches high by 11.84 inches wide, weighing 28 lb, and is designed for surface mounting with a NEMA 3R rating for outdoor protection against rain and snow. It is UL Listed and compliant with NEC 230.62 (C) barrier requirements, and it supports motor horsepower ratings of 20 HP at 240 VAC, 30 HP at 480 VAC, and 40 HP at 600 VAC with time delay for single-phase loads. This switch is suitable for use in commercial and industrial power distribution systems requiring a non-fusible disconnect.

Key Features & Specifications
  • Type: Disconnect
  • Amperage: 100 A
  • Voltage: 600 VAC / 250 VDC
  • Poles: 2
  • Wires: 2
  • Type: Single Throw, Non-Fusible
  • Mounting: Surface Mount
  • Interrupt Rating: Time Delay
  • Enclosure: Painted Galvanized Steel
  • NEMA Rating: 3R
  • Horsepower Ratings: 20 HP @ 240 VAC, 30 HP @ 480 VAC, 40 HP @ 600 VAC
  • Series/Frame: Heavy Duty
  • Compatible Frames: TB
  • Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
  • Country of Origin: United States
  • Dimensions: 9.89 in x 21.68 in x 11.84 in (Length/Depth x Height x Width)
  • Weight: 28 lb


Product Identification
  • UPC: 78668517665
  • GTIN: 00786685176659
