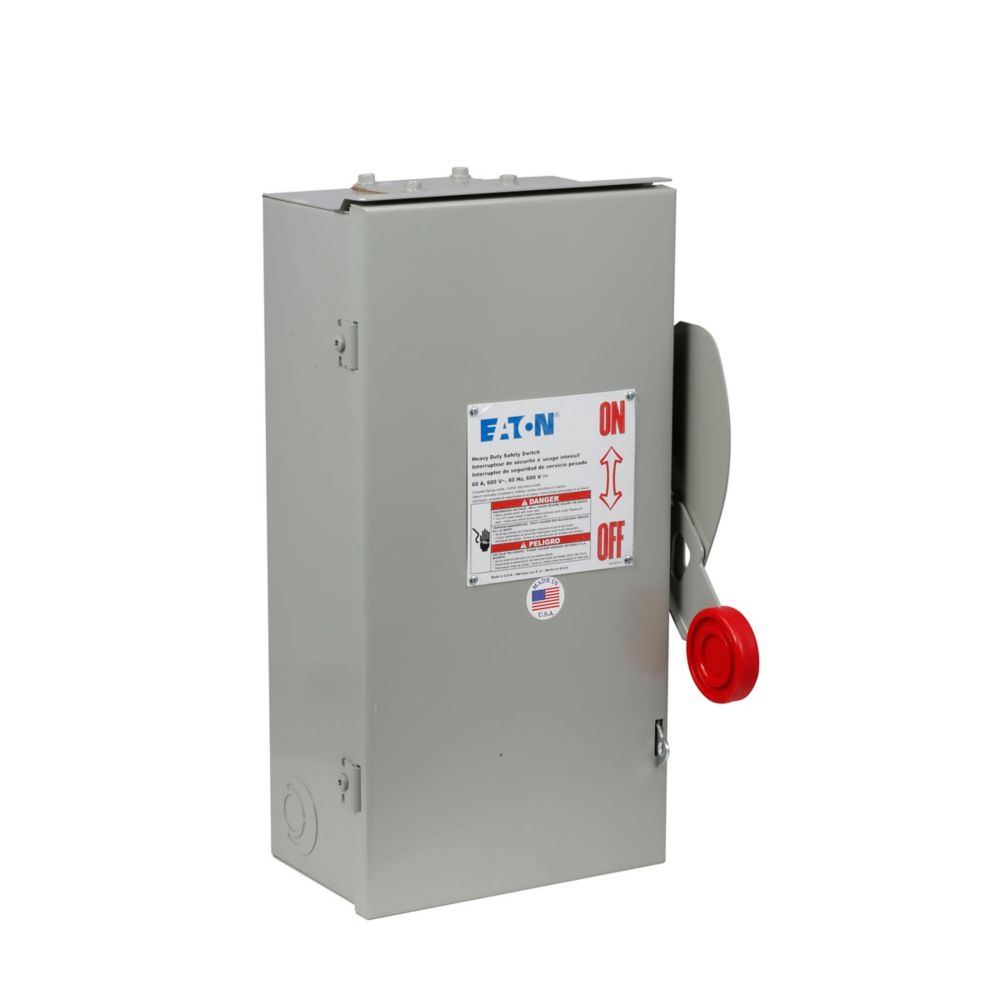

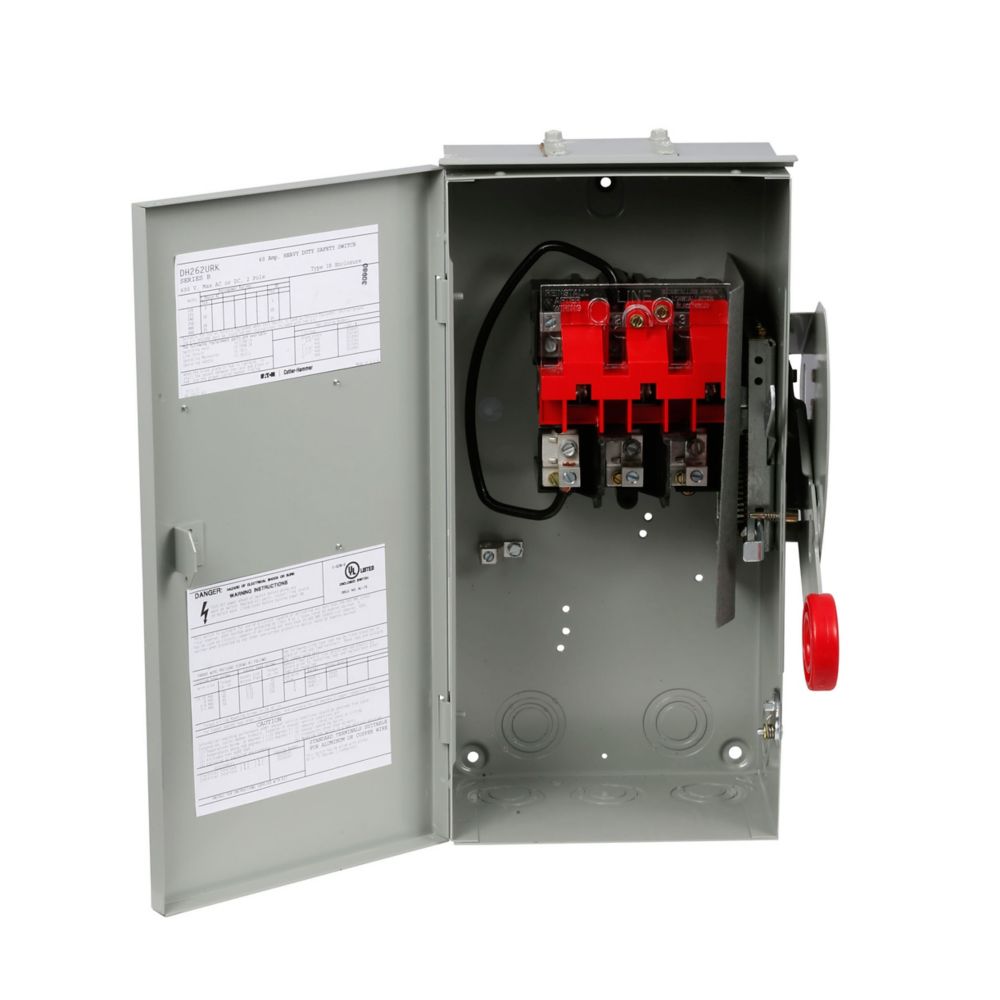

Eaton DH262URK is a heavy-duty non-fusible safety switch designed for reliable circuit disconnect in industrial and commercial power distribution systems. It operates at 600VAC with a 60A current rating and a 3V control voltage, featuring a single-throw, two-pole configuration housed in a rugged NEMA 3R enclosure for outdoor or harsh environments. The switch measures 9.89 inches in depth, 15.81 inches in height, and 8.87 inches in width, weighs 17 lb, and is constructed from painted galvanized steel with a visible blade design for clear position indication. It is UL Listed and compliant with NEC 230.62 (C) barrier requirements, ensuring personnel safety and equipment protection. Typical applications include motor control, HVAC systems, and power distribution where a robust, non-fusible disconnect is required.
Key Features & Specifications
Type: Non-Fusible Safety Switch
Manufacturer: Eaton
Amperage: 60A
Voltage: 600VAC
Poles: 2 Pole
Mounting Type: Surface Mount
Interrupt Rating: 100kA
Series/Frame: DH Series
Enclosure: NEMA 3R
Material: Painted Galvanized Steel
Features: Visible Blade, Time Delay
Dimensions: 9.89 in x 15.81 in x 8.87 in (Length/Depth x Height x Width)
Weight: 17 lb
Voltage Rating: 3V
Certification: UL Listed, NEC 230.62 (C) Compliant Barrier
